8
Install the lower cable manager
Install the service subrack
and upper cable manager
Cable manager

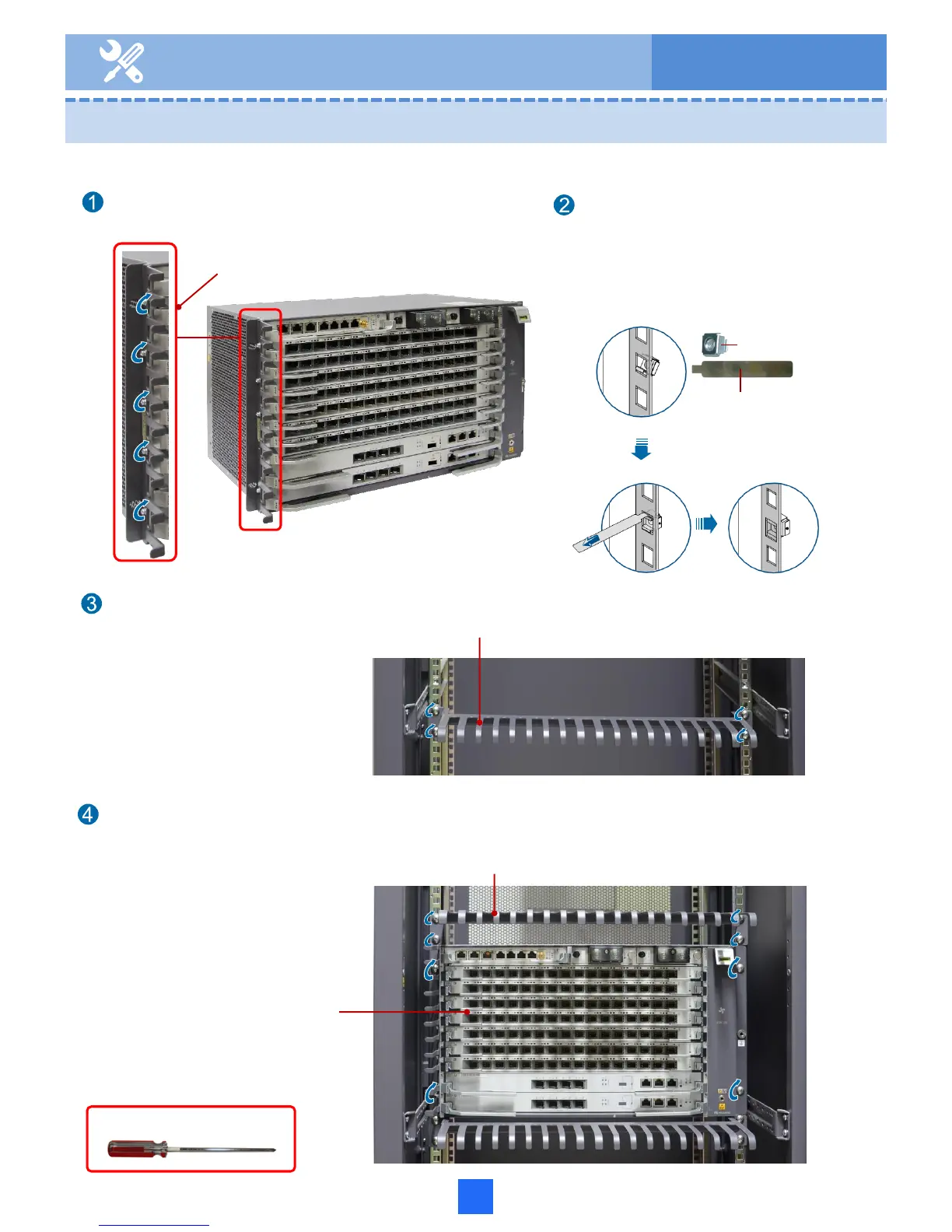

6 Installing the Service Subrack
6.2 Installing the Service Subrack in an IEC Cabinet
Install the cable manager on the left
side of the service subrack
Locate the installation
positions of the cable
manager and service subrack
on the mounting bars, and
install captive nuts at these
positions.
Captive nut
Mounting bar (use a
flat-head screwdriver
if no mounting bar is
available.)
Lower cable manager
Phillips screwdriver
Service subrack
Upper cable manager
To Next Page
