Huawei SmartAX MA5800-X7 - Space Requirements on Third-Party Cabinets; Space for Single MA5800-X7 Subrack

5

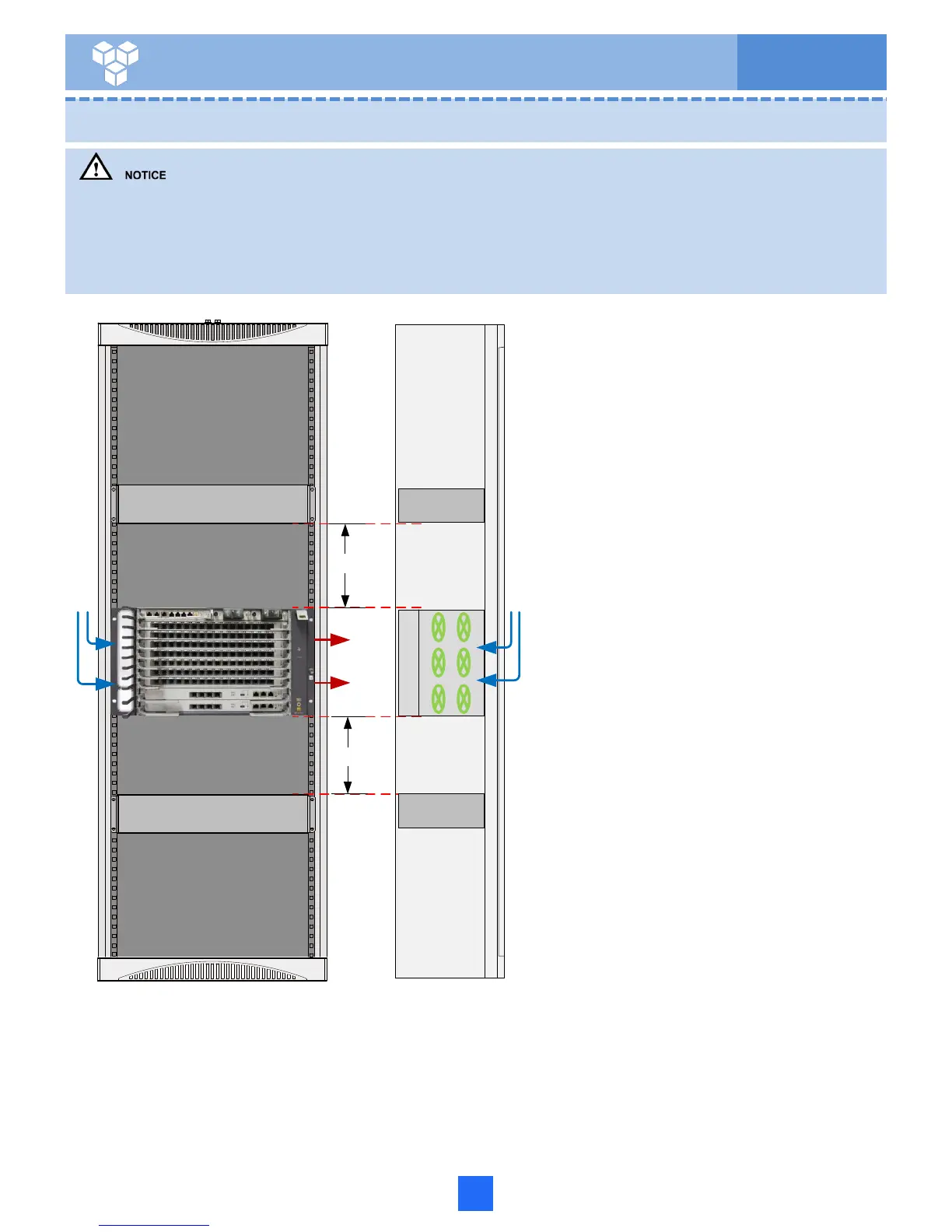

Front view
Side view
Airflow blocking object
Airflow blocking object
4U
4U
• The MA5800-X7 supports left-in right-out heat dissipation, so the cabinet must have an
unblocked air inlet on its door.
• You are advised to reserve more than 4 U space above and under the MA5800-X7
respectively to minimize the impact on other components in the cabinet.
5 Space Requirements on Third-Party Cabinets
5.1 When the Cabinet Accommodates One MA5800-X7 Subrack
