1、The intermediate relay uses a 12 V drive coil, the contact supports 250 V AC @
10 A or higher, and the relay is installed with a base and guide rail.
2、The intermediate relay and external power adapter are congured by the
customer and are not provided by Huawei.
●
Switch-o control test:

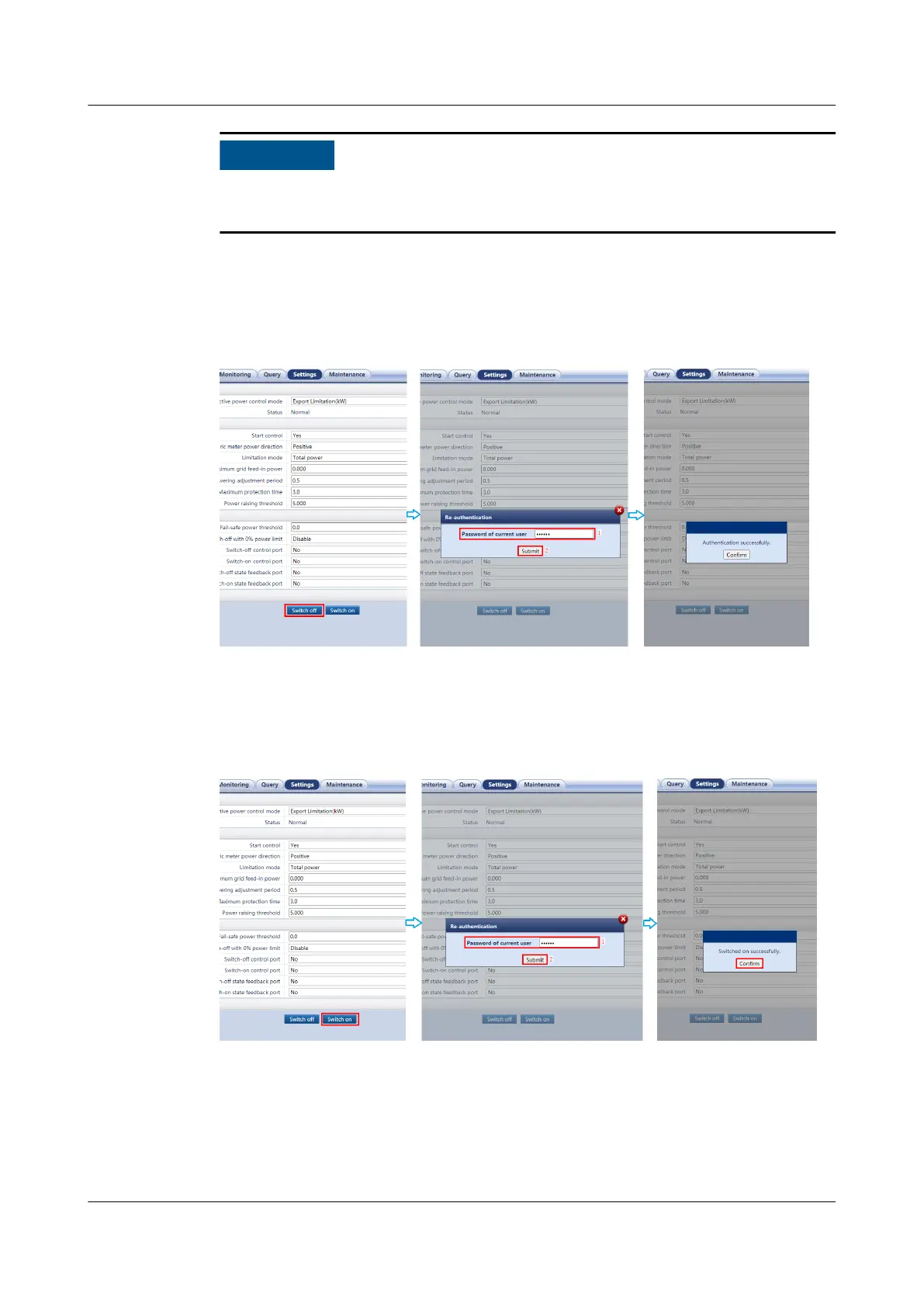

Figure 4-2
After switch-o is complete, check whether the circuit breaker is OFF.
● Switch-on control test:
Figure 4-3
After switch-on is complete, check whether the circuit breaker is ON.
SmartLogger3000
Export Limitation Conguration Guide 4 Circuit Breaker Control
Issue 04 (2022-10-24) Copyright © Huawei Technologies Co., Ltd. 21
