Huawei SmartLogger3000 Configuration Guide

NO TE
● If the connected power meter model is UMG604, PD510, PZ96L, UPM209, or COUNTIS
E43, select the corresponding model in the Intelligent Power Meter Type drop-down
list box.
● When the UPM209 or COUNTIS E43 power meter is connected to the SmartLogger, a
120-ohm resistor needs to be connected to the RS485 bus of the meter. For details, see
the user manual of the power meter.
● COUNTIS E43:Not applicable to Load Imbalance.
● The meter which used for Export Limitation, set the "Meter usage" to "Export +
import meter". Each array allows only one export+import meter to be connected.
3.1.2 Step 2
Conguring Inverter Parameters
If Figure 3-2 does not have Communication disconnection fail-safe and
Communication disconnection detection time and Fail-safe power
threshold.Please refer to Figure 3-3.After the inverter parameters are correctly
congured,then click the Next button.

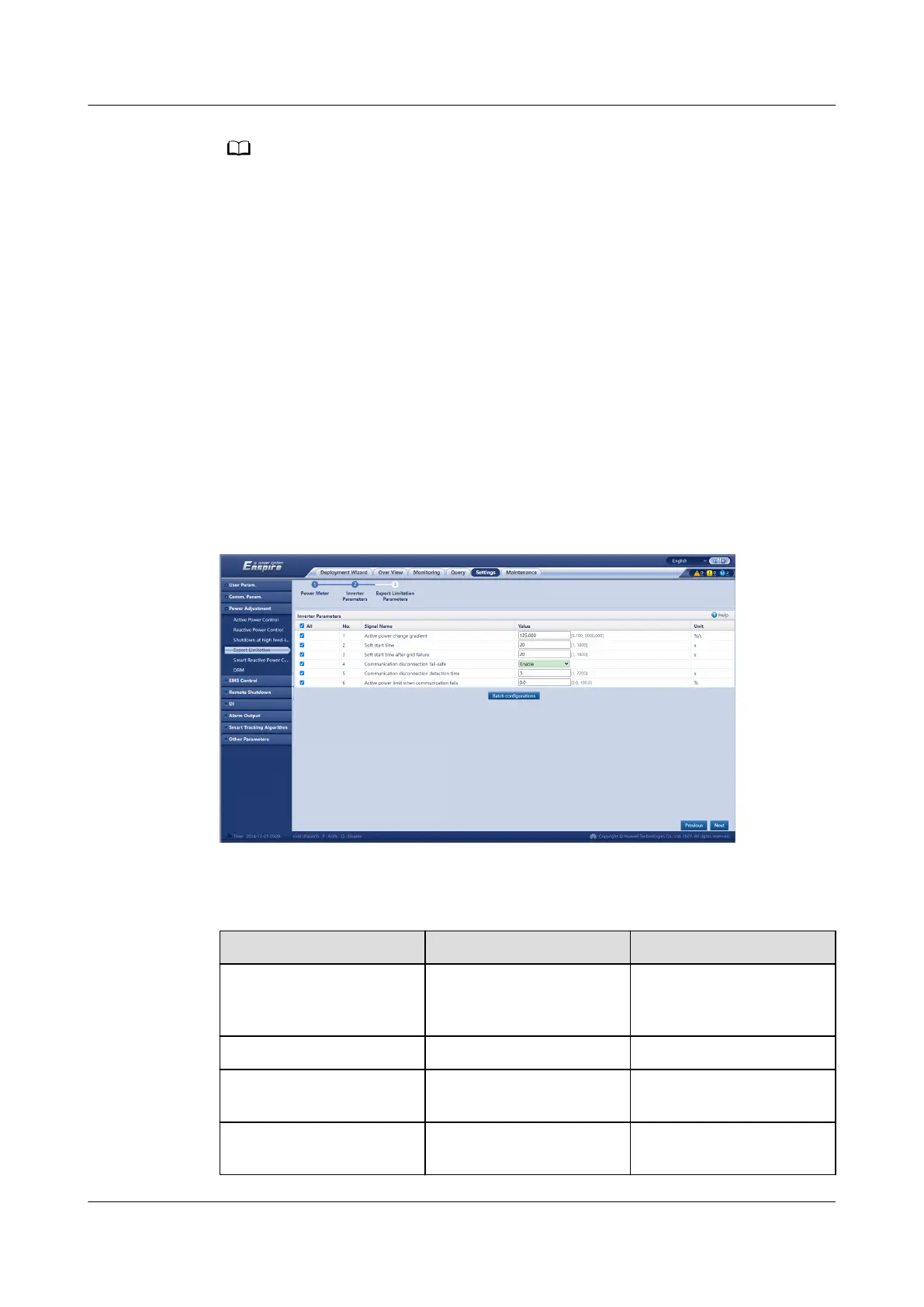

Figure 3-1
The following table lists the recommended parameter settings.
Table 3-1
Parameter
Recommended Value Description
Active power change
gradient
125%/s,If the maximum
value range is 50%/s, set
this parameter to 50%/s.
Soft start time 20
Soft start time after grid
failure
20
Communication
disconnection fail-safe
Enable
SmartLogger3000
Export Limitation Conguration Guide 3 Conguting Export Limitation Feature
Issue 04 (2022-10-24) Copyright © Huawei Technologies Co., Ltd. 6
