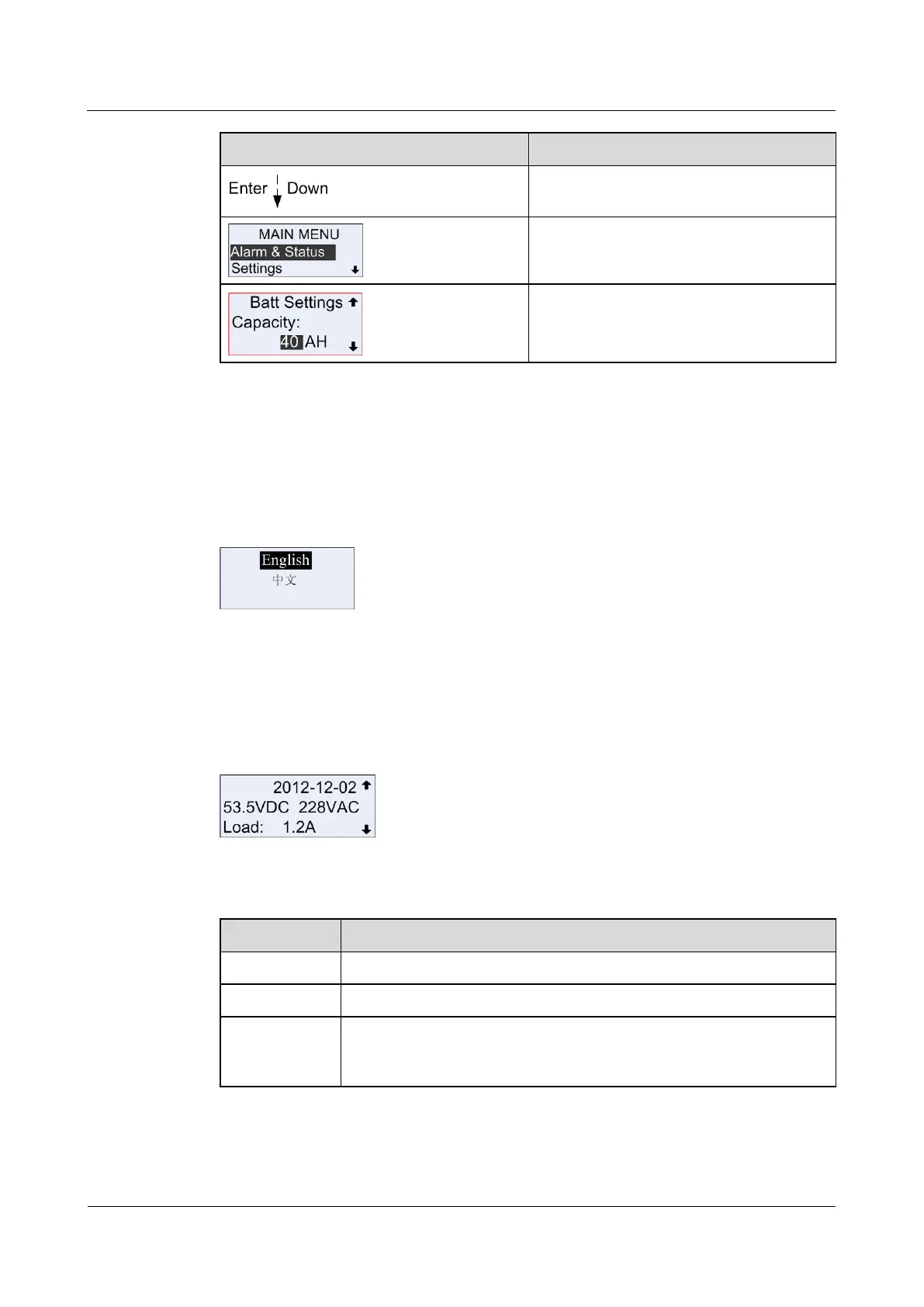

Press the Enter button once and the Down
button more than once.
Picture bordered in black shows menu
items.
Picture bordered in red shows parameters
and values.
Display Language
After powering on the SMU01C, select English by pressing ▲ or ▼ on the LCD, and then
press Enter to enter the standby screen.
Figure 4-2 Selecting a display language
Viewing System Operating Information
You can view real-time information about the AC and DC status and load current on the LCD.
Figure 4-3 Viewing system operating information
Table 4-2 System operating information
AC voltage calculated by rectifiers
Busbar voltage collected in real time
Current that is used for driving loads:
The load current equals the total rectifier output current minus the total
battery current.
