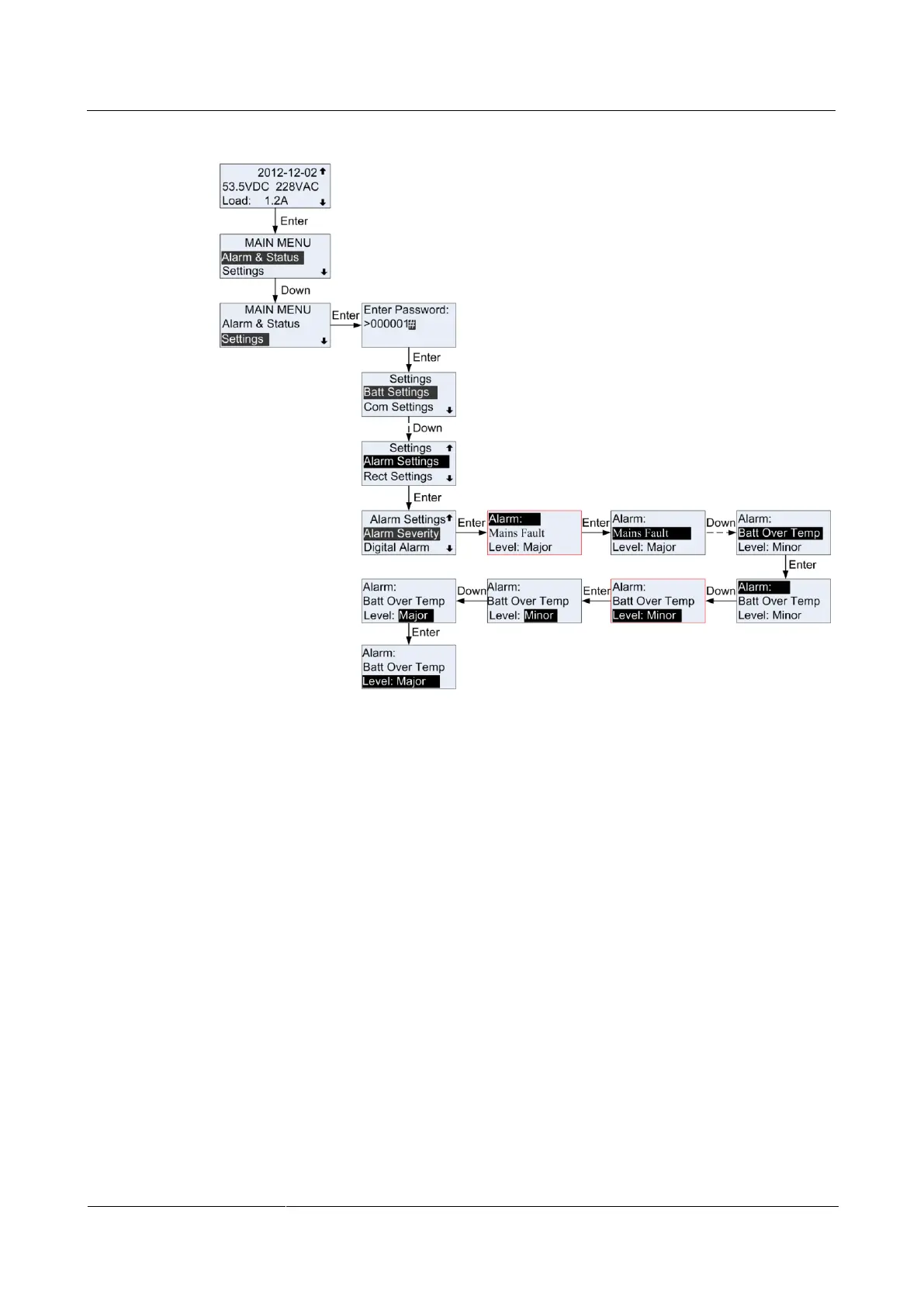

Figure 9-1 Modifying alarm severities
9.1.3 Associating Alarms to Dry Contact Input Ports
The SMU01C provides two dry contact inputs for connecting heaters and air conditioners.
The SMU01C also monitors the running status of devices over the dry contacts.
The following example describes how to connect a heater to the DIN2 port.
Step 1 Figure 9-2 shows how to connect the SMU01C to a heater.
For connecting the signal cables between the SMU01C and the heater, see Figure 9-2.
