Huawei SUN2000-20KTL-M2 Quick Guide

1
1
Product Description
Copyright © Huawei Technologies Co., Ltd. 2020. All
rights reserved.

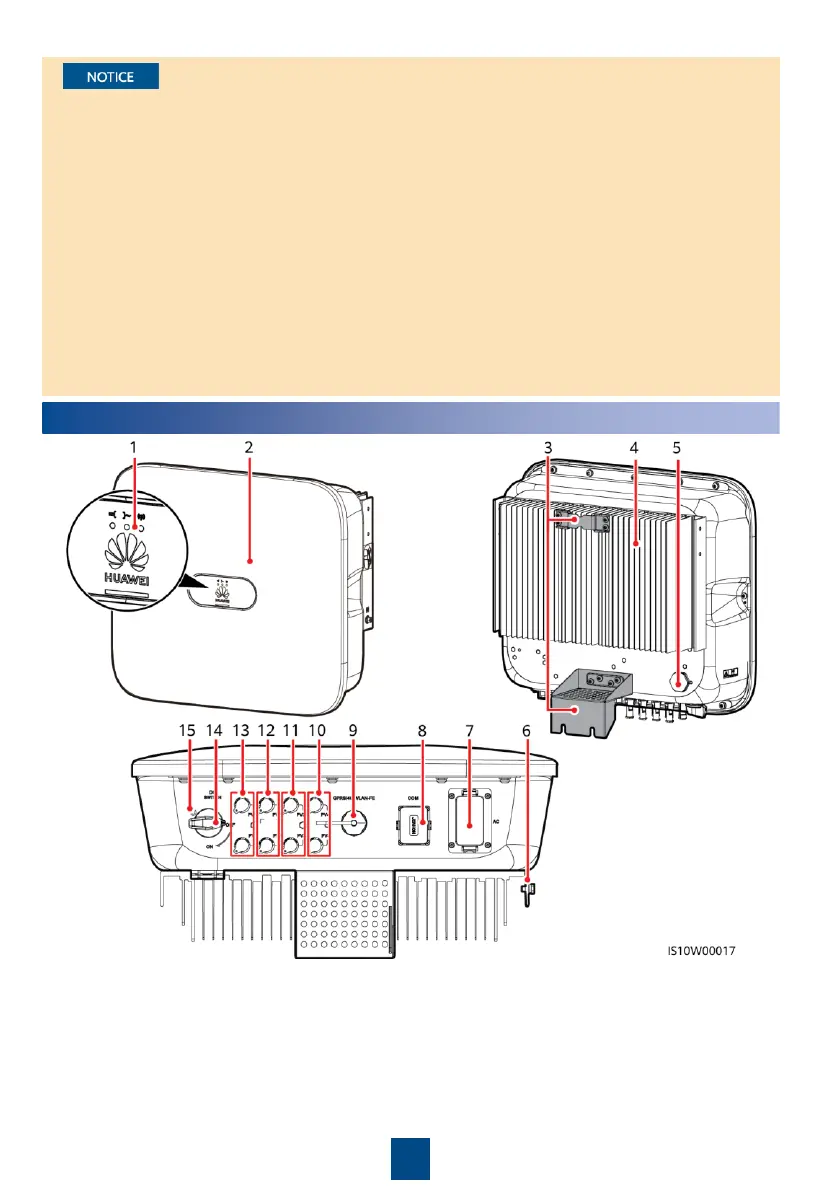

(1) LED
(2) Front panel
(3) Hanging kit
(4) Heat sink
(5) Ventilation valve
(6) Ground screw
(7) AC output port (AC)
(8) Communications port (COM)
(9) Smart Dongle port (
GPRS/4G/WLAN-FE)
(10) DC input terminals (PV4+/PV4
–)
(11) DC input terminals (PV3+/PV3
–)
(12) DC input terminals (PV2+/PV2
–)
(13) DC input terminals (PV1+/PV1
–)
(14) DC switch (DC SWITCH)
(15)
Screw hole for the DC switch (for Australia only)
2. Before installing the device, read the user manual carefully to get familiar with product
information and safety precautions.
3. Only qualified and trained electrical technicians are allowed to operate the device. Operation
personnel should understand the composition and working principles of the grid-tied PV
power system and local regulations.
4. Before installing the device, check that the package contents are intact and complete against
the packing list. If any damage is found or any component is missing, contact your dealer.
5. Use insulating tools when installing the device. For personal safety, wear proper personal
protective equipment (PPE).
6. Huawei shall not be liable for any consequences caused by the violation of the storage,
transportation, installation, and operation regulations specified in this document and the user
manual.
1. The information in this document is subject to change due to version upgrades or other
reasons. Every effort has been made in the preparation of this document to ensure accuracy
of the contents, but all statements, information, and recommendations in this document do
not constitute a warranty of any kind, express or implied. You can download this document
by scanning the QR code.
1
Product Description

Huawei SUN2000-20KTL-M2 Specifications

General

Model	SUN2000-20KTL-M2
Type	String Inverter
Max. efficiency	98.6%
European efficiency	98.3%
Max. input voltage	1100 V
Max. input current per MPPT	26 A
Number of MPPTs	2
Rated output power	20, 000 W
Start Voltage	200 V
MPPT Voltage Range	200 V - 1000 V
Max. AC Power	22, 000 VA
Output Frequency	50 Hz / 60 Hz
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Protection Degree	IP65
Rated AC Voltage	230 V / 400 V
Max. Input Power	30, 000 W
Max. Output Power	22, 000 W
Rated Output Voltage	230 V / 400 V
