Huawei SUN2000-20KTL-M2 Quick Guide

3

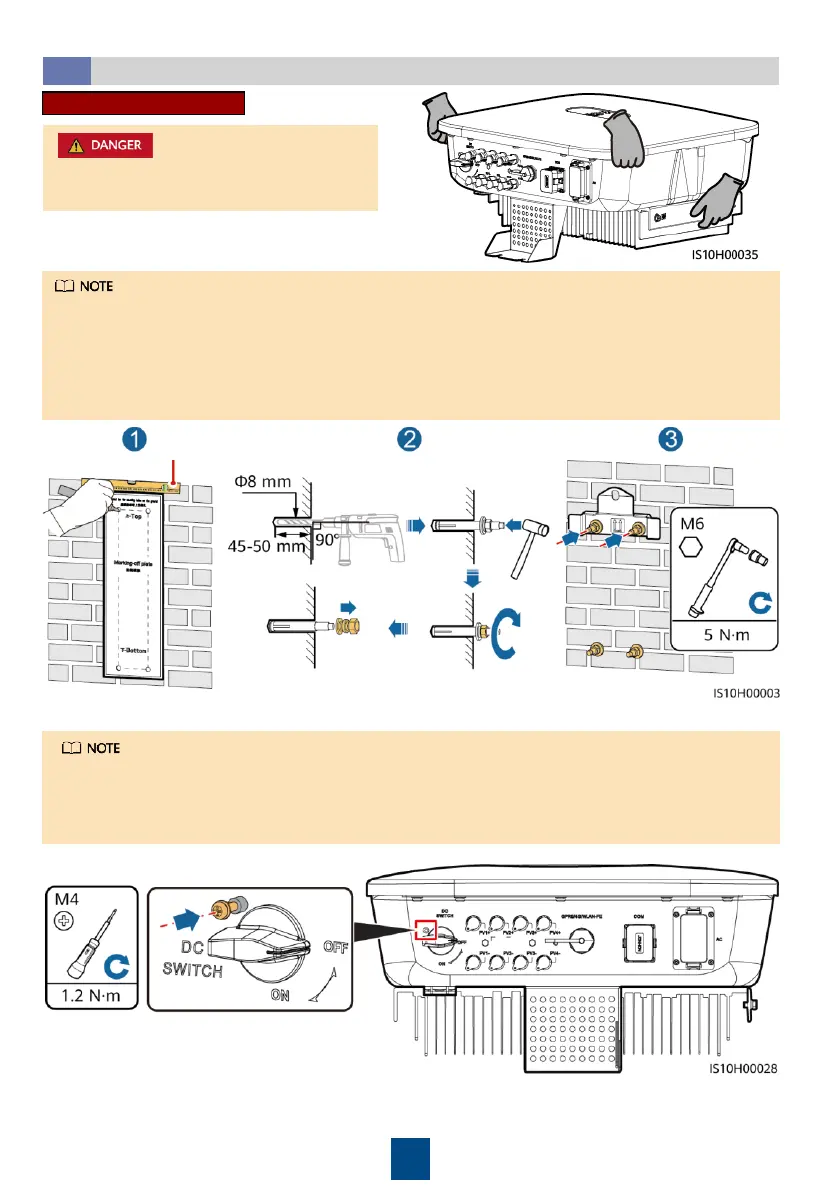

Installing the Inverter
2.2
When drilling holes, avoid the water pipes
and power cables buried in the wall.
1. Install the mounting bracket.
•
M6x60 expansion bolts are delivered with the inverter. If the length and number of the bolts
do not meet installation requirements, prepare M6 stainless steel expansion bolts by yourself.
•
The expansion bolts delivered with the inverter are used for solid concrete walls. For other
types of walls, prepare bolts by yourself and ensure that the wall meets the load bearing
requirements of the inverter.
•
Loosen the nuts, flat washers, and spring washers of the two expansion bolts.
Moving an Inverter
Level
2. (Optional) Install the screw for locking the DC switch.
• The screws for DC switches are delivered with solar inverters. According to Australian
standards, the screws are used to secure DC switches (DC SWITCH) to prevent them from
being turned on by mistake.
• For the model used in Australia, perform this step to meet the local standards.

Huawei SUN2000-20KTL-M2 Specifications

General

Model	SUN2000-20KTL-M2
Type	String Inverter
Max. efficiency	98.6%
European efficiency	98.3%
Max. input voltage	1100 V
Max. input current per MPPT	26 A
Number of MPPTs	2
Rated output power	20, 000 W
Start Voltage	200 V
MPPT Voltage Range	200 V - 1000 V
Max. AC Power	22, 000 VA
Output Frequency	50 Hz / 60 Hz
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Protection Degree	IP65
Rated AC Voltage	230 V / 400 V
Max. Input Power	30, 000 W
Max. Output Power	22, 000 W
Rated Output Voltage	230 V / 400 V
