Huawei SUN2000-20KTL-M5 User Manual

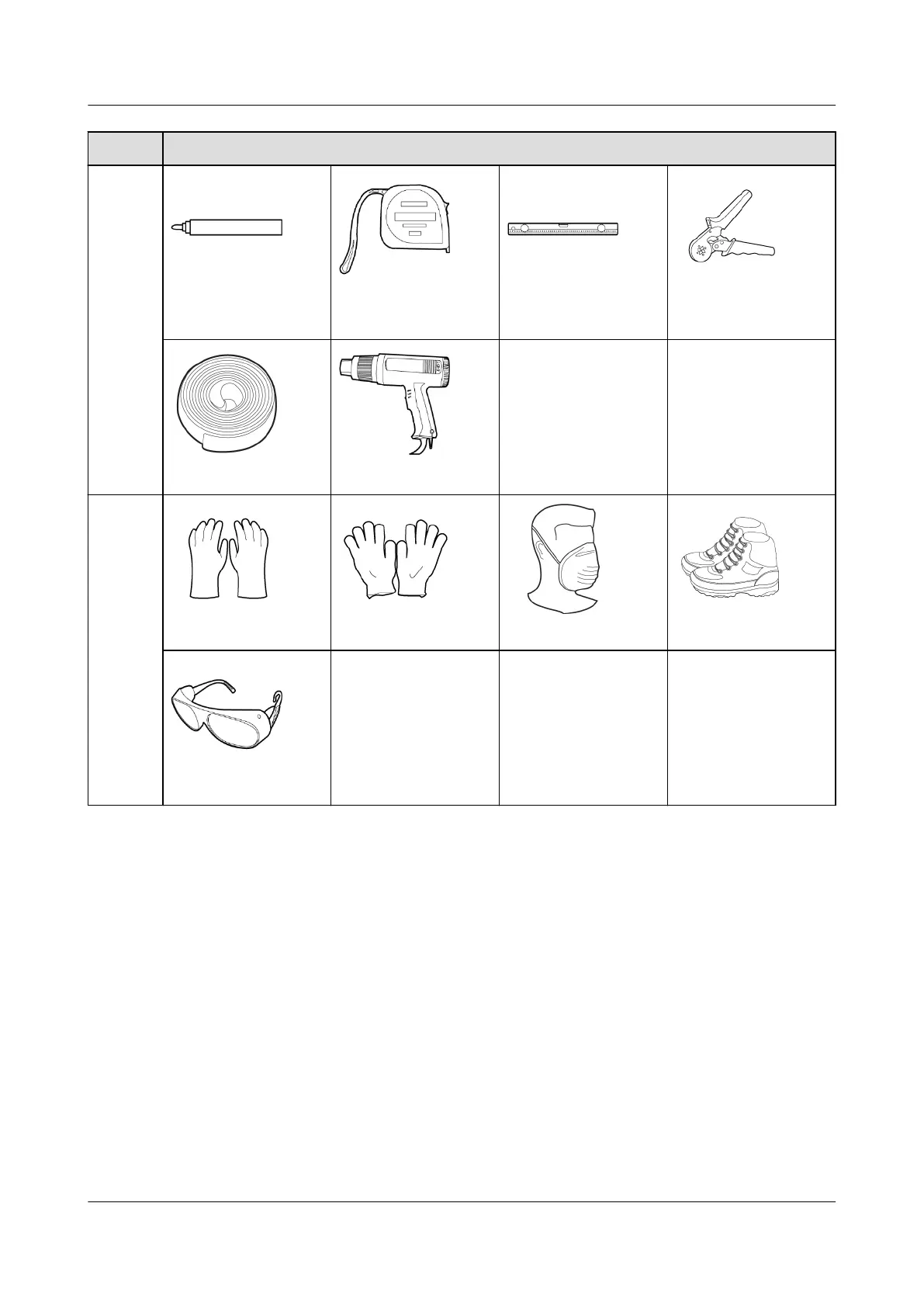

Type Tool
Marker Measuring tape Bubble or digital
level
Cord end terminal
crimper
Heat shrink tubing Heat gun
- -
PPE
Insulated gloves Protective gloves Dust mask
Safety shoes
Safety goggles
- - -
4.3 Determining the Installation Position
4.3.1 Environment Requirements
Basic Requirements
● The inverter is protected to IP66 and can be installed indoors or outdoors.
● Do not install the inverter in an easily accessible place because its enclosure
and heat sinks generate high temperature during operation.
● Do not install the inverter in noise-sensitive areas.
● Do not install the inverter in areas with
ammable or explosive materials.
● Do not install the inverter in a place within children's reach.
SUN2000-(12KTL-25KTL)-M5 Series
User Manual 4 Installation
Issue 03 (2023-02-15) Copyright © Huawei Digital Power Technologies Co., Ltd. 24

Huawei SUN2000-20KTL-M5 Specifications

General

Model	SUN2000-20KTL-M5
Type	String Inverter
Max. DC Voltage	1100 V
Start Voltage	200 V
Nominal Input Voltage	600 V
Max. Input Current per MPPT	26 A
Number of MPPTs	2
Rated AC Power	20000 W
Max. Efficiency	98.6%
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Cooling	Natural convection
Protection Degree	IP66
AC Output Frequency	50 Hz / 60 Hz
Max. DC Input Power	30000 W
Max. Output Power	22000 VA
Nominal Output Voltage	230 Vac / 400 Vac
Rated AC Voltage	400 V / 380 V / 220 V
AC Voltage Range	320 V - 480 V
Dimensions (W x H x D)	525 mm x 470 mm x 262 mm
Max. DC Power	30, 000 W
