Figure 4-14
Installation
----End
Supplementary Notes

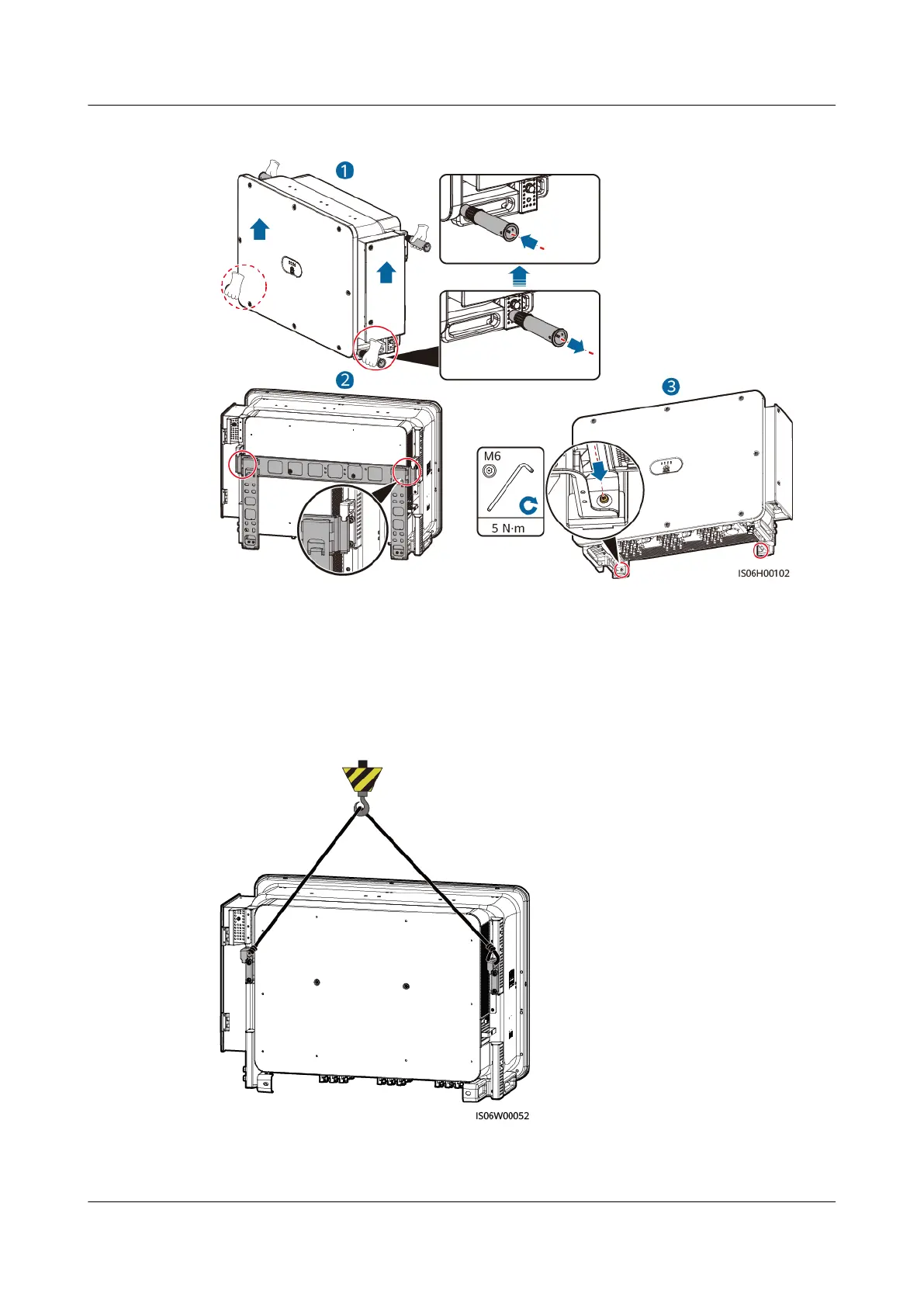

If the inverter is installed in a high position, you can hoist it.
Figure 4-15
Hoisting the inverter
SUN2000-(196KTL
-H0, 200KTL
-H2, 215KTL
-H0)
Series
User Manual
4 Installation
Issue 07 (2021-07-08)
Copyright © Huawei T
echnologies Co., Ltd.
29
35
37
Table of Contents
About this Document
3
Table of Contents
5
1 Safety Information
8
General Safety
8
Personnel Requirements
9
Electrical Safety
10
Installation Environment Requirements
11
Mechanical Safety
11
Commissioning
12
Maintenance and Replacement
13
2 Overview
14
Product Overview
14
Appearance
16
Label Description
19
Product Nameplate
20
Working Principles
21
Circuit Diagram
21
Working Modes
22
3 Solar Inverter Storage
24
4 Installation
26
Checking before Installation
26
Preparing Tools
26
Determining the Installation Position
28
Environment Requirements
28
Space Requirements
29
Installing the Mounting Bracket
31
Support-Mounted Installation
32
Wall-Mounted Installation
33
Installing the Inverter
34
5 Electrical Connections
37
Precautions
37
Crimping an OT or DT Terminal
37
Opening the Maintenance Compartment Door
40
Optional) Replacing the Crimping Module
42
Optional) Installing the Power Cable of the Tracking System
42
Connecting the AC Output Power Cable
43
Installing the DC Input Power Cable
47
Installing the Communications Cable
53
Closing the Maintenance Compartment Door
56
6 System Commissioning
58
Check before Power-On
58
System Power-On
58
7 Man-Machine Interactions
60
Operations with the App
60
App Introduction
60
Downloading and Installing the App
62
Logging in to the App
62
Operations Related to the Advanced User
67
Setting Grid Parameters
67
Setting Protection Parameters
68
Setting Feature Parameters
68
Operations Related to the Special User
72
Setting Grid Parameters
73
Setting Protection Parameters
74
Setting Feature Parameters
76
Setting Power Adjustment Parameters
81
Operations with a USB Flash Drive
84
Exporting Configurations
84
Importing Configurations
86
Exporting Data
87
Upgrading
88
8 Maintenance
90
System Power-Off
90
Power-Off for Troubleshooting
90
Routine Maintenance
92
Replacing a Fan
94
Troubleshooting
97
9 Handling the Inverter
109
Removing the SUN2000
109
Packing the SUN2000
109
Disposing of the SUN2000
109
10 Technical Data
110
A Securing Y-Branch Connectors
114
B String Access Detection
117
C Domain Name List of Management Systems
120
D Acronyms and Abbreviations
121
