Checking the Product and Accessories
After unpacking the SUN2000, check the product and accessories. If any damage is found or
any component is missing, contact the dealer.

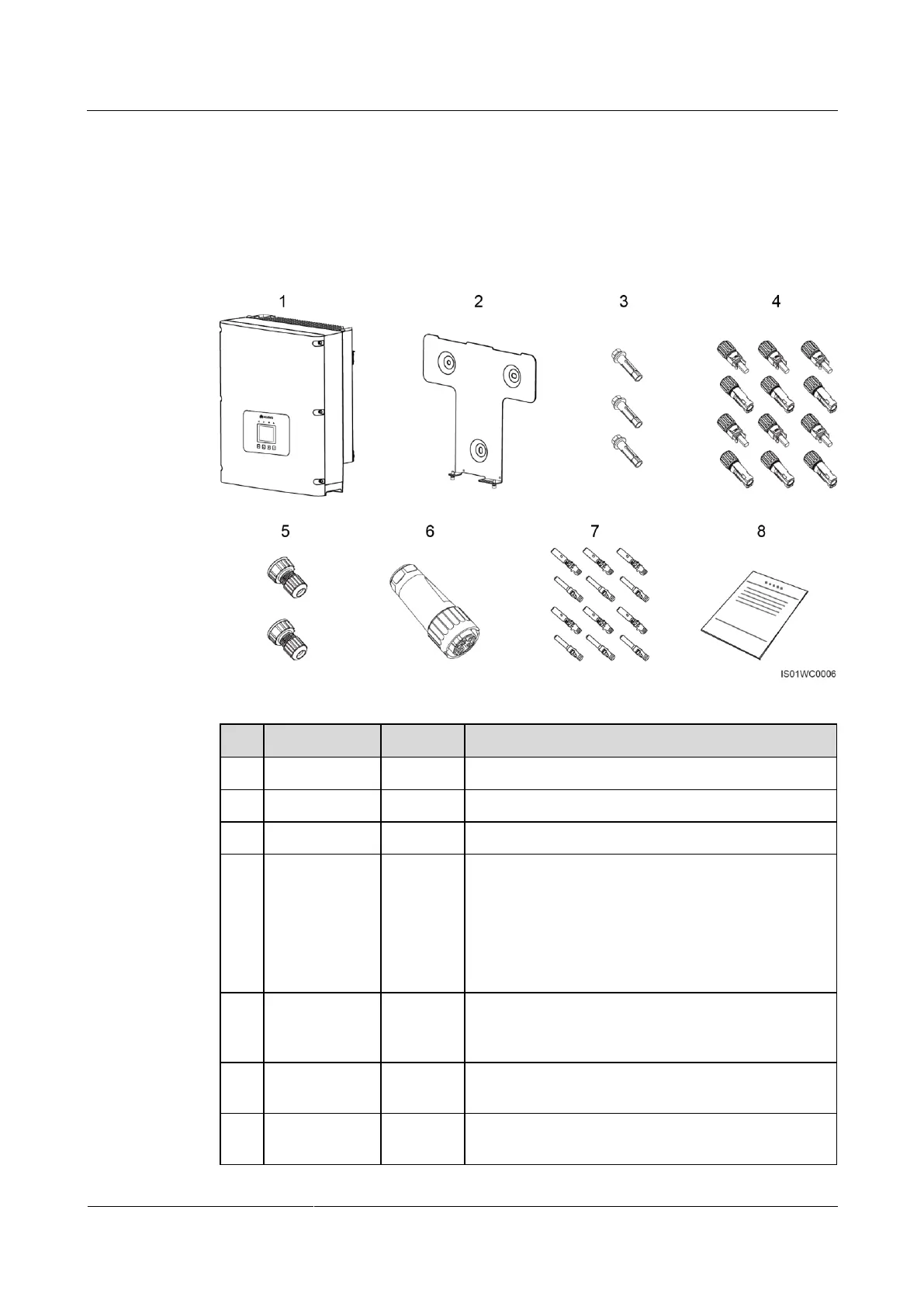

Figure 4-1 shows the product and accessories included in the delivery.
Figure 4-1 Product and accessories
No.
Name
Quantity
Description
1
SUN2000
1
N/A
2
Rear panel
1
N/A
3
Expansion bolt
3
Secures the rear panel to a wall.
4
DC input
connector
8/12
Connects to a DC input power cable.

SUN2000-8KTL/10KTL/12KTL: 8 (4 positive
connectors and 4 negative connectors)

SUN2000-15KTL/17KTL/20KTL/23KTL/28KTL:
12 (6 positive connectors and 6 negative
connectors)
5
Waterproof
RJ45
connector
2
Connects to a communications cable.
6
AC output
connector
1
Connects to an AC output power cable.
7
Metal terminal
8/12
Secures a connector to a DC input power cable.

SUN2000-8KTL/10KTL/12KTL: 8 (4 positive
