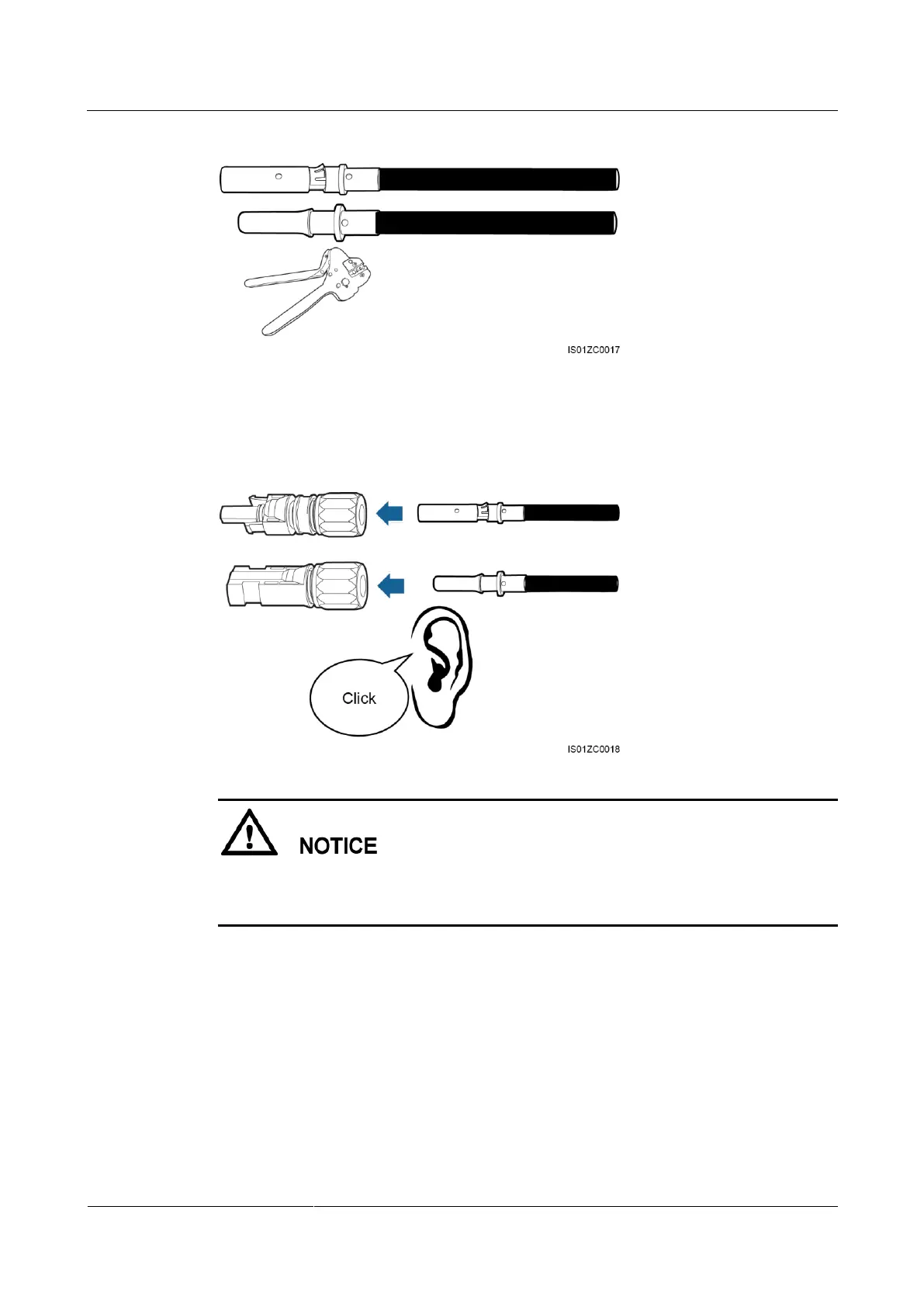

Figure 5-20 Crimping a metal terminal
Step 4 Insert the crimped positive and negative power cables into the corresponding insulation
housings until they snap into place, as shown in Figure 5-21.
Figure 5-21 Engaging metal terminals
After inserting the crimped areas of the positive and negative power cables into the
corresponding insulation housings, ensure that the cables are in position by checking for
resistance when a slight pull is applied.
Step 5 Reinstall cable glands on positive and negative connectors and rotate them against the
insulation covers.
It is recommended that you secure the nut by using removal wrenches, as shown in Figure
5-22.
