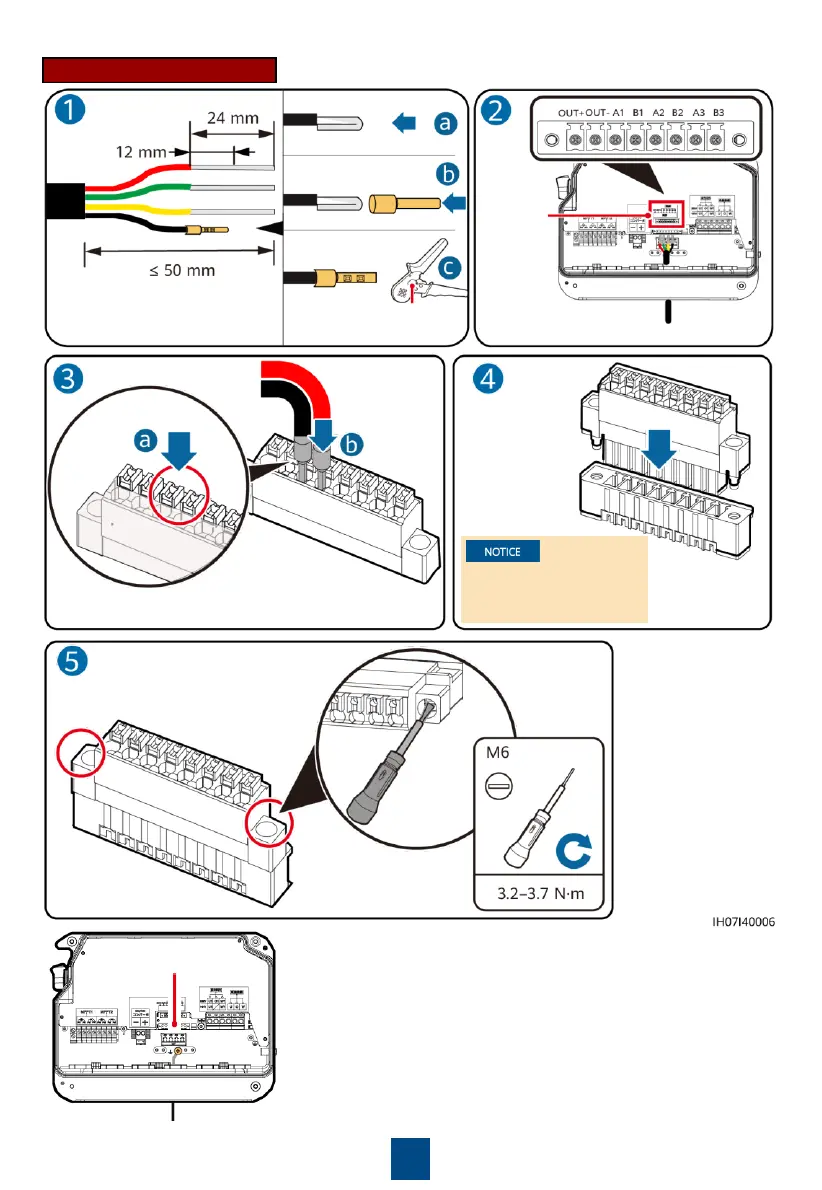

Connecting Signal Cables
Route the cable terminals
into the cable hole.
Insert the
communicatio
ns terminal
into the base.
Secure the connected
communications
terminal using screws
on both sides.
Do not reversely connect
the communications
terminal.
Shield layer
grounding
12
Recommended:
CRIMPFOX 10S
