Huawei SUN2000-5KTL-L1 Quick Guide

9

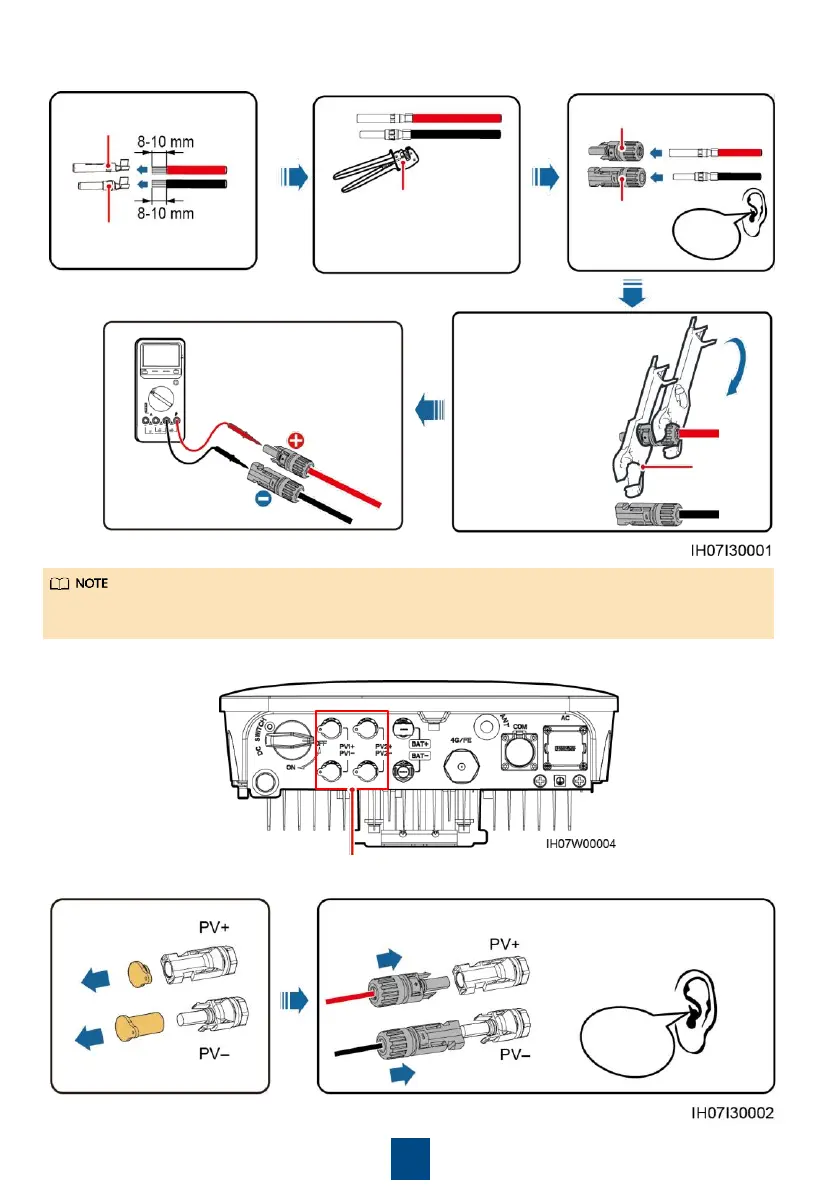

1. Assemble DC connectors.
Click
Positive metal terminal
Negative
metal terminal
Ensure that the cable
cannot be pulled out
after being crimped.
Positive connector
Negative
connector
Use the wrench
shown in the
figure to tighten
the locking nut.
When the
wrench slips
during the
tightening, the
locking nut has
been tightened.
Ensure that cable
polarities are correct.
DC input terminals
Click
Pull the DC input power
cable back to ensure that
it is connected securely.
2. Connect DC input power cables.
PV-CZM-22100
13001462
If the PV strings are configured with optimizers, refer to the Smart PV Optimizer Quick Guide to
check the cable polarity.

Huawei SUN2000-5KTL-L1 Specifications

General

Model	SUN2000-5KTL-L1
Max. Efficiency	98.4%
Rated AC Output Power	5000 W
Operating Temperature Range	-25°C to +60°C
Topology	Transformerless
Max. apparent AC power	5500 VA
Max. input voltage	600 V
Number of MPPT trackers	2
Max. short-circuit current per MPPT	15 A
Protection degree	IP65
Max. Input Power	7500 W
Output Frequency	50 Hz / 60 Hz
Cooling Method	Natural Convection
Nominal AC voltage	230 V
AC voltage range	180 V - 280 V
Rated Output Voltage	230 V
