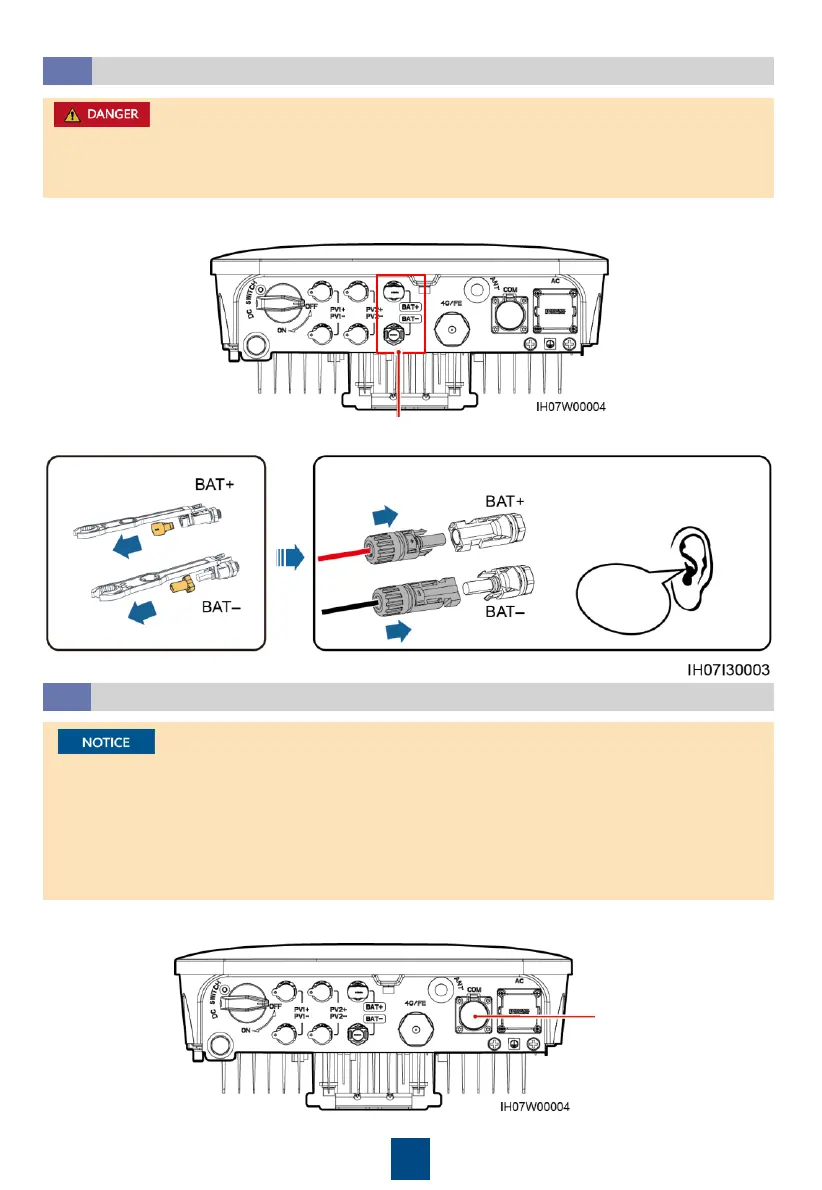

(Optional) Installing Battery Cables
3.6
Properly keep the
watertight caps.
Pull the battery cable
back to ensure that it is
connected securely.
Battery terminals (BAT+/BAT–)
Assemble the positive and negative connectors by following the instructions in section 3.5
"Installing DC Input Power Cables."
• Use insulated tools when connecting cables.
• Connect battery cables with correct polarity. If battery cables are reversely connected, the solar
inverter may be damaged.
Click
(Optional) Installing Signal Cables
3.7
• When laying out a signal cable, separate it from power cables to avoid strong signal
interference.
• Ensure that the protective layer of the cable is inside the connector, that excess core wires are
cut off from the protection layer, that the exposed core wire is totally inserted into the cable
hole, and that the cable is connected securely.
• Block the unused cable hole using a cap and tighten the cable gland.
• If more than one signal cables are required, ensure that they have the same outer diameter.
COM port (COM)

Huawei SUN2000-5KTL-L1 Specifications

General

Model	SUN2000-5KTL-L1
Max. Efficiency	98.4%
Rated AC Output Power	5000 W
Operating Temperature Range	-25°C to +60°C
Topology	Transformerless
Max. apparent AC power	5500 VA
Max. input voltage	600 V
Number of MPPT trackers	2
Max. short-circuit current per MPPT	15 A
Protection degree	IP65
Max. Input Power	7500 W
Output Frequency	50 Hz / 60 Hz
Cooling Method	Natural Convection
Nominal AC voltage	230 V
AC voltage range	180 V - 280 V
Rated Output Voltage	230 V
