TP48200A-DT19C1, TP48200A-DT19C2,
TP48200A-HT19C1 and TP48200A-HT19C2 Telecom
Power
User Manual
Copyright © Huawei Technologies Co., Ltd.

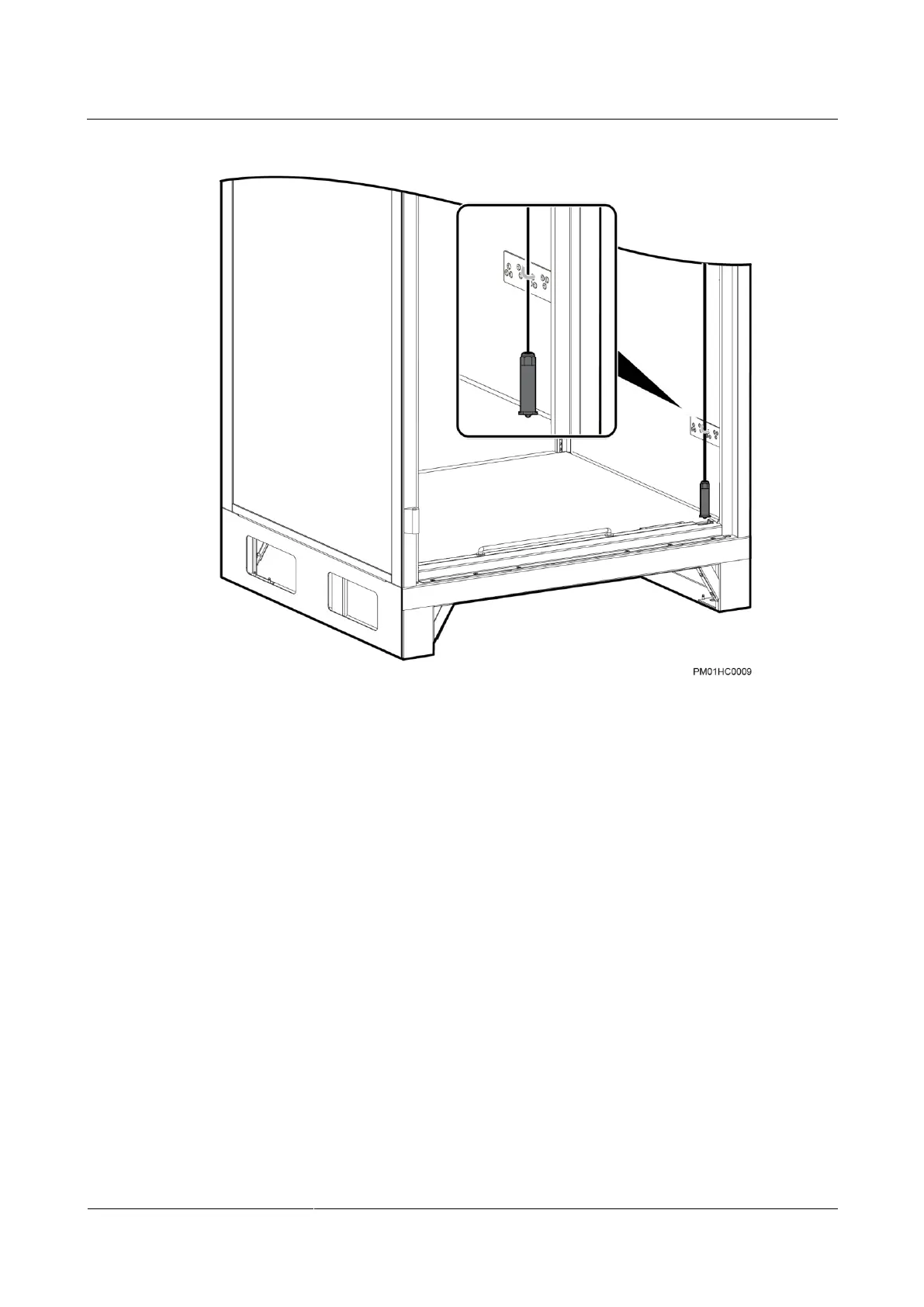

Figure 4-34 Position of the water sensor
Step 4 Properly place the new water sensor and bind it securely with a cable tie, ensure that the
sensor is 5 mm to 10 mm away from the cabinet bottom.
Step 5 Reconnect the water sensor cable to the UIM.
Step 6 Disconnect the ground cable from the ESD wrist strap, and take off the ESD wrist strap and
ESD gloves.
----End
