Huawei Telecom Power TP48200A-DT19C2 - Page 112

TP48200A-DT19C1, TP48200A-DT19C2,
TP48200A-HT19C1 and TP48200A-HT19C2 Telecom
Power
User Manual
E Cables Connection of TCUA Control Board
Issue 03 (2019-11-15)
Copyright © Huawei Technologies Co., Ltd.
105
(4) Power input port
(5) Communication port
(6) TEC temperature sensor
port

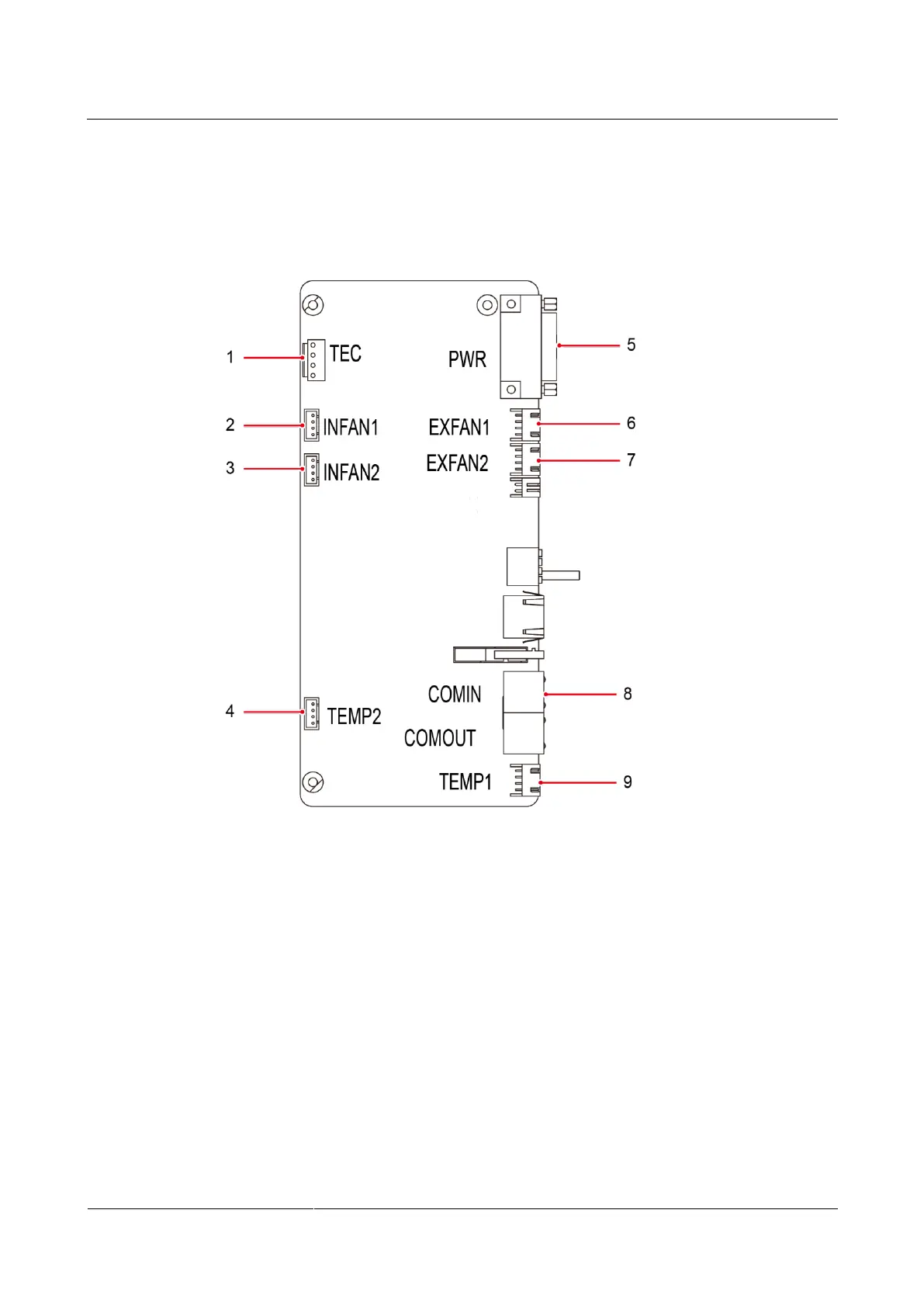

Figure E-2 Cables Connection of TCUA Control Board (TP48200A-HT19C1 & HT19C2)
(1) TEC refrigeration chip
port
(2) TEC internal
circulation fan port
(3) TEC external circulation
fan port
(4) Heat exchanger extra
temperature sensor port
(5) Power input port
(6) Heat exchanger internal
circulation fan port
(7) Heat exchanger external
circulation fan port
(8) Communication port
(9) TEC extra temperature
sensor port
