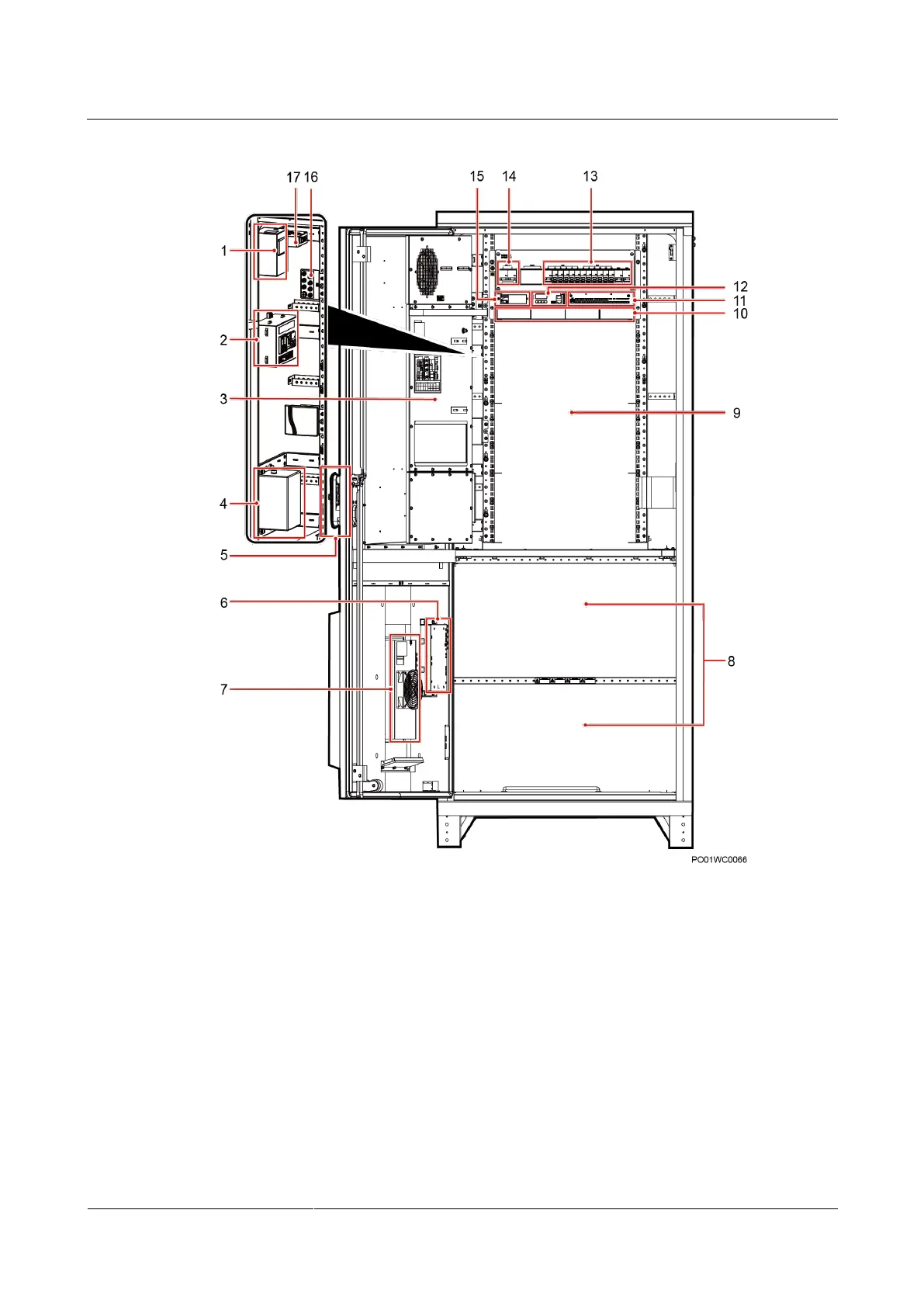

Figure 3-4 TP48200A-HT19C2 interior
(1) (Optional) Intelligent
electric meter
(2) (Optional) Maintenance socket
(3) Heat exchanger
(HXC70S)
(4) (Optional) Bluetooth
controller
(5) (Optional) Electric door lock
(6) TCUA control box
(7) TEC
(8) Space for installing batteries
(9) Space for installing
customer equipment
(10) Space for installing
rectifiers
(11) UIM
(12) SMU
(13) DC PDU
(14) AC input circuit breaker
(15) Battery switch
(16) Cabinet ground bar
(17) (Optional) Current
transformer
