TP48200A-DT19C1, TP48200A-DT19C2,
TP48200A-HT19C1 and TP48200A-HT19C2 Telecom
Power
User Manual
Copyright © Huawei Technologies Co., Ltd.

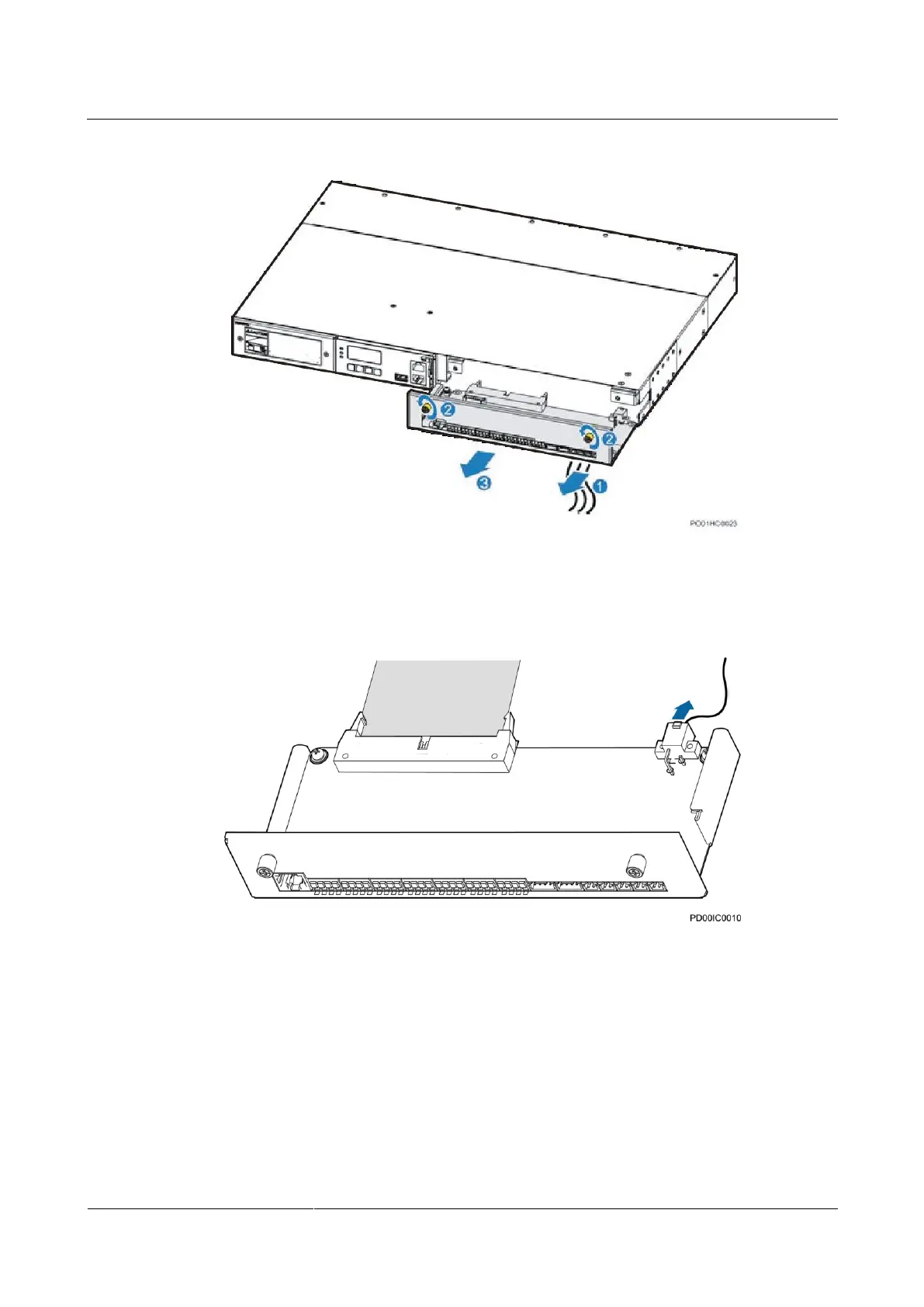

Figure 4-8 Taking out the main board of UIM02C
Step 4 Remove the –48 V power cable from the PCB of UIM02C.
Figure 4-9 Removing the –48 V power cable
Step 5 Record the positions where the PCB of UIM02C connects to all the cables, and then
disconnect the cables.
Step 6 Remove the PCB, as shown in Figure 4-10.
