TP48200A-DT19C1, TP48200A-DT19C2,
TP48200A-HT19C1 and TP48200A-HT19C2 Telecom
Power
User Manual
Copyright © Huawei Technologies Co., Ltd.

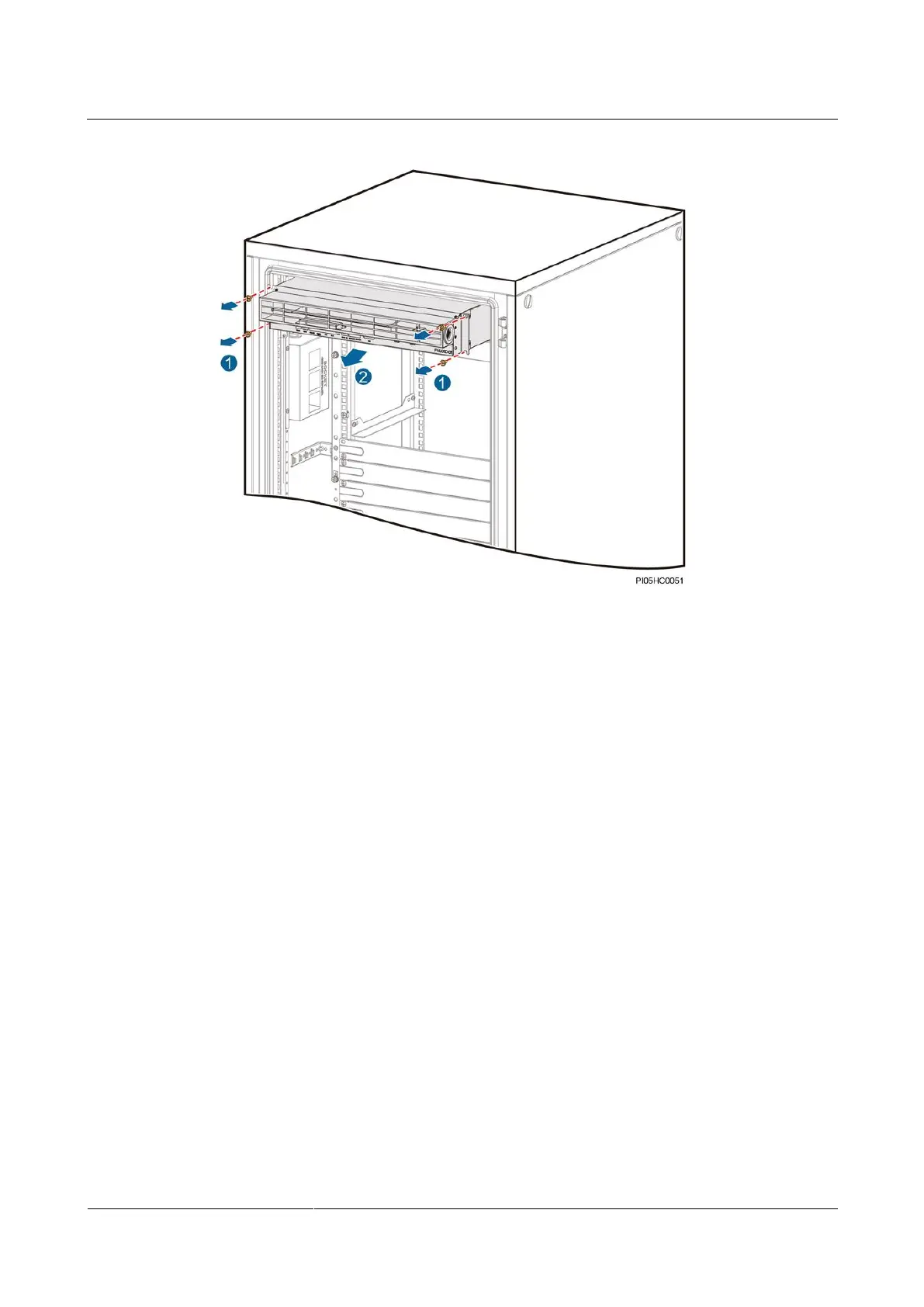

Figure 4-17 Taking out the fan assembly
Step 4 Remove the fan.
1. Unscrew and remove the cover from the fan assembly.
2. Unscrew the fan fixing plate and remove the plate from the fan, as shown in Figure 4-18.
3. Unscrew and remove the fan, as shown in Figure 4-19.
