TP48200A-DT19C1, TP48200A-DT19C2,
TP48200A-HT19C1 and TP48200A-HT19C2 Telecom
Power
User Manual
Copyright © Huawei Technologies Co., Ltd.

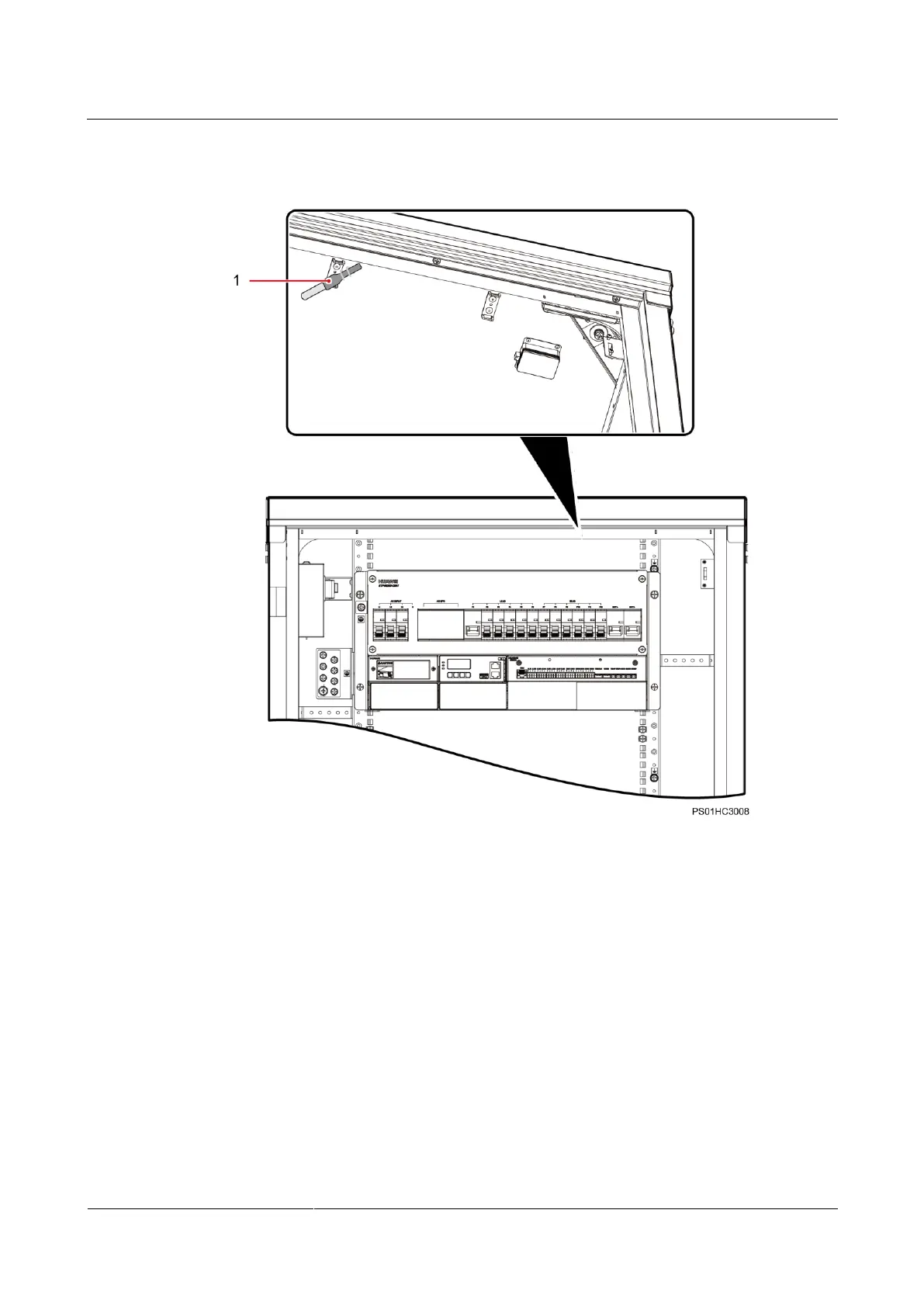

Figure 4-32 Position of the temperature sensor in the equipment compartment (for the
TP48200A-HT19C1 & HT19C2)
(1) Temperature sensor for the equipment compartment
Step 4 Properly place the new temperature sensor in the equipment compartment and bind it securely
with a cable tie.
Step 5 Reconnect the temperature sensor cable to the UIM.
Step 6 Disconnect the ground cable from the ESD wrist strap, and take off the ESD wrist strap and
ESD gloves.
----End
