UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

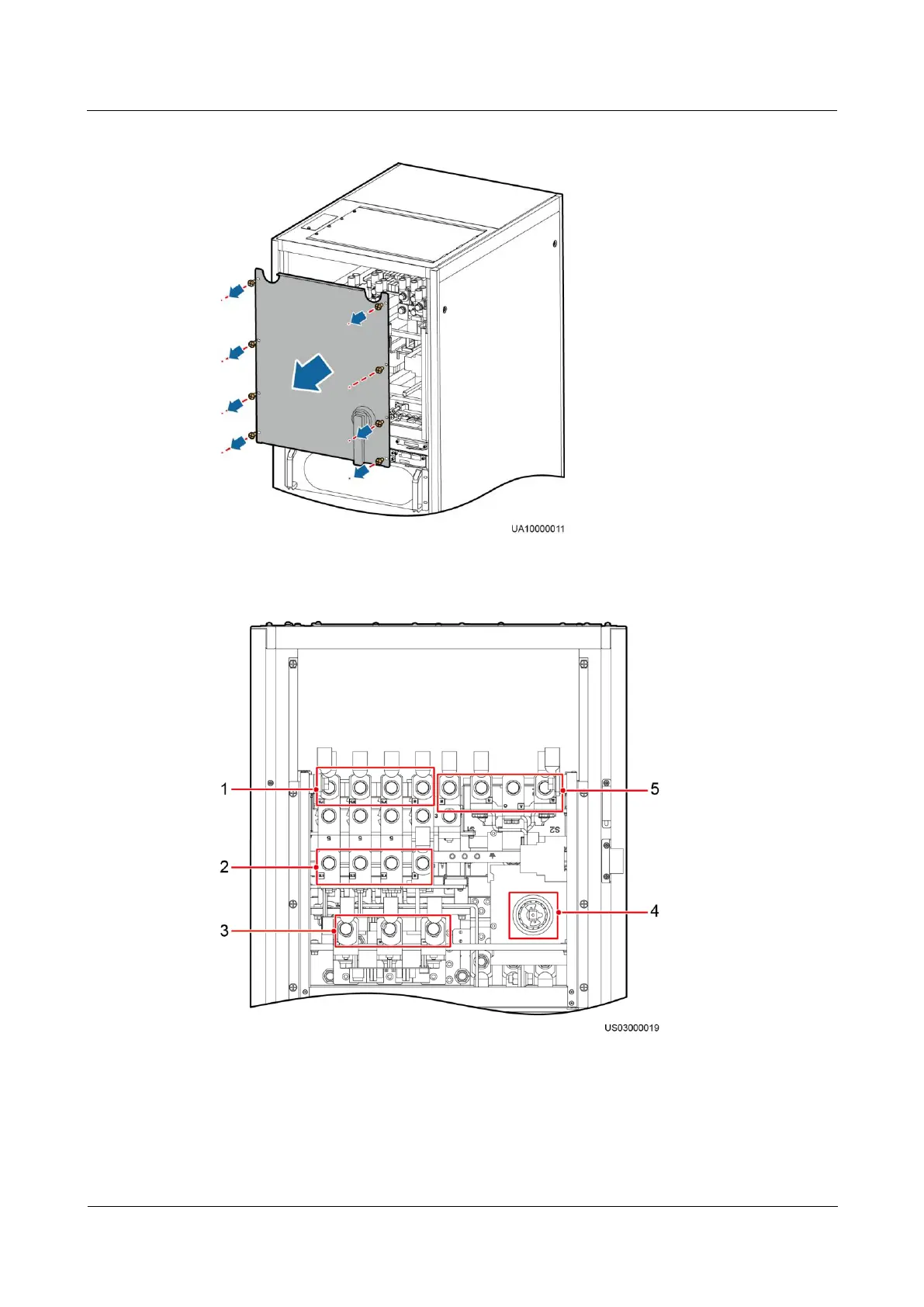

Figure 3-71 Removing the cover
Figure 3-72 Copper bar positions
(1) Mains input terminals
(1L1–1L3, N)
(2) Bypass input terminals
(2L1–2L3, N)
(3) Battery input
terminals (+, N, –)
(4) Maintenance bypass
switch
(5) Output terminals (U, V,
W, N)
To Next Page
