Item
Description
MUE07A
DO_1 Action
Control the status of the DO_1 dry contact on the MUE07 extended dry
contact card.
MUE07A
DO_2 Action
Control the status of the DO_2 dry contact on the MUE07 extended dry
contact card.
MUE07A
DO_3 Action
Control the status of the DO_3 dry contact on the MUE07 extended dry
contact card.
MUE07A
DO_4 Action
Control the status of the DO_4 dry contact on the MUE07 extended dry
contact card.
MUE07A
DO_5 Action
Control the status of the DO_5 dry contact on the MUE07 extended dry
contact card.

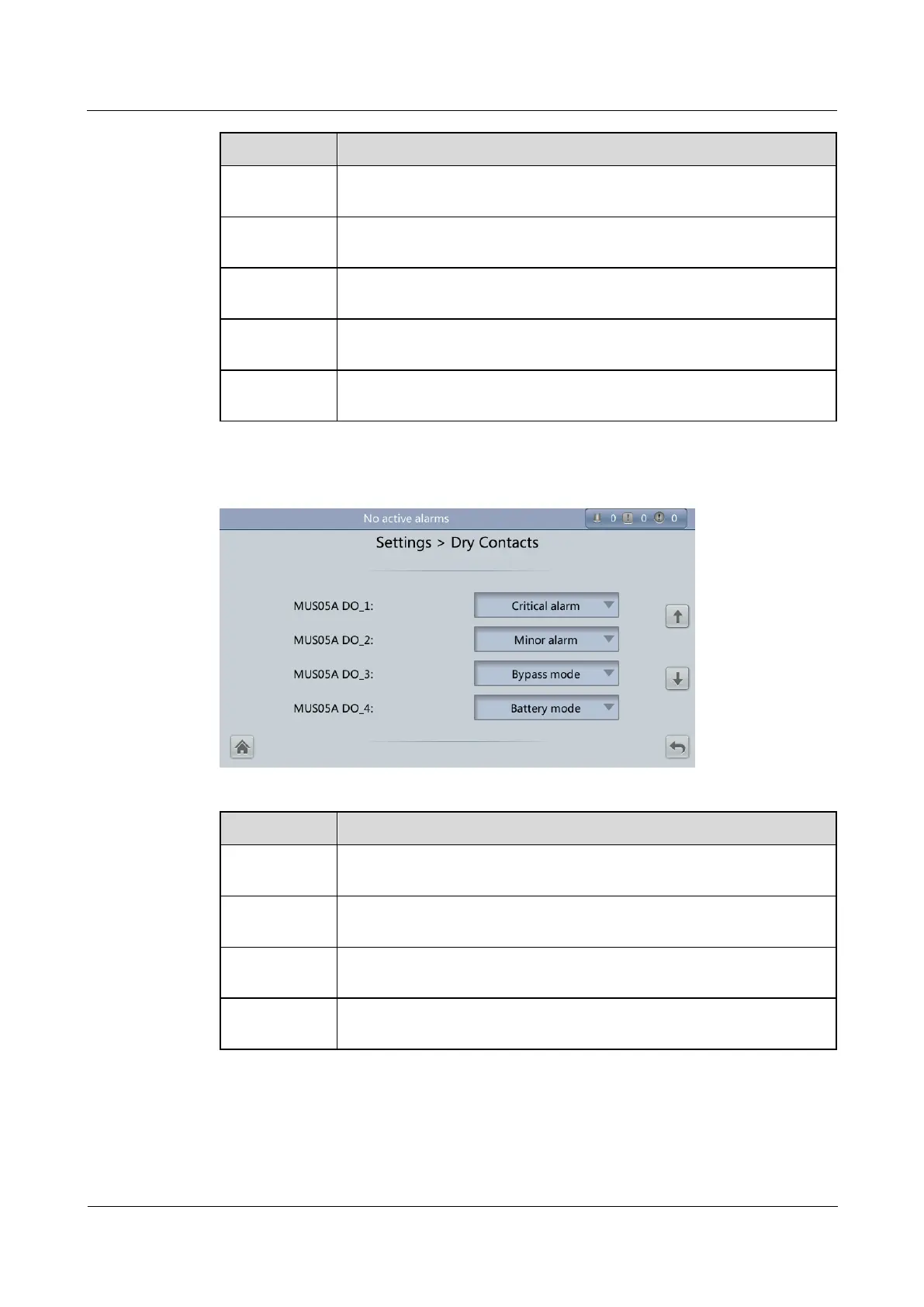

Figure 4-52 Dry Contacts screen 5
Item
Description
MUS05A
DO_1
Corresponds to signal of the output dry contact DO_1 on the MUS05A.
MUS05A
DO_2
Corresponds to signal of the output dry contact DO_2 on the MUS05A.
MUS05A
DO_3
Corresponds to signal of the output dry contact DO_3 on the MUS05A.
MUS05A
DO_4
Corresponds to signal of the output dry contact DO_4 on the MUS05A.
