Huck 2012 Series - Subassembly Parts and Notes

2012 series Tooling (HK969) Alcoa Fastening Systems
21
3
3
For available assemblies,
see
Subassembly Part Numbers
and Notes below.
125116
Guard
505438 O-ring
100309 Bleed Plug
506576 Plug &
Gasket Assembly

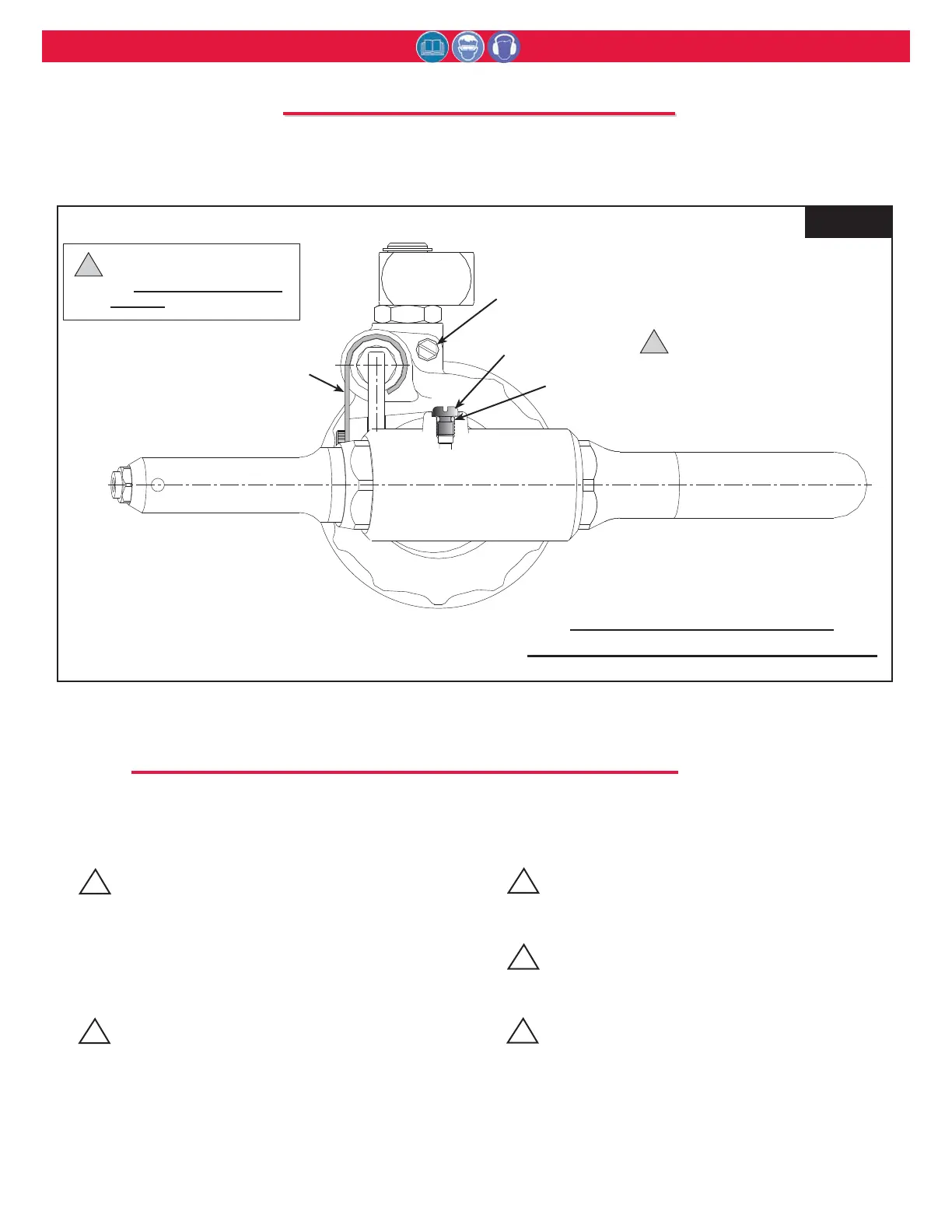

Figure 11
Swivel Bolt Subassembly
Fill Plug and O-ring Subassembly
1 123775 Front Gland Assembly contains:
123757 Front Gland
500816 O-ring
501110 Back-up Ring
505818 Polyseal
122432 Gland Cap
505817 Wiper
2 123777-2 Air Piston and Rod Assy contains:
123776-1 Air Piston Assembly
111803-1 Piston Rod
506493 Washer
505420 Self-locking Nut
3 104293 Bleed Plug Assembly contains:
100309 Bleed Plug
505438 O-ring
4 123778-1 Cylinder Head Assy contains:
111959-2 Cylinder Head
500864 O-ring
5 125472-2 Throttle Valve Assembly contains:
125467-2 Throttle Valve
507396 O-rings (qty. 3)
NOTE: Install cups of POLYSEALS positioned as
shown. Position wipers as shown.
SUBASSEMBLY PART NUMBERS AND NOTES
Some parts are available separately as well as in subassemblies. Refer to Assembly
Drawings on the previous and following pages for these parts listed below.
T
T
OOL
OOL
A
A
SSEMBLY
SSEMBLY
D
D
RAWINGS
RAWINGS
(pages 16-22)
