2012 series Tooling (HK969) Alcoa Fastening Systems
23
A
A
CCESSORIES
CCESSORIES
Pintail Collection Bag:
>Tailor made to fit the tool
>Made from tough, lightweight material.
>Fits over the Pintail Deflector.
>Velcro closure for secure fit /easy removal.
125652 Pintail Collection Bag
Accessory Spring:
124447 Suspension Spring (Figure 12)
Assembly Tools:
124090-2 Stall Nut Assembly
123110-4 Assembly Tool Kit Includes:
121694-202 POLYSEAL Insertion Tool
123111-4 Piston Assembly Tool
123112-3 Spacer
Service Kits:
2012KIT Seals kit for 2012 and 2012B
2012VKIT Seals kit for 2012V

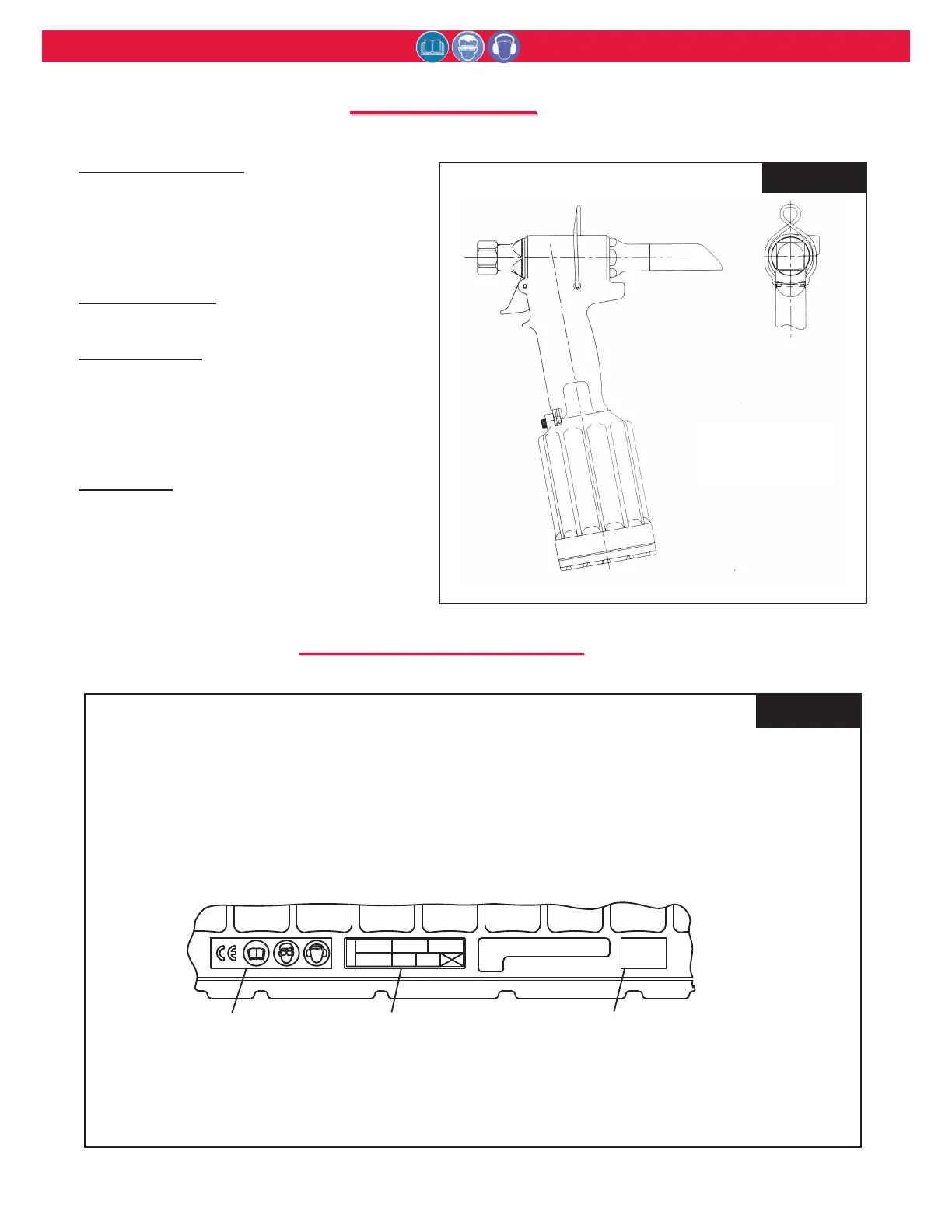

Figure 14
2012 with
Suspension
Spring, 124447
These Stickers are located at the bottom of Cylinder Assy 125471
and MUST be ordered and placed in these locations if they become
damaged, lost, or unreadable, or if Cylinder is replaced.
HUCK INTL,INC
1 CORP. DR.
KINGSTON, N.Y.
12401 USA
SCFM L/M GPM
BARPSI
590350
CE Sticker
M
A
X
PRESS
FLOW
HUCK
(model #)
S/N
590351
Max Pressure
and Flow Sticker
590347
HUCK Address
Sticker
Figure 15
S
S
TICKER
TICKER
L
L
OCATIONS
OCATIONS
