2025 Series Pneudraulic Installation Tools (HK1006) Alcoa Fastening Systems & Rings

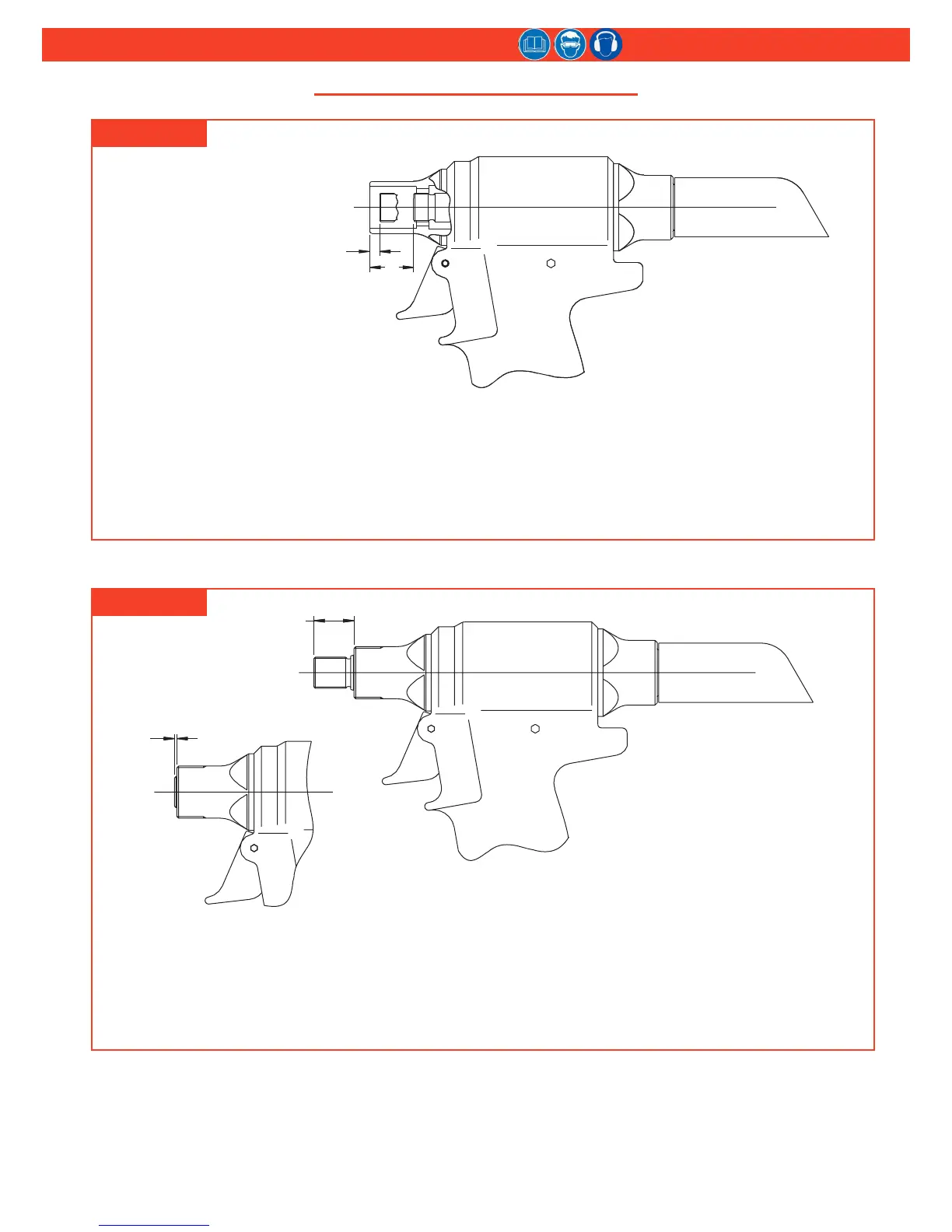

MeasurIng tool stroke


2025L, 2025LB, 2025SL & 2025LV
1. Cycle the piston all the way forward and
measure X.
2. Cycle and hold the piston back and
measure Y.
Stroke = X-Y
fIgure 13


2025, 2025B, 2025S & 2025V
1. Cycle the piston all the way forward and
measure X.
2. Cycle and hold the piston back and
measure Y.
Stroke = Y-X
fIgure 12
