Chain Adjustment - continued
NOTE: If equipped, install the Rear Axle Kickstand at this point (see below).
• When the chain is properly tightened, hold the wheel in this position and tighten
both axle nuts to 21 ft.-lbs.
WARNING: Do not attempt chain repairs. If there is a problem with the chain,
have a bicycle service shop make any repairs.
Rear Axle Kickstand Install
Note: If Axle Nut and Washer are in place, remove and set aside.
Steps:

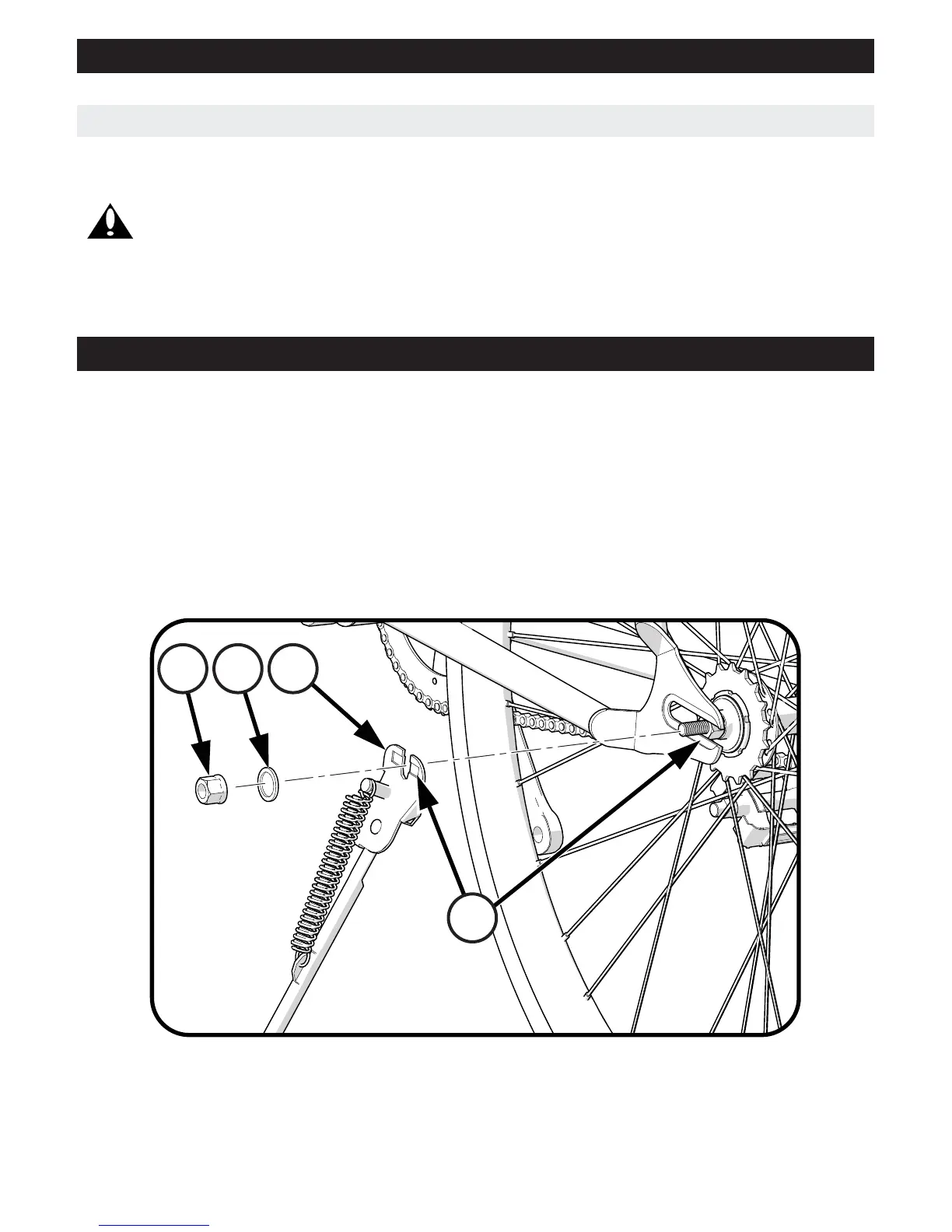

• Place the Kickstand (14) over the rear axle so that the indents (A) line up.
• Install the Washer (17) and Axle Nut (16) hand tight.
• Make sure the Kickstand indents (A) are still in place and that the Kickstand is
pointing straight down.
• Tighten the Axle Nut to 21 ft.-lbs.
A
141716
