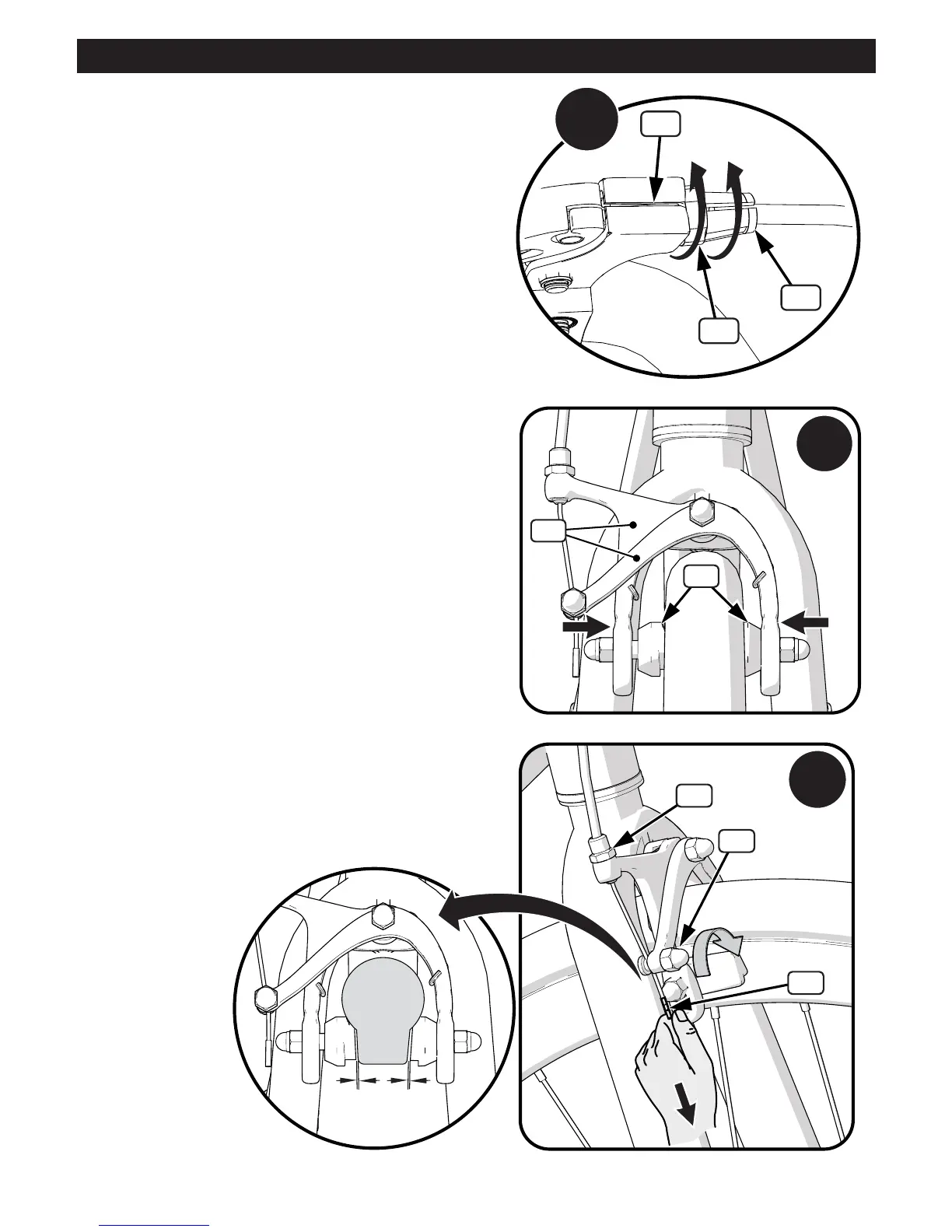

Brake System Setup - continued
1. Rotate Housing (4-1) Groove away
from Cable Groove (4-2) and tighten
Housing Nut (4-3).
4
4-3
4-1
4-2
2. Squeeze Brake Arms (5-1) so that
Brake Pads (5-2) are against the
Rim.
5
5-2
5-1
3. Pull Brake Cable (6-1) tight.
• Tighten Cable Nut (6-2).
• Adjust Cable Nut (6-3) for 1/16”
Brake Pad clearance.
1/16” 1/16”
6-1
6-2
6-3
