Huffy BMX - Handlebar Clamp Installation Types

11
Handlebar Installation - continued

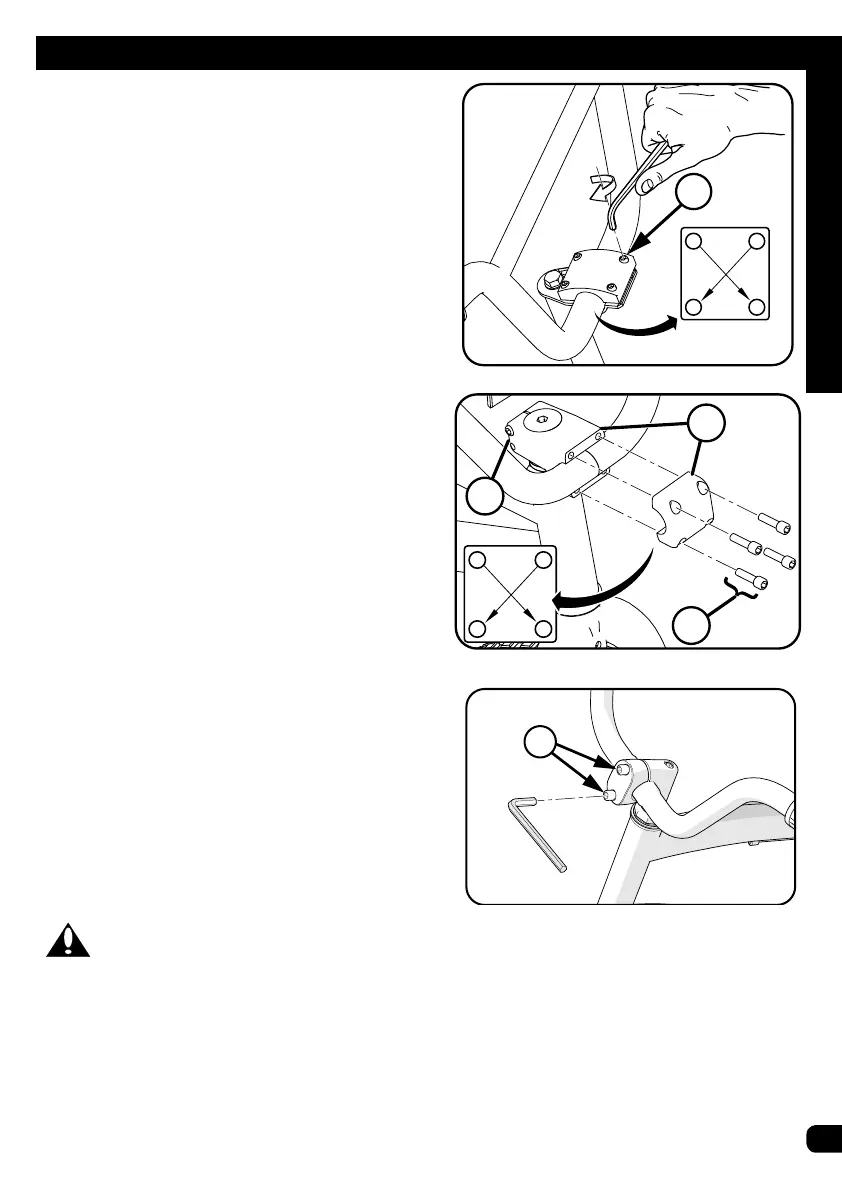

Four Bolt Clamp Top Mount:
1. Adjust the Handlebar into a comfortable
riding position.
2. Tighten Clamp Screws
A
evenly accord-
ing to pattern.
NOTE: Do not over tighten. See Torque Chart
for recommended torque.
3 1
2 4
A
Four Bolt Clamp, Front Mount:
1. Adjust the Handlebar into a comfortable
riding position.
2. Tighten Clamp Screws
A
.
3. Check tightness of side Stem Bolts
B
.
NOTE: Do not over tighten. See Torque Chart
for recommended torque.
3 1
2 4
C
A
B
Two Bolt Stem:
1. Adjust the Handlebar into a comfortable
riding position.
2. Tighten Clamp Screws
A
.
NOTE: Do not over tighten. See Torque Chart
for recommended torque.
A
WARNING: If the Handlebar Clamp in not tight enough, the handlebar can slip in the
stem. This can cause damage to the handlebar or stem, and can cause loss of control.
Assembly
