Handlebar and Stem Installation - No Gyro Brake
NOTE: Check which Stem style your bike has and use one of the following installation
guides.

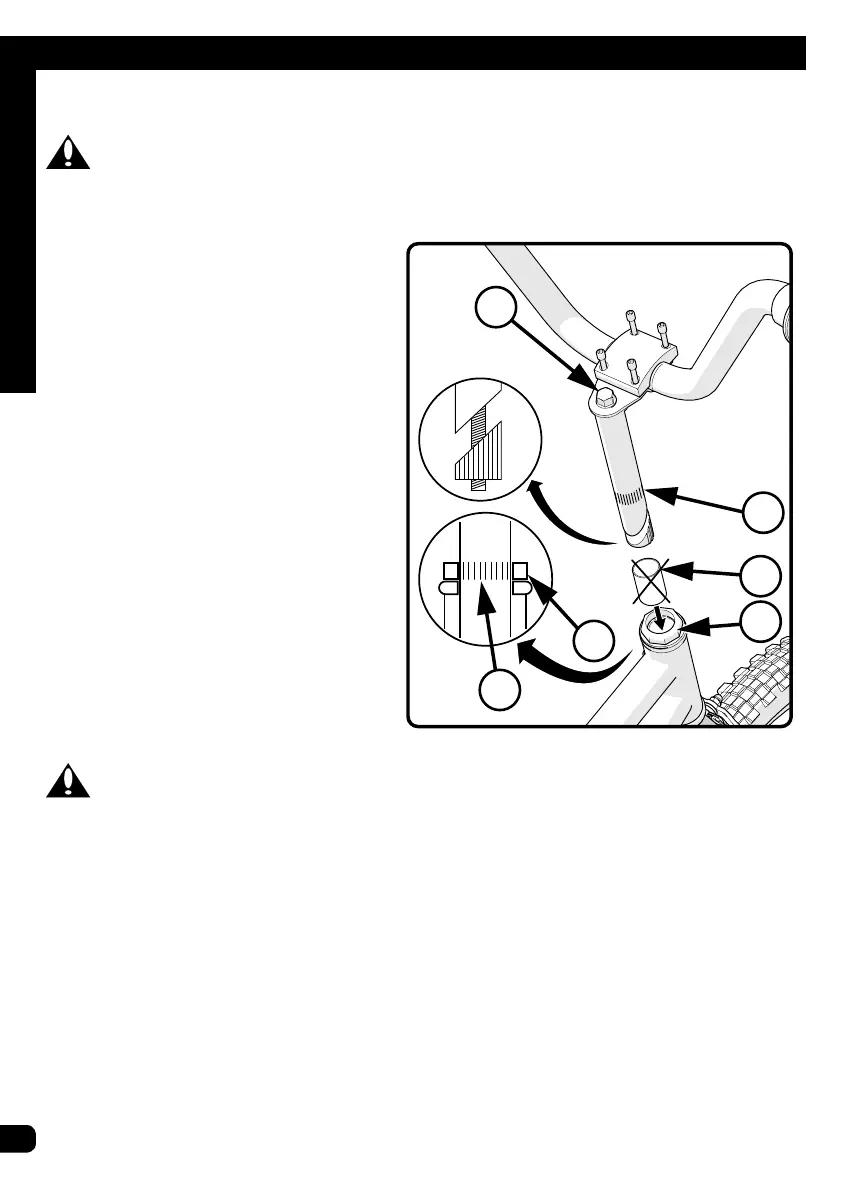

WARNING: To prevent steering system damage and possible loss of control, the
“MIN-IN” (minimum insertion) mark
A
on the stem must be below the top of the Locknut
B
.
QUILL TYPE STEM:
NOTE: Remove plastic Cap
D
from the
end of the Stem.
1. Insert the Stem into the fork.
2. Point the Stem towards the front of
the bike.
3. With the Stem aligned with the
front tire, tighten the Stem Bolt
C
securely. See Torque Chart for rec-
ommended torque.
4. Proceed to Handlebar Installation
on next page
THREADLESS TYPE STEMS:
NOTE: Threadless stems are pre-installed.
• Proceed to Handlebar Installation on
next page.
A
A
B
D
B
C
WARNINGS:
• Do not over tighten the stem bolt
C
. Over tightening the stem bolt can damage the
steering system and cause loss of control.
