Huffy BMX - Front Brake Cable Installation

14
Assembly
Gyro Brake Setup - Front Brake Cable Install

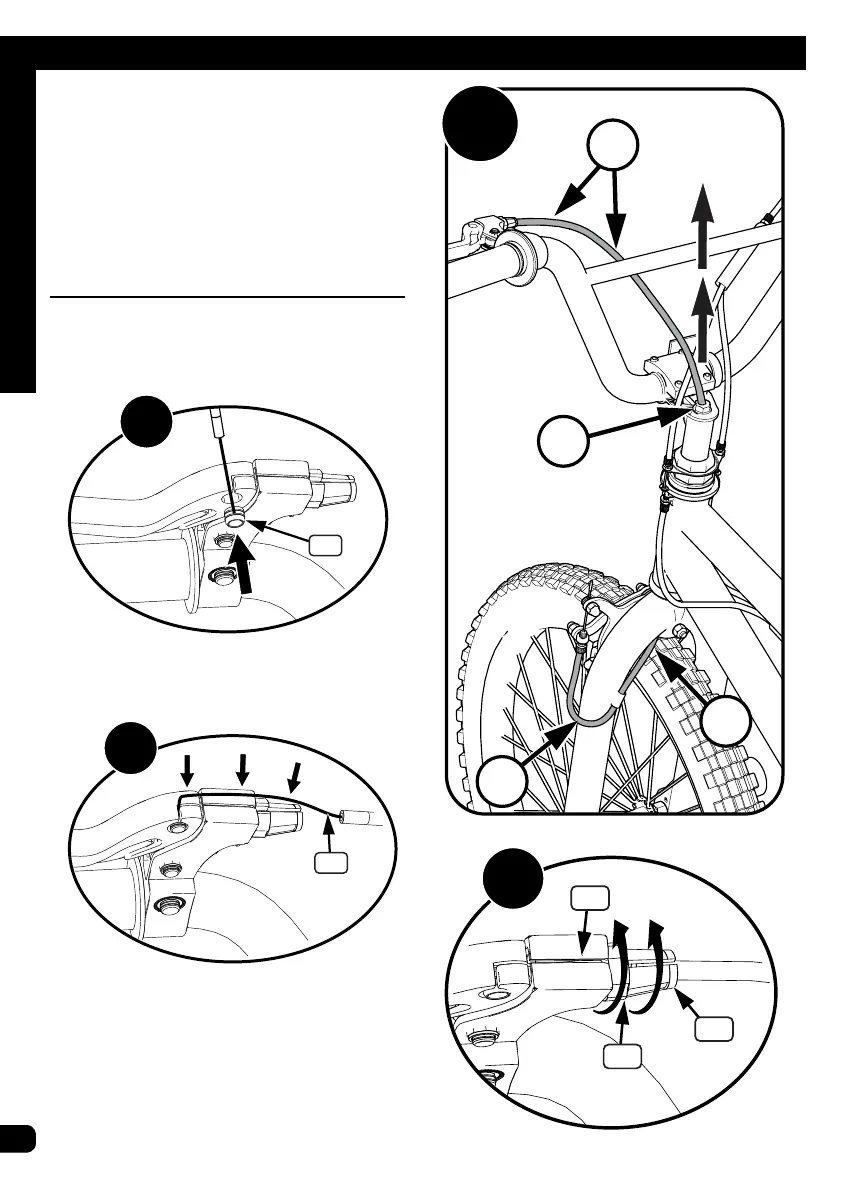

• Pull the Front Brake Cable
A
up through
the Stem Nut
B
so that it is routed as
shown.
• Ensure the Brake Cable does not touch
the Tire
C
.
A
A
C
B
1
• Insert Cable Barrel (2-1) into Brake Lever.
• Insert Brake Cable (3-1) into Groove as
shown.
• Ensure Housing Nut and Housing (4-3, 4-1)
are adjusted all the way in towards the
Hand Lever.
• Rotate Housing (4-1) Groove away from
Cable Groove (4-2) and tighten Housing
Nut (4-3).
2-1
2
2-1
3
3-1
4
4-2
4-3
4-1
continued >>
