Assembly
Gyro Stem and Brake Setup - continued
A
A
B
C
E
D

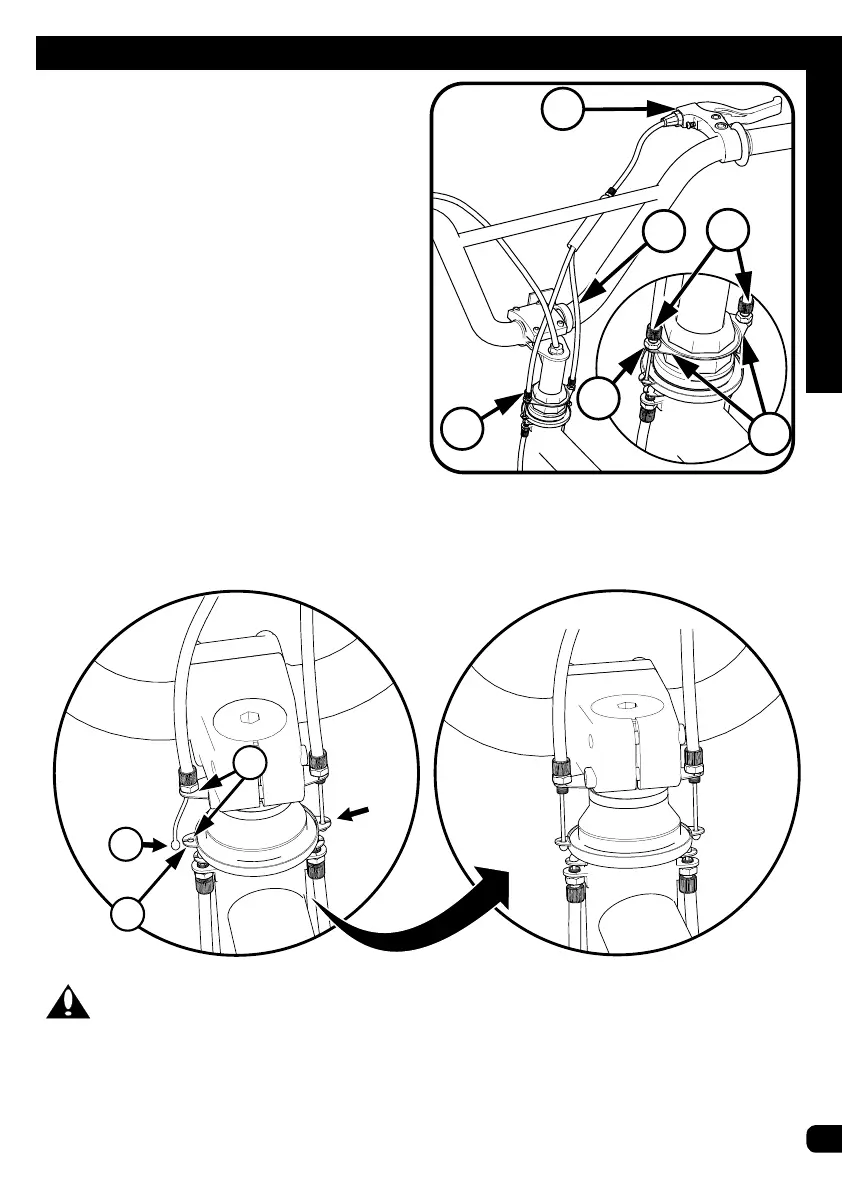

• Squeeze the two sides of the Gyro Plates
A
together and insert the Cable End
B
into
the Gyro Plate Slot
C
.
• Repeat for other side.
A
B
C
WARNING: Ensure Gyro Handlebar/Stem/Wheel system can rotate 360 degrees
without binding any Cables and that the Gyro mechanism works smoothly.
• Install the two Cable Adjusters
A
into the
Gyro Plate
B
making sure the Shorter
Cable
C
is on the same side as the Brake
Lever
D
.
• Turn the Cable Adjusters and Nuts
E
all
the way into the Gyro Plate - hand tight.
continued >>
