7
532239-5_A
TRANSOM TRANSDUCER Installation Guide
10. Re-position the transducer assembly against the transom of the boat, then hand-install all
three screws. Make sure that the transducer location and the pivot angle have not changed,
then fully tighten all three mounting screws. Hand-tighten only!
If you have performed the preceding procedures correctly, the transducer should be level and
at the right height for optimal operation.
Setting Up an Accessory Transducer on the Control Head
The control head will automatically select the transducer that was included with your control head.
If a compatible accessory transducer is connected, you will need to set the transducer type on the
control head. When you select the transducer type, the related views and menus will be added to
the system.
Δ For additional configuration information, download the control head operations manual from
our Web site at humminbird.com.

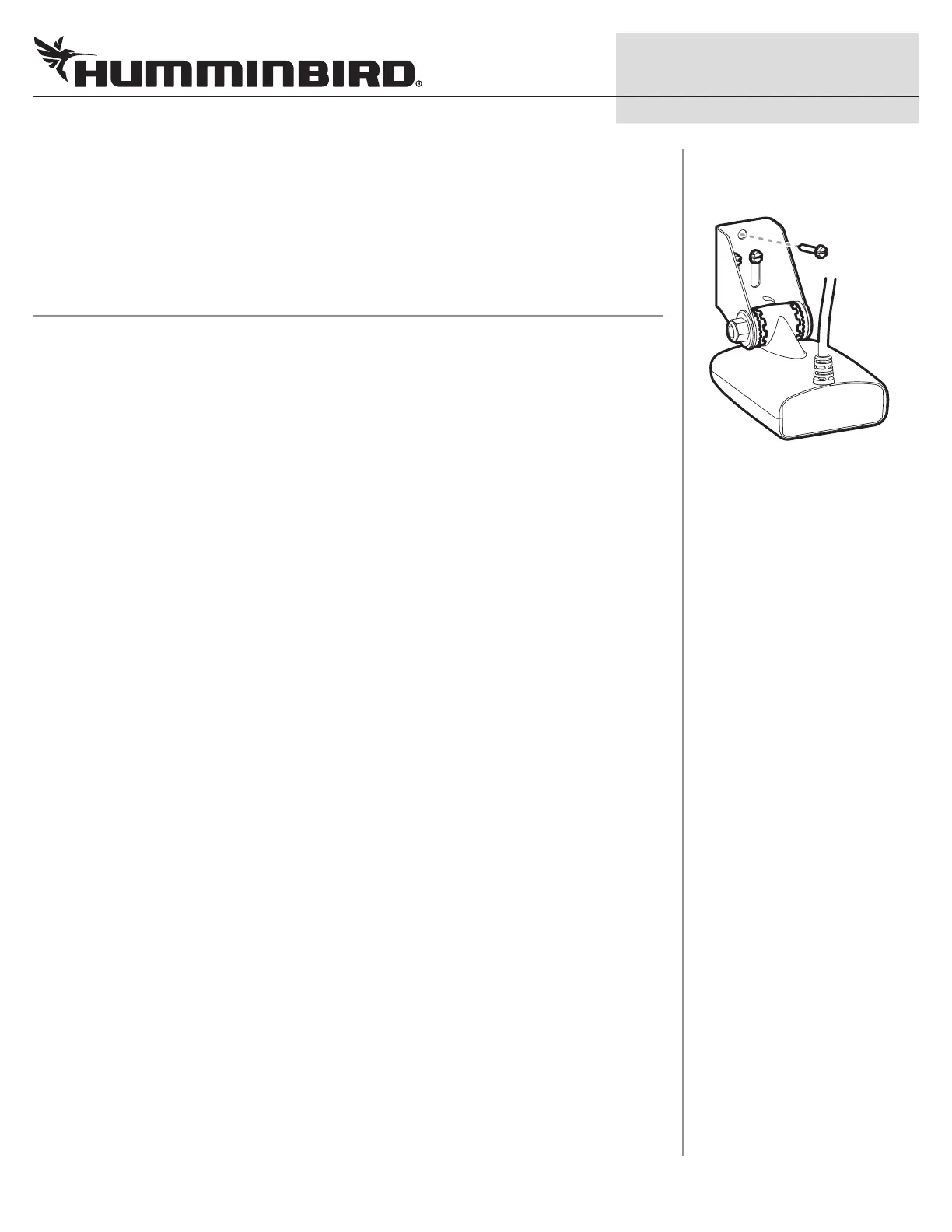

Fully Tightening All Three
Mounting Screws
(Hand-tighten only!)
