Humminbird Helix Series Installation Diagrams

CONSOLE UNITS
Networking
MFD
Networking
MFD
3
4
2
5
1
1
Cranking
Battery
Trolling
Motor
Battery
7
6
Transducer supplied with
MEGA Side Imaging unit at
console
Compatible Accessories
HELIX Series SOLIX Series
1
Ethernet Adapter Cable (need 2) Ethernet Adapter Cable
720074-1 AS EC QDE NA
2
Ethernet Cable (need 2) Ethernet Cable (need 2)
720073-6
720073-2
720073-5
720073-3
720073-4
760025-1
AS EC 5E - 5’
AS EC 10E - 10’
AS EC 15E - 15’
AS EC 20E - 20’
AS EC 30E - 30’
AS ECX 30E -30’
720073-6
720073-2
720073-5
720073-3
720073-4
760025-1
AS EC 5E - 5’
AS EC 10E - 10’
AS EC 15E - 15’
AS EC 20E - 20’
AS EC 30E - 30’
AS ECX 30E -30’
3
GPS + Heading Sensor GPS + Heading Sensor
408400-1 AS GPS HS 408400-1 AS GPS HS
720080-1 AS GPS NMEA
4
Minn Kota Trolling Motor with
i-Pilot Link *
Minn Kota Trolling Motor with
i-Pilot Link *
5
5-Port Ethernet Switch 5-Port Ethernet Switch
408450-1 AS ETH 5PXG 408450-1 AS ETH 5PXG
6
High Speed Transducer (fiberglass hull) High Speed Transducer (fiberglass hull)
710276-1 XP 9 HW T 710287-1 XP 14 HW T
High Speed Transducer (aluminum hull) High Speed Transducer (aluminum hull)
710274-1 XNT 9 HW T 710285-1 XNT 14 HW T
7
Transducer Splitter Cable Transducer Splitter Cable
720101-1 9 M SIDB Y 720103-1 14 M SIDB Y
* One (1) AS ECX 30E Ethernet Extension cable included with i-Pilot Link trolling motor
The accessories and part numbers listed are valid as of April 2020. Installations shown are for
HELIX G3N and SOLIX G2 networking models and Minn Kota trolling motors with i-Pilot Link.
NMEA 0183 Ethernet 12V DC Power Transducer Cable Bluetooth® Signal
MK
Heading
Sensor

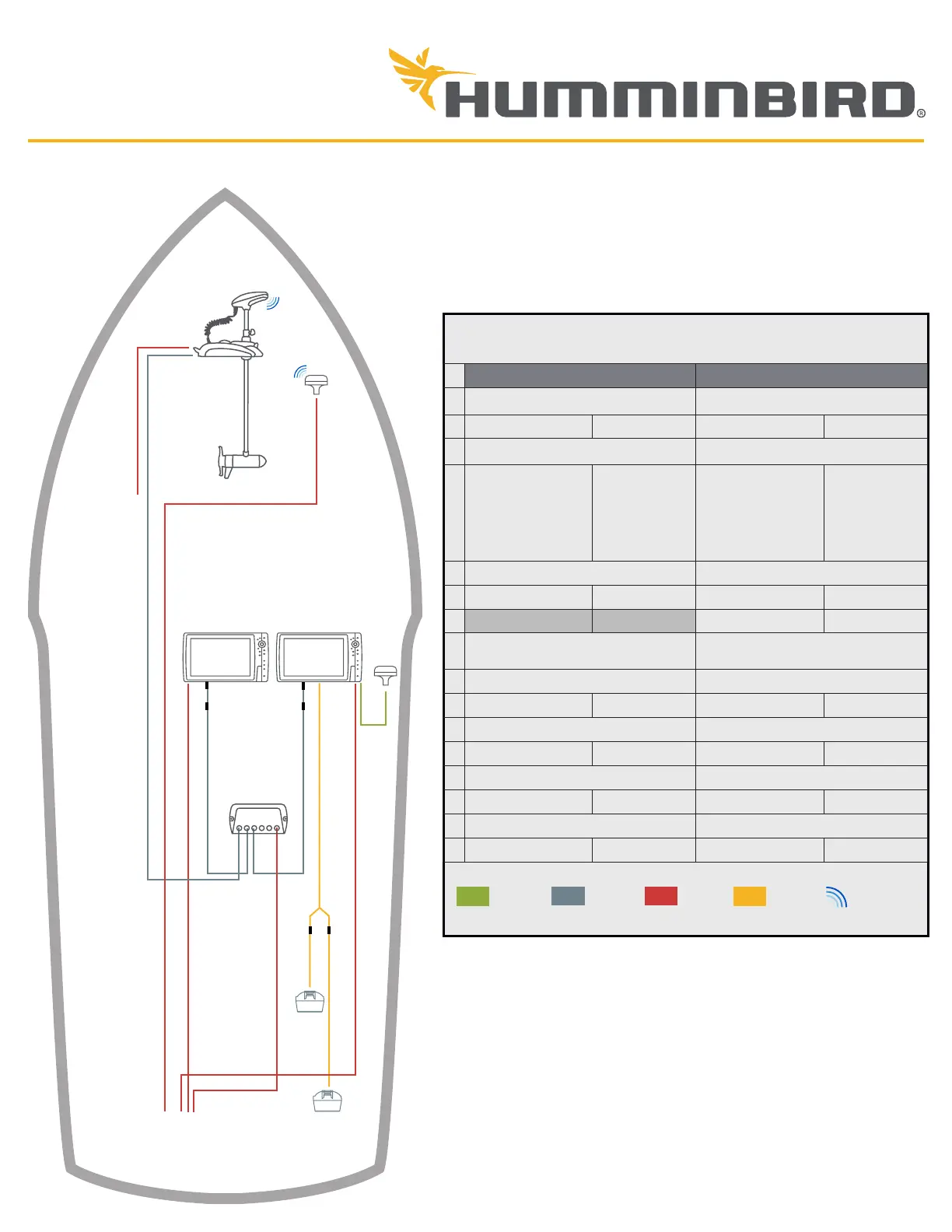

INSTALLATION DIAGRAMS
Saltwater - Minn Kota Riptide Trolling Motor
with i-Pilot Link and (2) console-mounted
Humminbird Units
