Humminbird Helix Series Installation Diagrams

CONSOLE UNITS
BOW UNIT
Networking
Graph
Networking
Graph

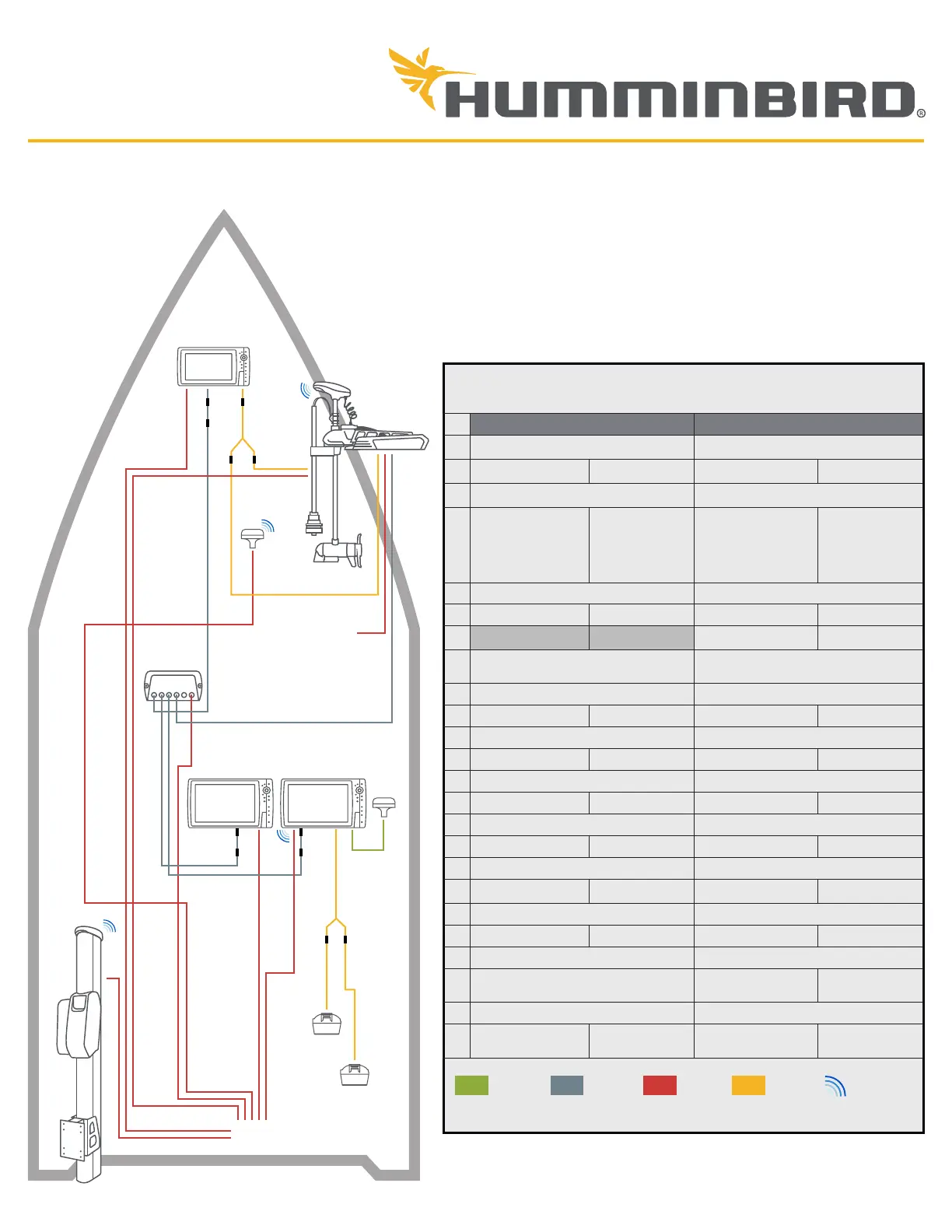

INSTALLATION DIAGRAMS
Minn Kota Trolling Motor with i-Pilot Link
and Built-In MEGA Imaging, (1) Bow-Mounted
Humminbird unit, MEGA 360 Imaging – Ultrex,
(2) Console-Mounted Humminbird units,
and Talon Shallow Water Anchor
Cranking
Battery
Trolling
Motor
Batteries
1
1 1
2
6
7
4
5
3
Transducer supplied
with MEGA Side
Imaging unit at
console
8
9
10
11
Compatible Accessories
HELIX G3N Series SOLIX Series
1
Ethernet Adapter Cable (need 3) Ethernet Adapter Cable
720074-1 AS EC QDE NA
2
Ethernet Cable (need 3) Ethernet Cable (need 3)
720073-6
720073-2
720073-5
720073-3
720073-4
AS EC 5E (5’)
AS EC 10E (10’)
AS EC 15E (15’)
AS EC 20E (20’)
AS EC 30E (30’)
720073-6
720073-2
720073-5
720073-3
720073-4
AS EC 5E (5’)
AS EC 10E (10’)
AS EC 15E (15’)
AS EC 20E (20’)
AS EC 30E (30’)
3
GPS + Heading Sensor GPS + Heading Sensor
408400-1 AS GPS HS 408400-1 AS GPS HS
720080-1 AS GPS NMEA
4
Minn Kota Ultrex Trolling Motor with
i-Pilot Link and Built-In Mega Imaging *
Minn Kota Ultrex Trolling Motor with
i-Pilot Link and Built-In Mega Imaging *
5
5-Port Ethernet Switch 5-Port Ethernet Switch
408450-1 AS ETH 5PXG 408450-1 AS ETH 5PXG
6
Transducer Splitter Cable Transducer Splitter Cable
720101-1 9 M SIDB Y 720103-1 14 M SIDB Y
7
High Speed Transducer (fiberglass hull) High Speed Transducer (fiberglass hull)
710276-1 XP 9 HW T 710287-1 XP 14 HW T
High Speed Transducer (aluminum hull) High Speed Transducer (aluminum hull)
710274-1 XNT 9 HW T 710285-1 XNT 14 HW T
8
Minn Kota Talon with Bluetooth Minn Kota Talon with Bluetooth
Talon SWA Talon SWA
9
MEGA 360 and MDI/2D Y-Cable MEGA 360 and MDI/2D Y-Cable
720108-1 14 M360 2DDI Y 720108-1 14 M360 2DDI Y
10
Adapter Cable for MEGA 360 Y-cable Adapter Cable for MEGA 360 Y-cable
AD HELIX M360 (Included with MEGA
360)
NA
11
MEGA 360 Imaging MEGA 360 Imaging
411250-1
MEGA 360
Imaging – Ultrex
411250-1
MEGA 360
Imaging – Ultrex
* One (1) AS ECX 30E Ethernet Extension cable included with i-Pilot Link trolling motor
The accessories and part numbers listed are valid as of April 2020. Installations shown are for
HELIX G3N and SOLIX G2 networking models and Minn Kota trolling motors with i-Pilot Link.
NMEA 0183 Ethernet 12V DC Power Transducer Cable Bluetooth® Signal
Networking
Graph
MK
Heading
Sensor
