OPERATOR MANUAL HCS-5 020310 5.7.x 03

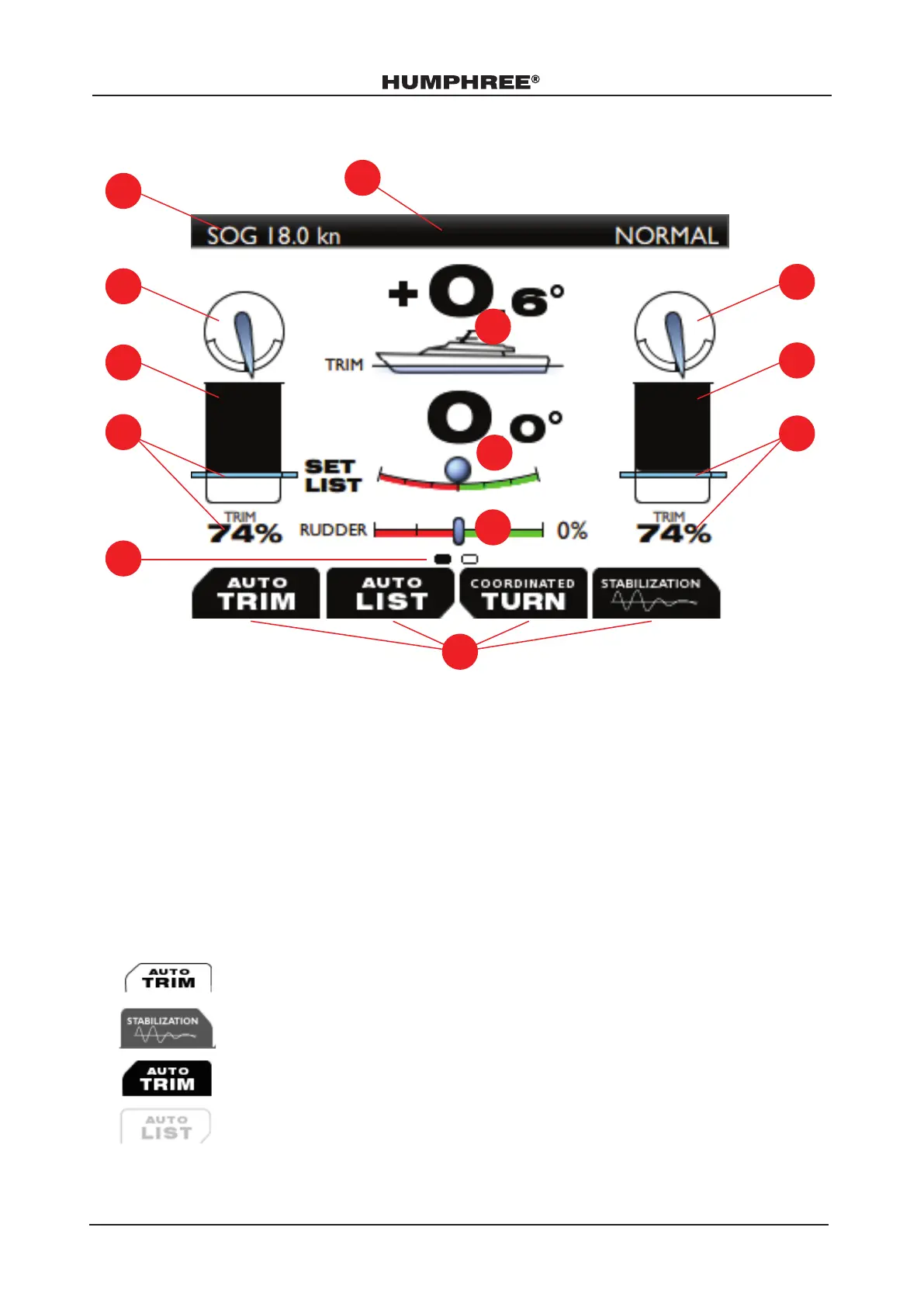

MAIN SCREEN OVERVIEW
FUNCTION Color
Function is turned off.
Function is turned on but not activated because of the speed.
Function is turned on.
The operator does not have a license for the function.
G
F
J
A
B
E
H
I
K
L
M
C
D
A. Speed Indicator
B. Port Fin
C . Port Interceptor
D. Interceptor Trim Demand
E. Page Indicator
F. Humphree Functions ON/OFF
G. Status Bar
H. Trim Angle
I. List Angle
J. Rudder Indicator
K. Starboard Fin
L. Starboard Interceptor
M. Interceptor Trim Demand
