Typhoon Moulded
(Motor assembly same as Typhoon Metal)
Part Qty Part Qty Part Qty
Blades & Blade
Holders
4 Base Plate 1 Canopy Cover Screws 2
Blade Holder Screws 8 HPI Wall Controller 1 Canopy Cover 1
Blade Washers 12 Hanger Bracket 1 Motor Housing 1
Blade Nuts 12 Hex Head Screw 2 Wall Speed Capacitor 1
Ball Joint 1 15cm Down Rod 1 Reversing Switch Cover 1
Ball Joint Screw 1 Down Rod Pin Screw 1
(these parts come preassembled)
Ball Joint Pin
1 Down Rod Short Screw 1
Blade Screws 12
Electrician Installation Manual
Typhoon Ceiling Fan
5
Blade Holder Screw
Blade
Blade Washer
Blade Nut
Blade Holder

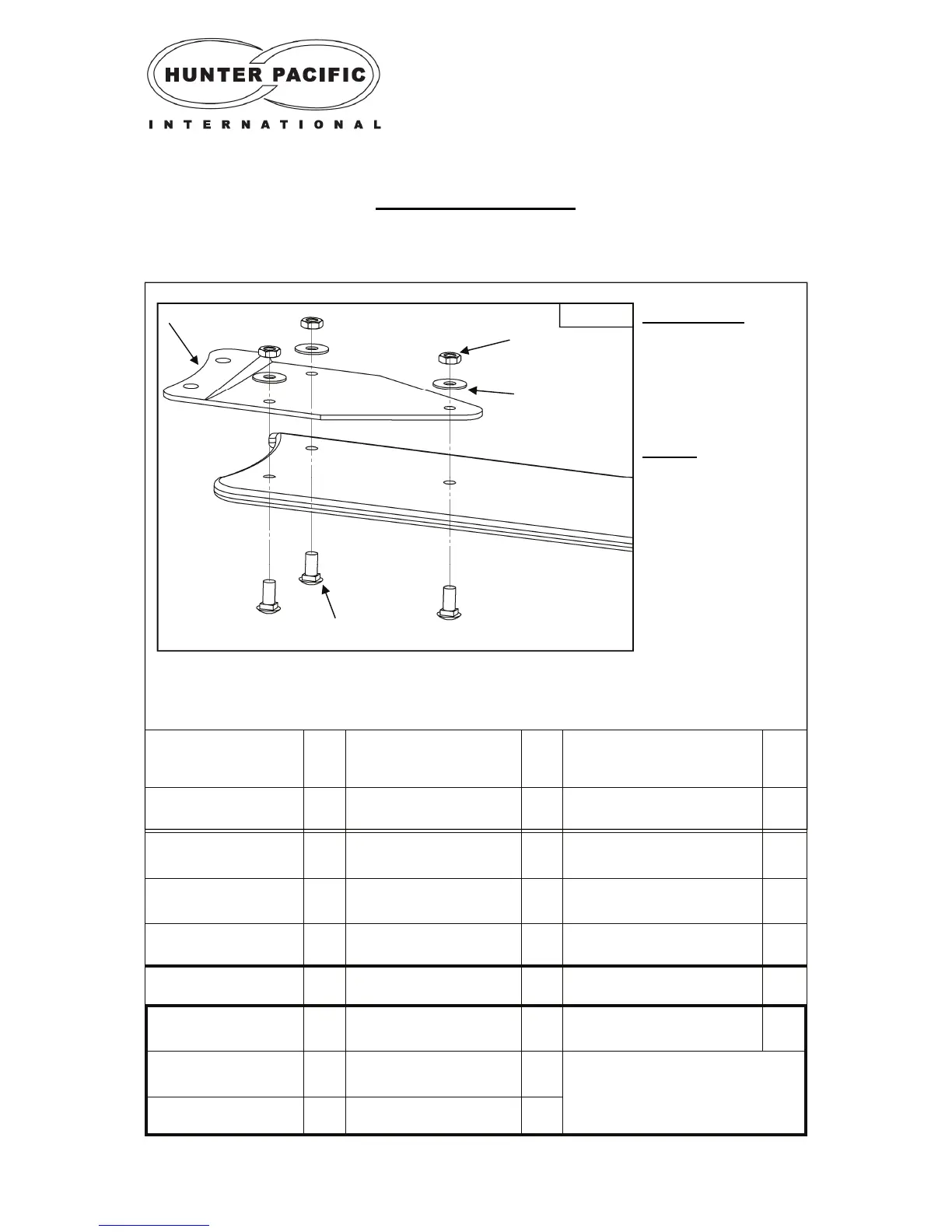

Fig.1
STEP 1. (Fig.1)
Assemble the blades
and blade holders
before attaching to the
fan motor as shown in
Fig.1.
STEP 2.
Tighten the nuts using
a small spanner. Do
not over-tighten to
avoid damaging the
blades.
Damage caused by
improper assembly is
not covered by
warranty.
