Hunter Pacific Typhoon - Wiring Instructions; Step 4: Connecting Fan and Ceiling Wires

7
Electrician Installation Manual
Typhoon Ceiling Fan
1. Do not attempt to operate the fan (or optional light kit) with any wall control that is not
approved by Hunter Pacific for use with its fans. DO NOT use solid state controllers. The
use of unapproved controllers will void your warranty.
2. Do not
mix blade sets from one fan to another as this may upset the balance of the fan. If
only one blade is damaged you are still required to replace with a new set.
Assembling the fan
Fig. 4
Green
Earth Wires

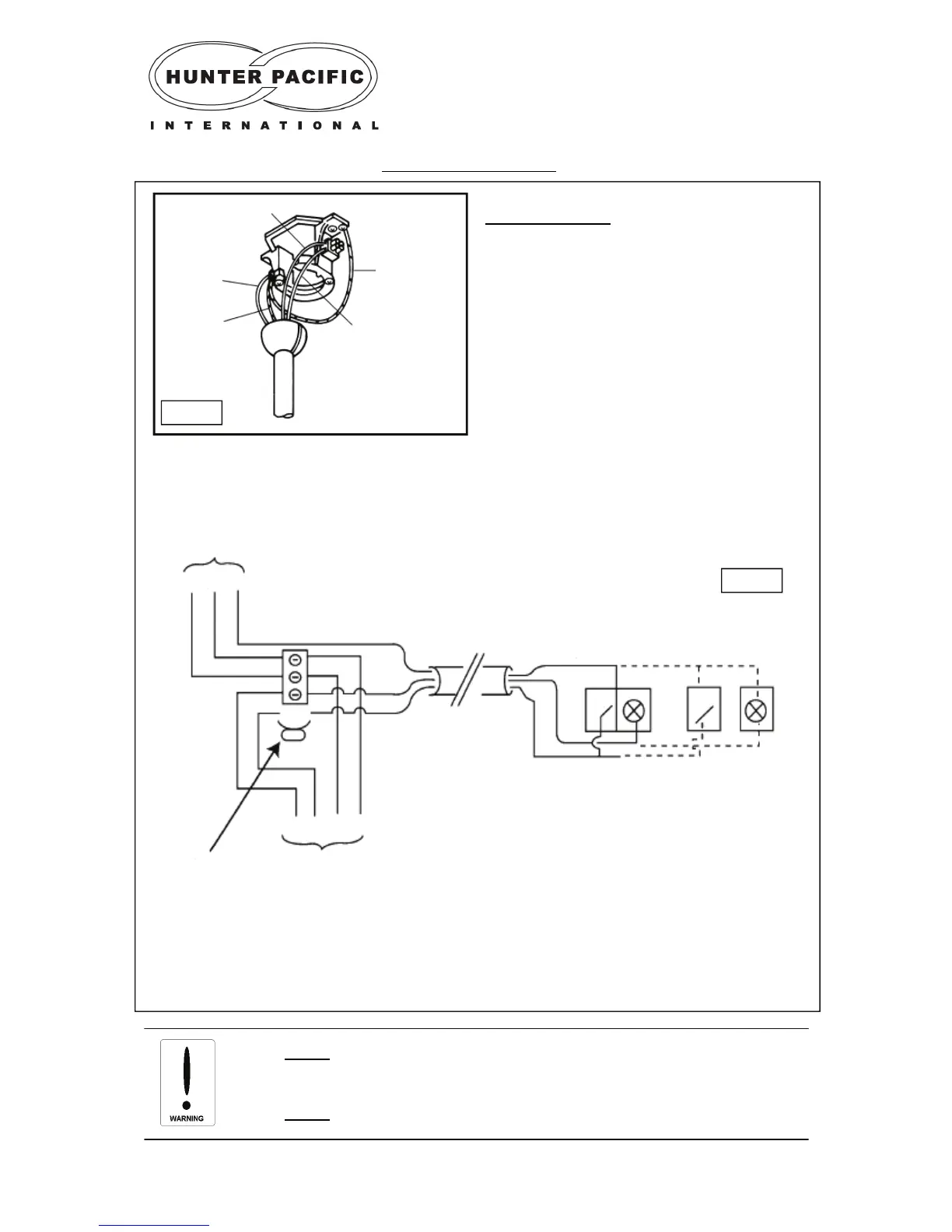

STEP 4 (Fig 4 & 5)
a) Connect wires from the fan with wires in
the ceiling via the terminal block on the
hanger bracket refer to figure 4 and 5.
b) Make sure earth wires are also connected.
c) Connect light wires (red/white) if a light
fitting is going to be used. (Cap seal light
wires if a light fitting is not going to be used).
Wiring Instructions (with and without accessory light)
Brown
Blue
Red/White
Earth Wires
Supply
E N A
LA
LA
FA LA E N
Green-yellow
Black
Red
Red
Red
Brown
White or Red
Green-yellow
Blue
Fan Wiring
Combi
Control
Separate
Control
Separate terminal
For when 3 pole
block is fitted.
Wiring for use with 3 pole block
- Colours representative only
- Separate terminal required for active
for light when 3 pole block fitted.
Fig. 5
