Hunter Pacific Typhoon - Attaching an Extension Rod; Step 1: Removing Standard Down Rod; Step 2: Removing Ball Joint; Step 3: Installing Extension Rod

13
Electrician Installation Manual
Typhoon Ceiling Fan
1. Do not attempt to operate the fan (or optional light kit) with any wall control that is not
approved by Hunter Pacific for use with its fans. DO NOT use solid state controllers. The
use of unapproved controllers will void your warranty.
2. Do not
mix blade sets from one fan to another as this may upset the balance of the fan. If
only one blade is damaged you are still required to replace with a new set.

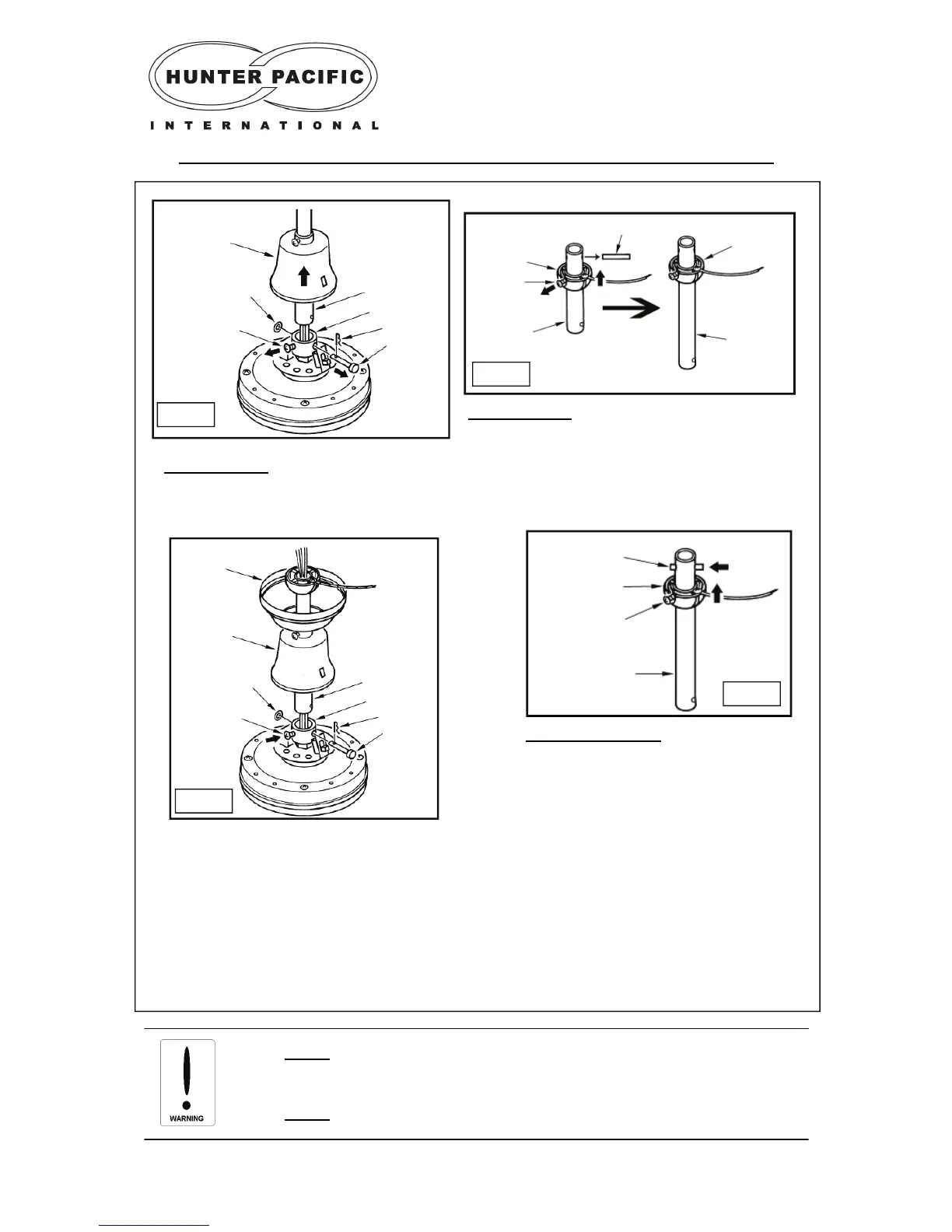

Attaching an extension rod - Hunter Pacific rods to be used ONLY
Step 1 (Fig. 23)
Loosen the down rod screws and unlock the
cotter pin to remove the standard down rod
Step 2 (Fig. 24)
Loosen the ball joint screw, take out the ball joint
pin and remove the ball joint. Then slide off the
canopy cover.
Fig. 17
Down Rod
Tighten Ball
Joint Screw
Ball Joint
Ball Joint Pin
Fig. 26
Step 3 (Fig 25 & 26)
Now install the extension rod and
reverse step 1 & 2 to secure the rod to
the fan and the ball joint.
NOTE: If the extension rod needs to be shortened, cut the rod to the required length and drill
the appropriate hole size to fit the ball joint pin. The cut end of the rod should be used on the
ball joint end only. When installing a 1.8m extension rod the wiring will need to be extended and
joined. This should be done using crimp style connectors.
