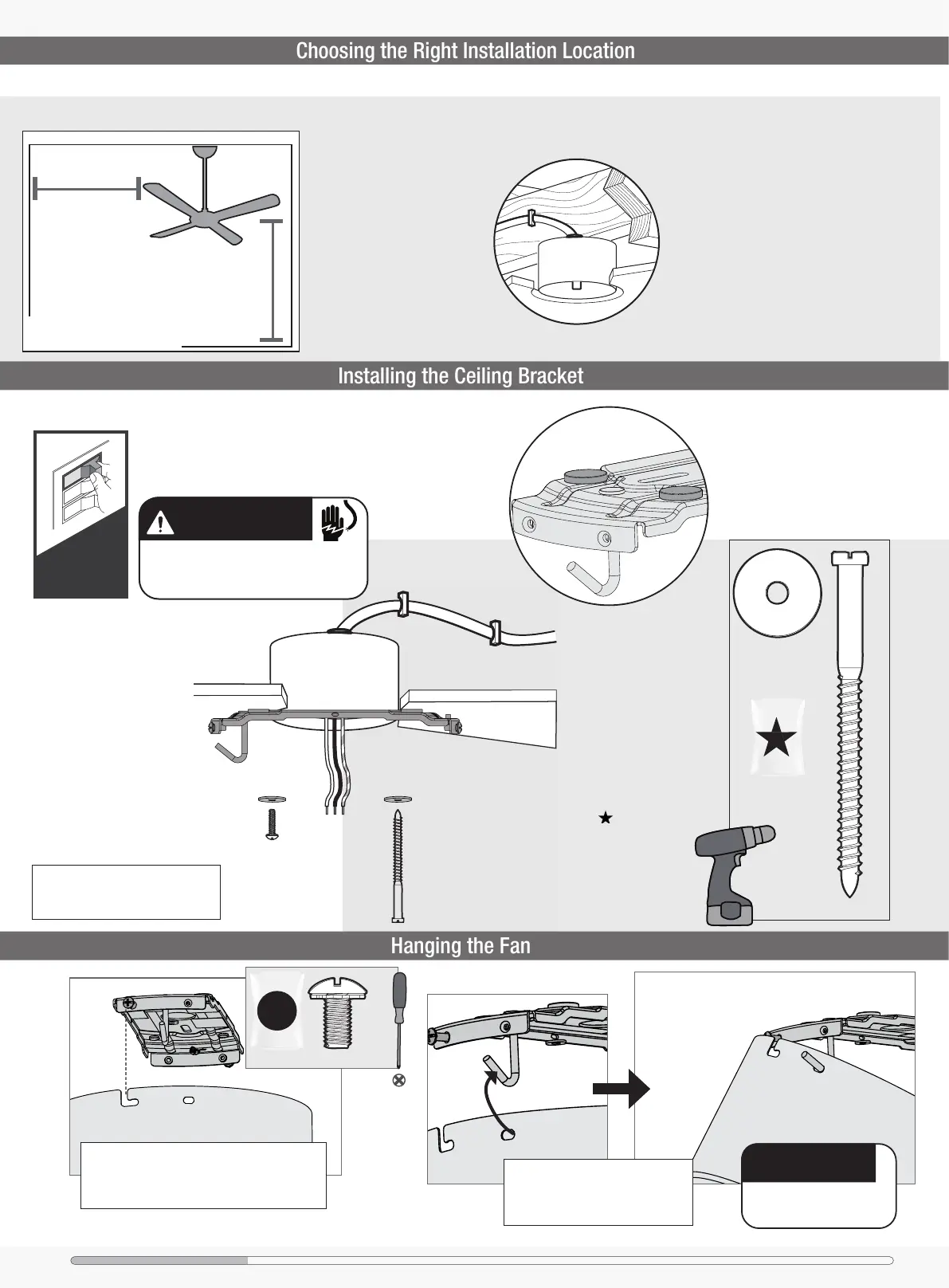

Choosing the Right Installation Location
You probably bought this fan with a location in mind. Let’s check below to make sure it is a good t.
Check the room dimensions: Check the outlet box:
You must be able to
secure the fan to building
structure or fan-rated
outlet box.
30 inches
from blade tip to
nearest wall or
obstruction
7 feet
from bottom edge
of blade to the
oor
Ceiling Bracket Hanging Fan Wiring Canopy Blades Light Glass/Bulbs Pull Chains
Use wood screws and
washers (included) when
securing to support structure
with approved electrical
outlet box. Drill 9/64” pilot
holes in support structure
to aid in securing ceiling
bracket with hardware found
in the hardware bag.
Use machine screws
(provided with outlet box)
and washers when securing
to existing ceiling fan-rated
outlet box. Make sure it is
securely installed and is
acceptable for fan support of
31.8 kg (70 lbs) or less.
Option 2:
Wood Screws
Option 1:
Machine Screws
OFF
Turn Power
Do this rst!
The machine screws are the ones
that came with your outlet box.
Hunter Pro Tip:
bag
Washer
Wood Screw
x2
x2
You have two options for installation. Pick which one works best for your location.
M
a
k
e
s
u
r
e
a
l
l
f
o
u
r
b
u
m
p
e
r
s
a
r
e
s
t
i
l
l
a
t
t
a
c
h
e
d
.
Hanging the Fan
Partially install two of the canopy screws into
screw holes on the left side of the ceiling plate
as shown. Choose the two screw holes that are
aligned with the hanging slots in the fan body.
DO NOT PICK THE FAN UP BY THE
WIRES. Use the hanging hole on the
body of the fan to hang the fan on the
hook of the ceiling mounting plate.
NOTICE
To prevent damage to fan,
ALWAYS lift holding the fan
housing.
2 of 4
Canopy Screw
bag
WARNING
To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.
Installing the Ceiling Bracket
