If you have an angled ceiling:
1. If your ceiling angle is less than 34°, hang your fan
by the standard downrod (included).
2. If your ceiling angle is greater than 34°, you will
also need an Angled Mounting Kit (sold separately).
Guide Touches
BOTH Ceiling & Wall
S
I
T
U
A
T
I
O
N
1
Guide Touches
Wall
but
NOT Ceiling
S
I
T
U
A
T
I
O
N
2
You need an
Angled
Mounting Kit.
Follow the
instructions in
this manual.
*most common
If you have a at ceiling:
Hang your fan by the standard downrod (included).
Mounting Options
Use Standard Mounting
to hang the fan from a at ceiling.
Use Angled Mounting
to hang the fan from a
vaulted or angled ceiling.
4
34
O
CEILING
WALL
OPTION
1
Standard
Mounting
OPTION
2
Angled
Mounting
2 3
SLIDE
toward ceiling
PLACE
against wall
1
FOLD
on dotted line
34°

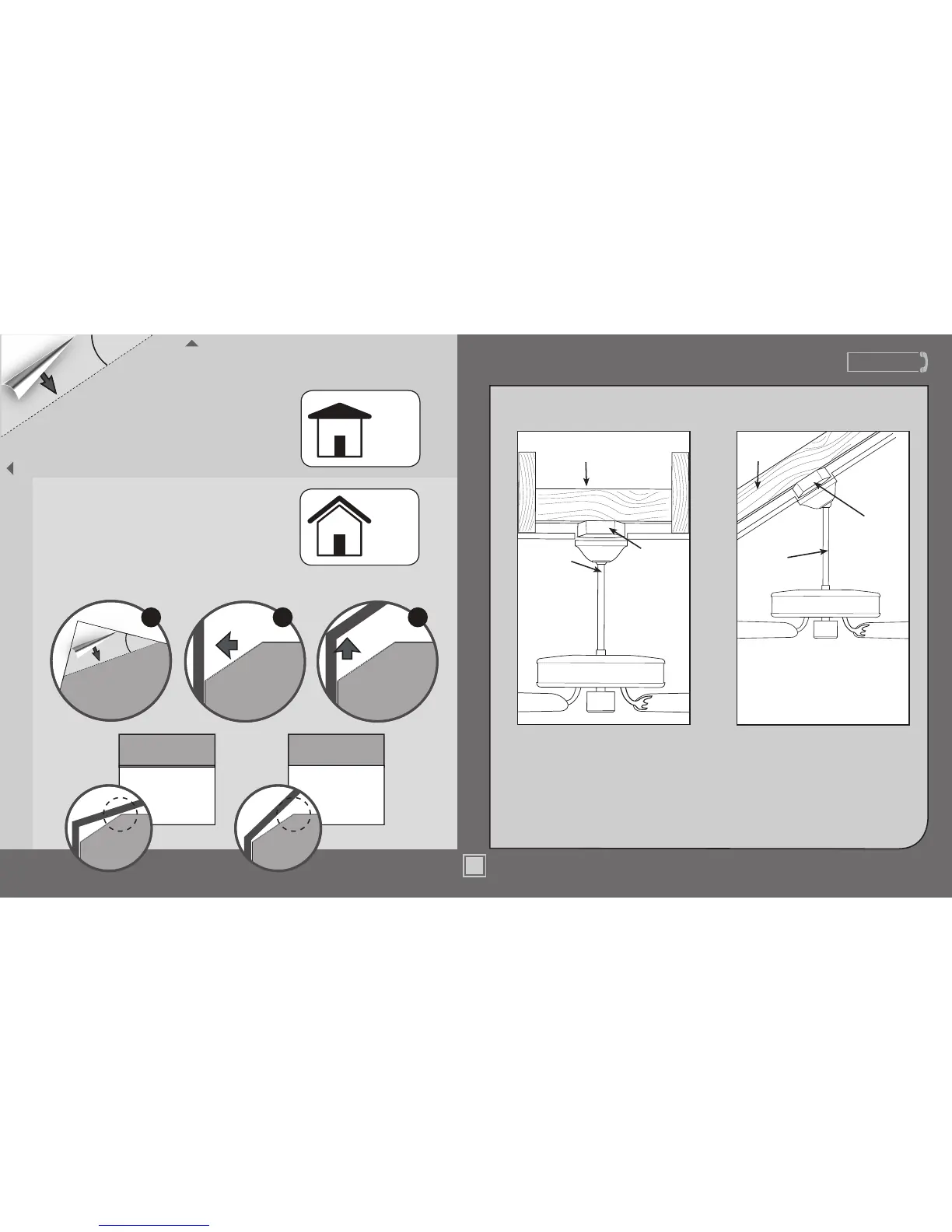

Use the three steps below to determine if your ceiling angle is greater than 34°
Support
Structure
Ceiling
Outlet Box
(required)
Angled
Mounting
Style
Standard
Mounting
Style
Support
Structure
Ceiling
Outlet Box
(required)
M0096-01 • 04/23/14 • © Hunter Fan Company
www.HunterFan.com
To Next Page
