13
41524-01 9-5-2001
®

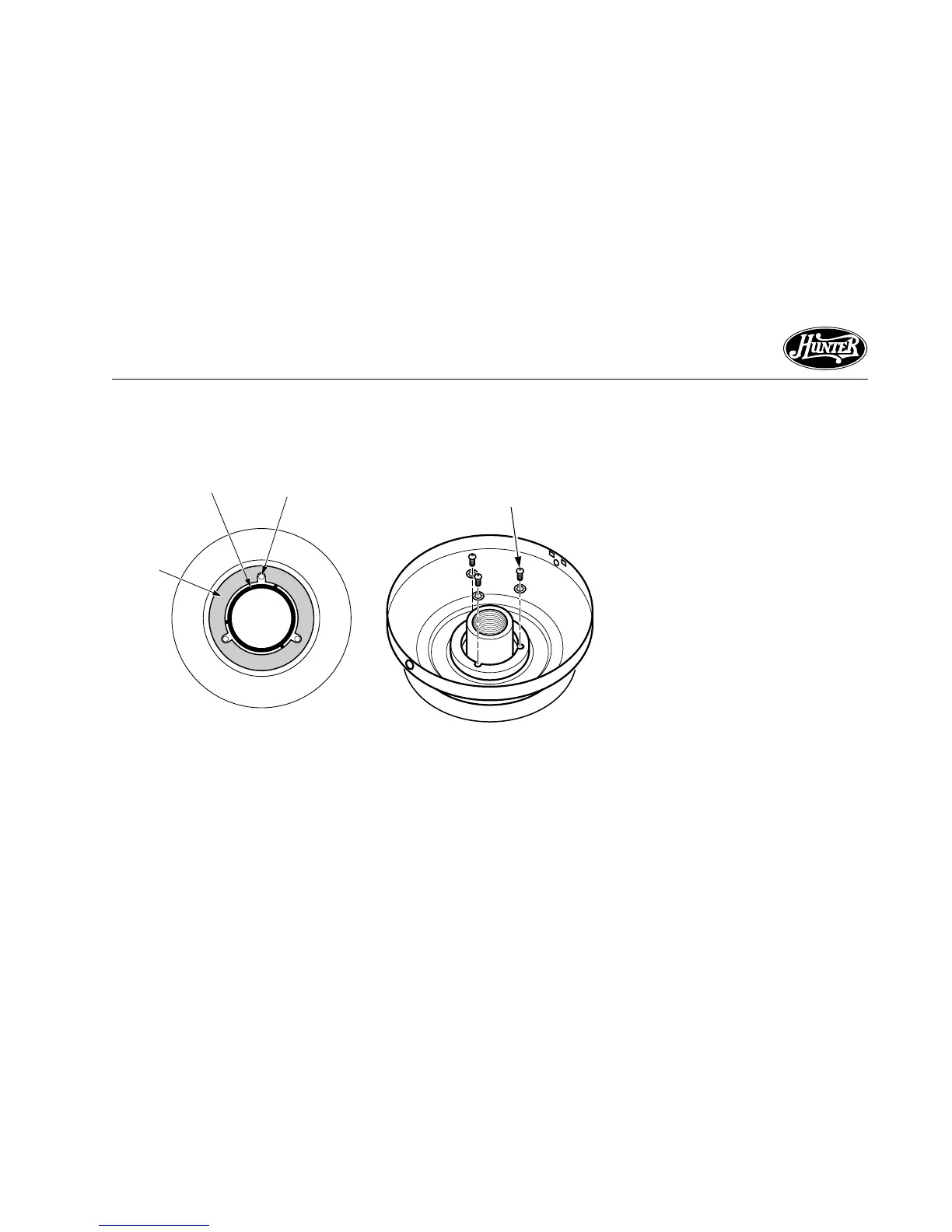

Figure 4d - Attaching Canopy to Fan
Assembly
Assembly
Washer
Adapter
Threaded
Hole
Figure 4c - Positioning Assembly
Washer Slots over Threaded Holes
3. Position the slots in the assem-
bly washer over the threaded
holes in the adapter as shown
in Figure 4c.
4. Attach the canopy tightly to the
fan assembly with three #8-32
assembly screws and lockwashers
as shown in Figure 4d.
Assembly Screw
and Lockwasher
To Next Page
