Hunter Circulus - Fan Blade and Light Fixture Assembly; Attaching Fan Blades to Motor; Connecting Light Fixture Wires

5
1886
Ceiling Bracket Downrod Hanging Fan Wiring CanopyBlades Light Bulbs Remote
Turn the motor assembly upside down and
place it in one of the holes in the packaging.

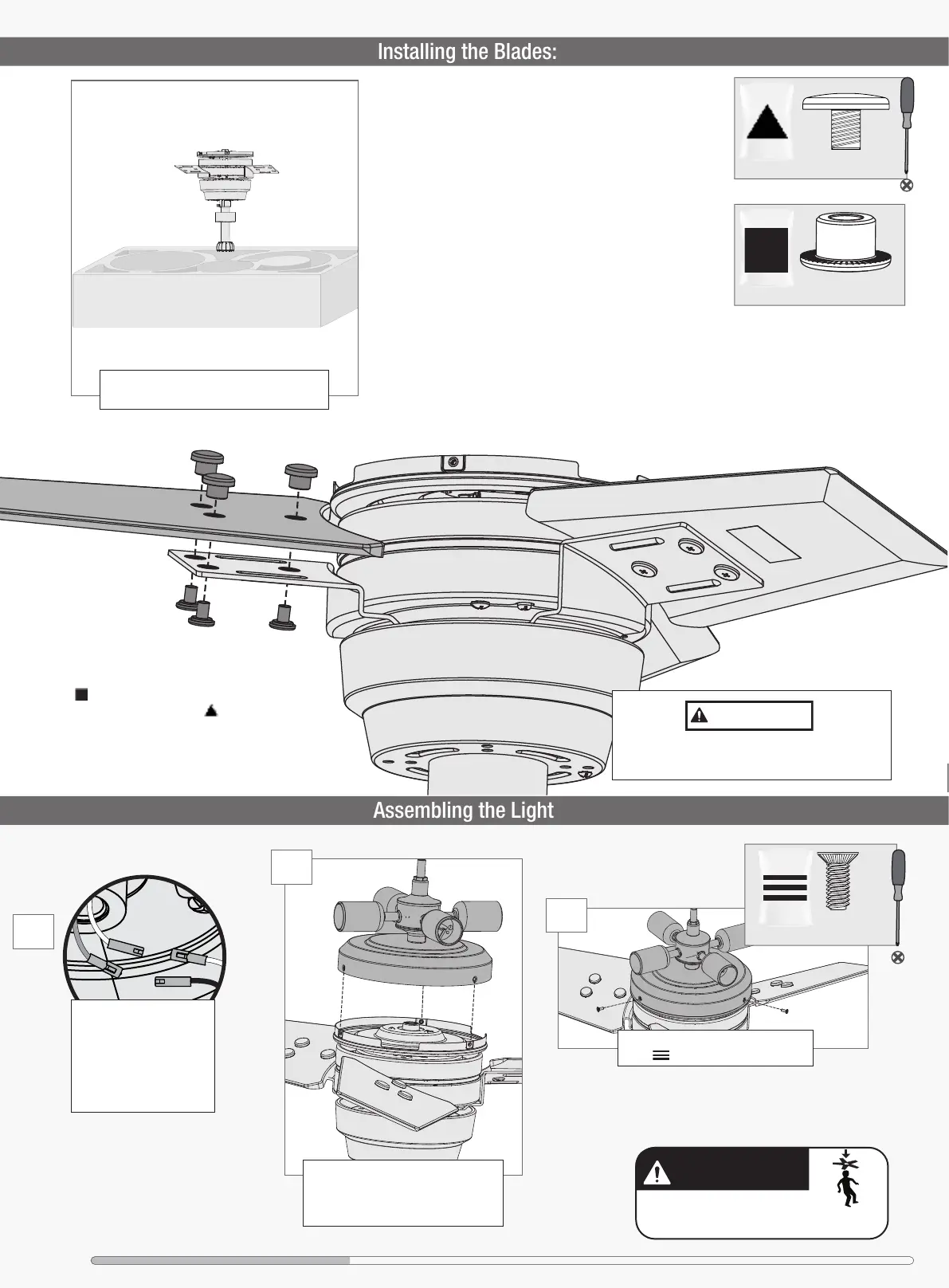

Installing the Blades:
Secure each blade to a blade iron as
shown using the blade nuts, found in
the
hardware bag, and the blade
assembly screws, found in the
hardware bag.
Repeat x3
x9
BAG
Blade Screw
x9
BAG
Washers
IMPORTANT
NOTE: Follow the instructions on the blade. Installing it
incorrectly could result in your fan not functioning.
Place the lower switch housing down
until its screw holes are aligned with
the screw holes in the upper switch
housing.
Install the three light kit screws found
in the hardware bag.
x3
Light Kit
Screw
BAG
4
STEP
5
STEP
6
STEP
WARNING
FAN FALL HAZARD
Make sure all three screws are tight to secure the
lower switch housing to the upper switch housing
Assembling the Light
Connect the single-pin
connectors from the
light kit assembly to the
connectors from the fan.
Connect the white wires
together. Connect the blue
and black wires together.
