Before Beginning Installation
a
• You must be able to secure the fan to building structure
or fan-rated outlet box.
• You have two options for installation. Pick which one
works best for your location. Remove any existing
bracket prior to installation.

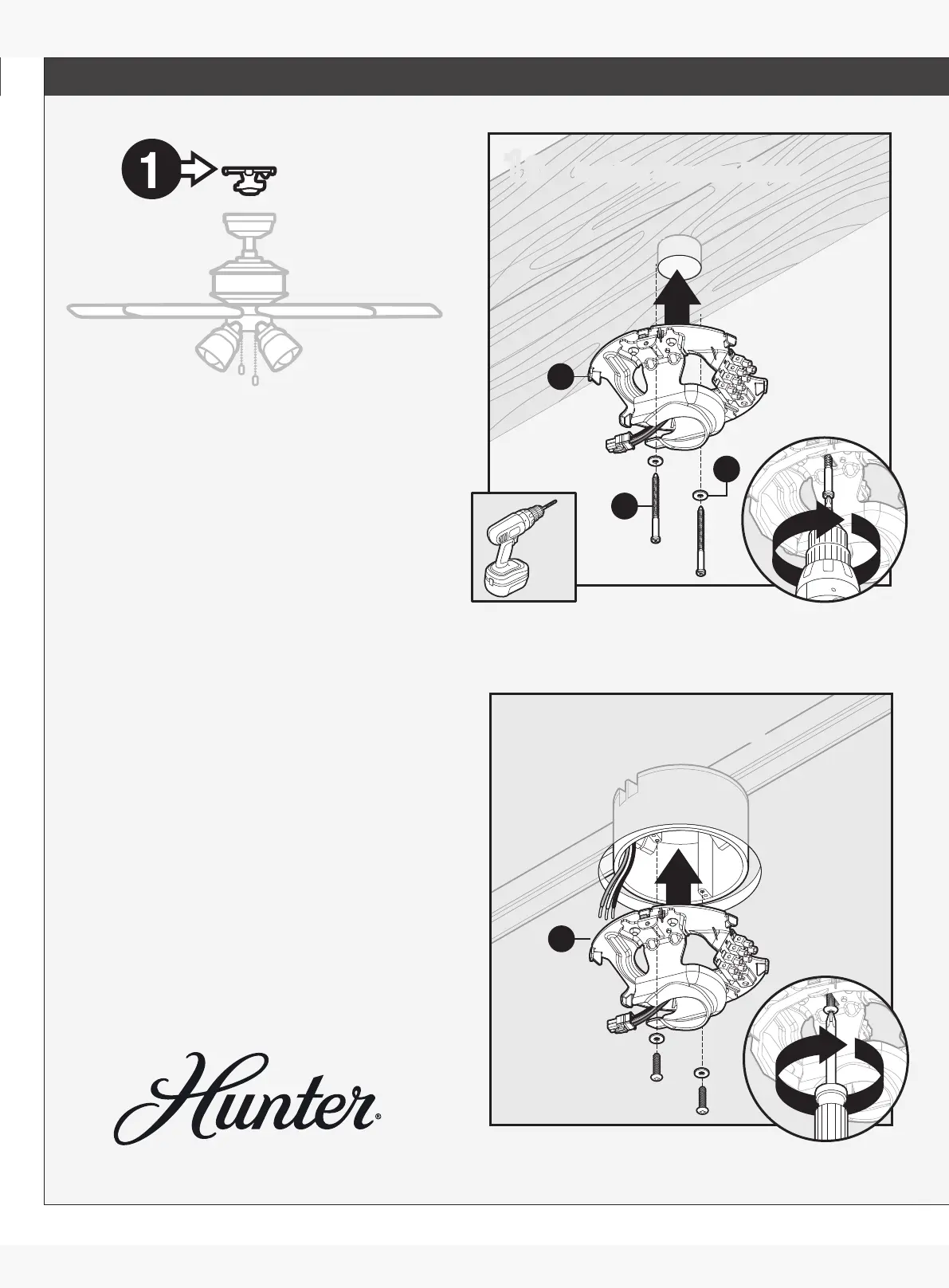

Using wood screws (AA) and washers (BB) included, install canopy
mount (A) through box outlet into building structure. Drilling 9/64"
pilot holes in building structure will aid in securing canopy mount (A).
Install canopy mount (A) to box outlet. Secure with machine
screws and washers (provided with outlet box).
1
1a Box Outlet Mount Box Outlet Mount
2
A
1a 1a Building Structure Mount Building Structure Mount
1
A
AA
BB
Installation – Canopy Mount and Terminal Wiring
To Next Page
