Installation Canopy Mount and Terminal Wiring (continued)
Connect wiring from ceiling to terminal block (on side of canopy
mount) and tighten using athead screwdriver (included). For single
switch wiring an additional jumper harness component will be
needed which is seen in step 2d.
The ceiling fan must be grounded. If the ground wire for the
installation site is not present, immediately STOP installation
and consult a qualied electrician.
All wiring must be in accordance with national and local
electrical codes ANSI/NFPA70. If you are unfamiliar with
wiring or in doubt, consult a qualied electrician.
WARNING
WARNING

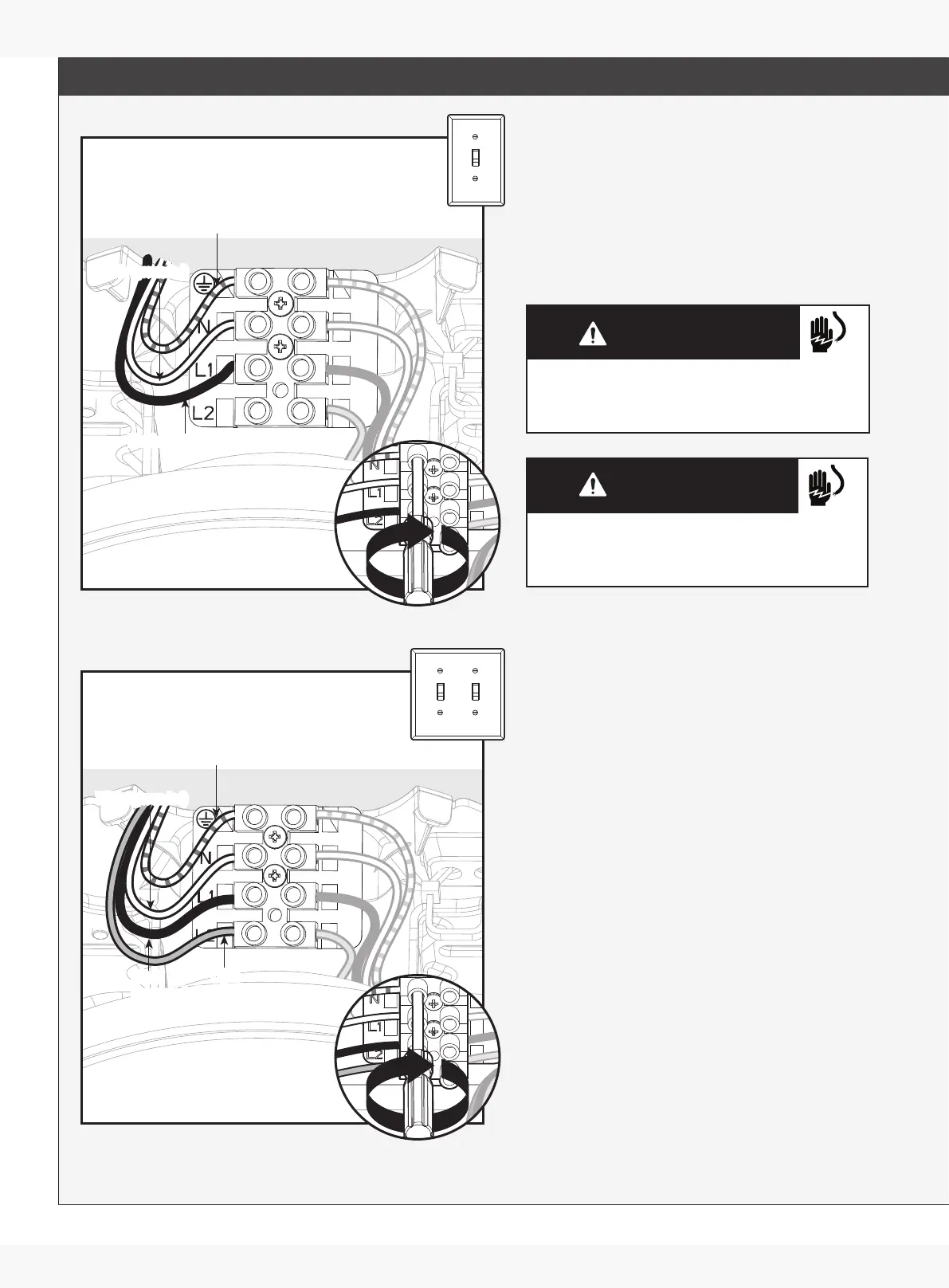

1b Single Switch Wiring Single Switch Wiring
Green, Green Yellow Stripe, or Bare (grounding)Green, Green Yellow Stripe, or Bare (grounding)
Black (ungrounded)
Black (ungrounded)
White (grounded)
White (grounded)
1b Dual Switch Wiring Dual Switch Wiring
Green, Green Yellow Stripe, or Bare (grounding)Green, Green Yellow Stripe, or Bare (grounding)
Light
(ungrounded)
Light
(ungrounded)
White (grounded)
White (grounded)
Black
(ungrounded)
Black
(ungrounded)
Connect wiring from ceiling to terminal block (on side of canopy
mount) and tighten using athead screwdriver (included).
