Hunter Ellipse 90064 - Existing Construction: Accessible from Above - Mounting; Cutting Opening and Positioning; Marking and Drilling for Screws; Inserting Screws for Rails

41722-01 09/09/2011
12
9”
9.75”
C12
D
E
5/8
1/2
5/8
1/2
C13
C14
C15
1/8" Bit
C16

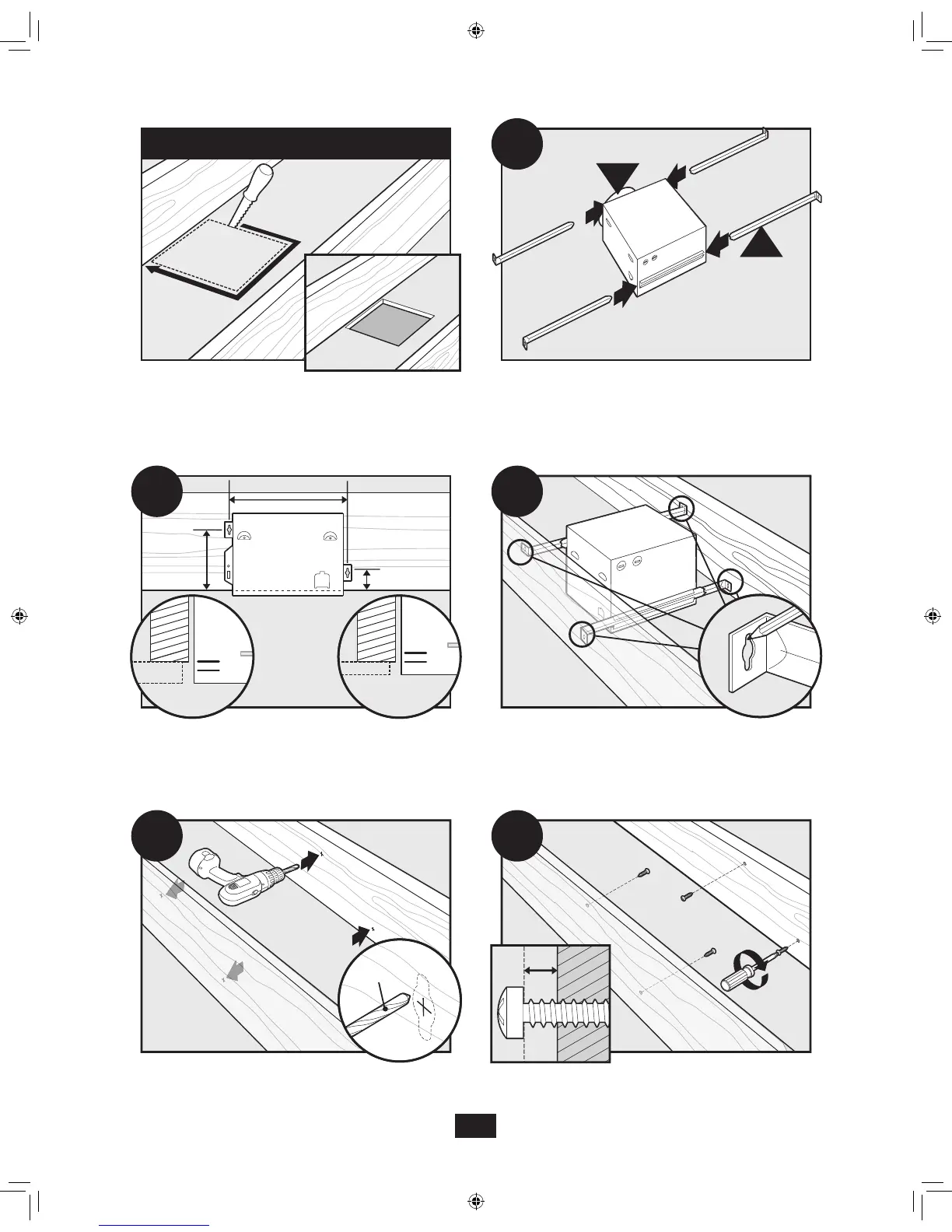

Cut out an opening for the housing. Slide the mounting rails into brackets.
Position the correct depth mark at the bottom edge of the
joist based on the thickness of your sheetrock.
Mark position of screws by using holes as a template.
Drill a hole in the center of each outline. Insert screws, leaving space between the screw head
and the joist. Screws are not provided.
