Hunter Ellipse 90064 - New Construction: Suspended Installation - Mounting; Mounting Rail Installation

41722-01 09/09/2011
8
A23
E1
Go to step
on page 18
to attach grille.
B11
D
E
5/8
1/2
5/8
1/2
B12
E
B13
1/8" Bit
B14

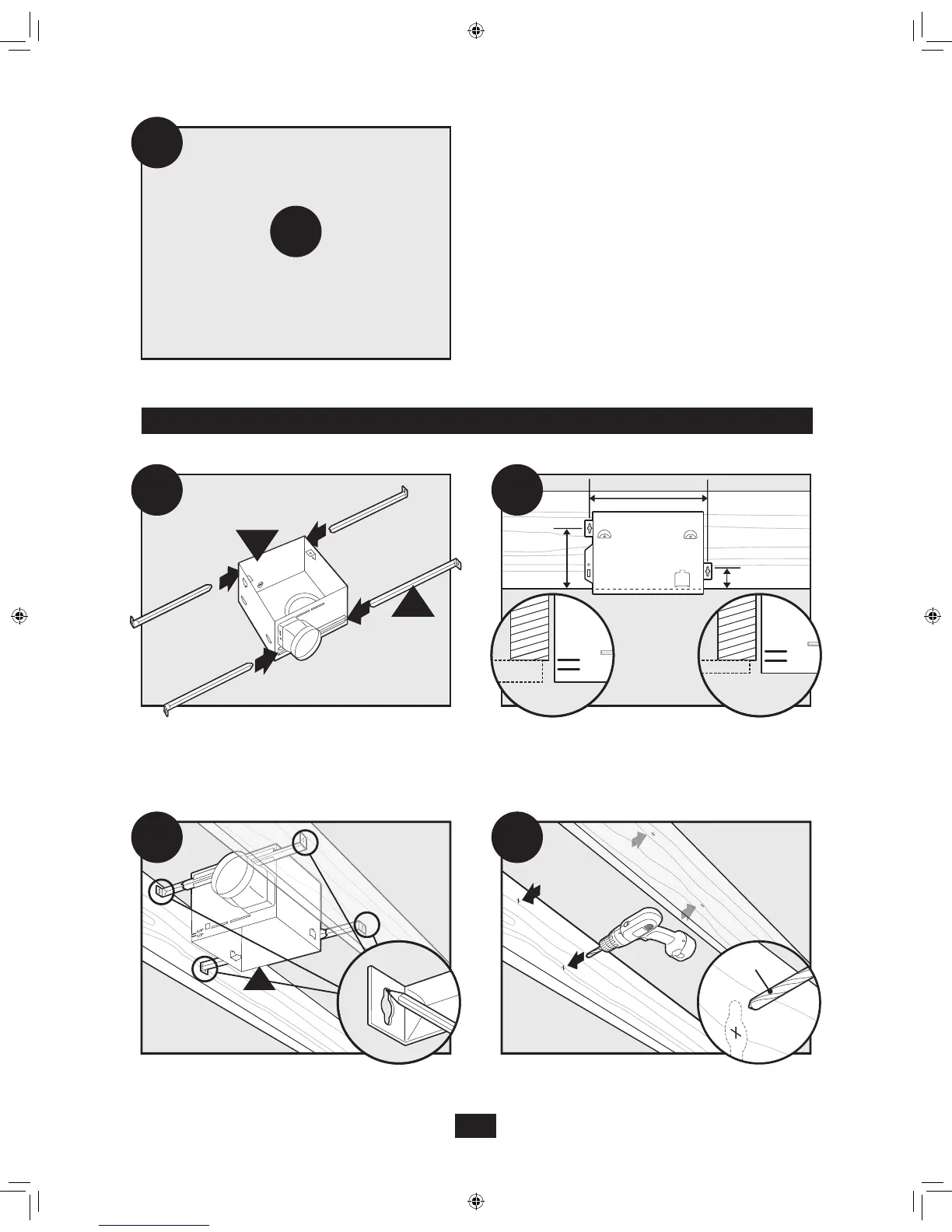

Slide the mounting rails into brackets.
Position the correct depth mark at the bottom edge of
the joist based on the thickness of your sheetrock.
Mark position of screws by using holes as a template. Drill a hole in the center of each outline.
New Construction – suspended between joists
