Hunter Ellipse 90064 - New Construction: Joist Installation Final Steps; Duct Connection and Venting; Reconnecting Motor and Securing

41722-01 09/09/2011
7
0
A17
H
A18
I
A20
A19
H
A21
ON
OFF
A22

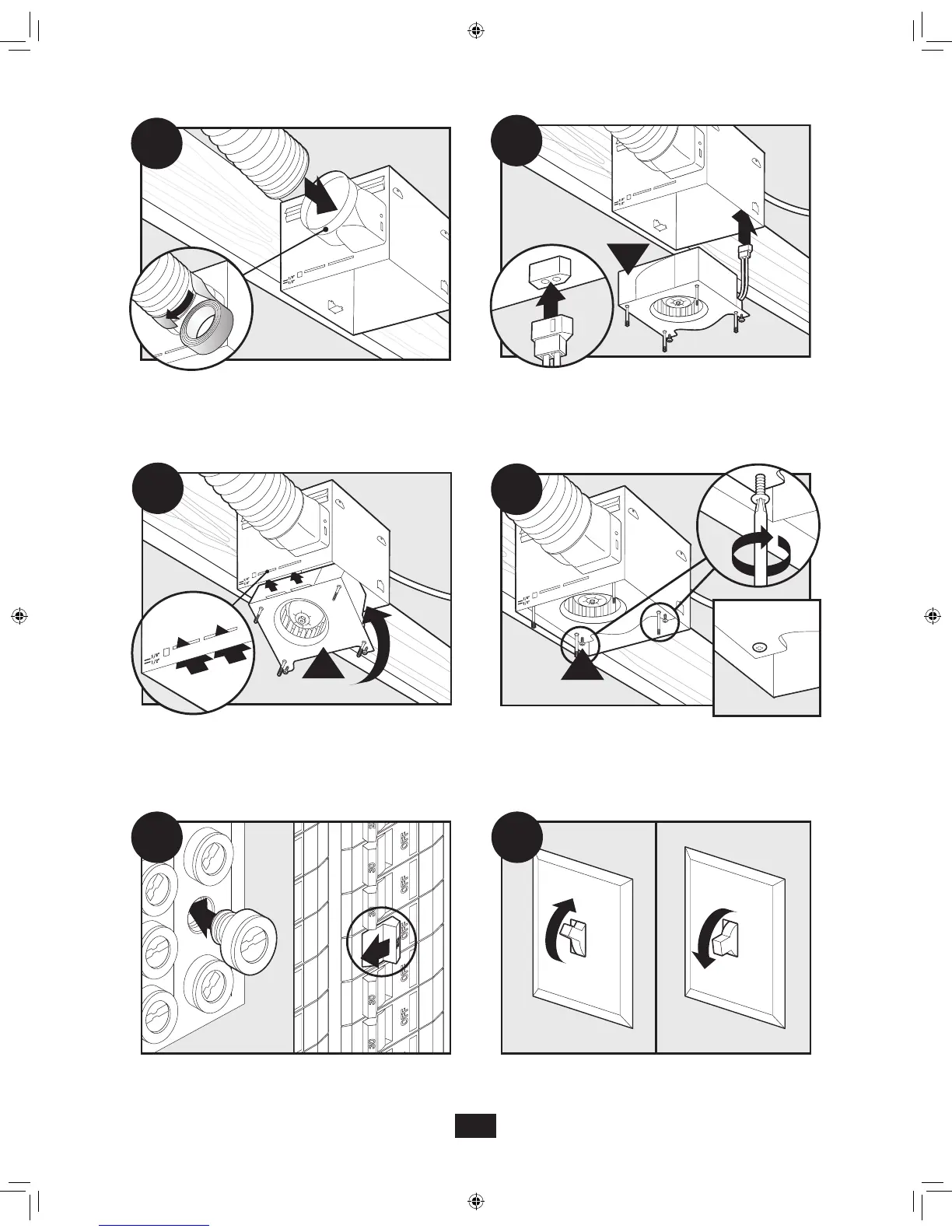

Reinstall the motor by inserting the tabs and pushing up into
position. Make sure the wires are not pinched
between the motor and the housing.
Secure the motor by tightening the 2 screws.
Test the motor. If the motor does not run,
check the plug connection.
Turn on the power source.
Connect 4” duct and vent to the outside. Tape joints.
If ducting does not t securely, an adapter may need
to be purchased.
Connect wiring from the motor to the wiring cover plate.
