41722-01 09/09/2011
14
C23
F
1
2
A
3 Pin
2 Pin
Fan Motor
Light
Light
Green
Black
Black
Red
Red
White
Black
Black
White
White
Bare Copper
Ground
C22
Night Light
Night Light
Switch 1 (AC In)
Main Switch 1 (AC In)
Switch 2 (AC In)
*Option Fan & Main Light Together
*Option
•
C24
G
C25
H
C26
H

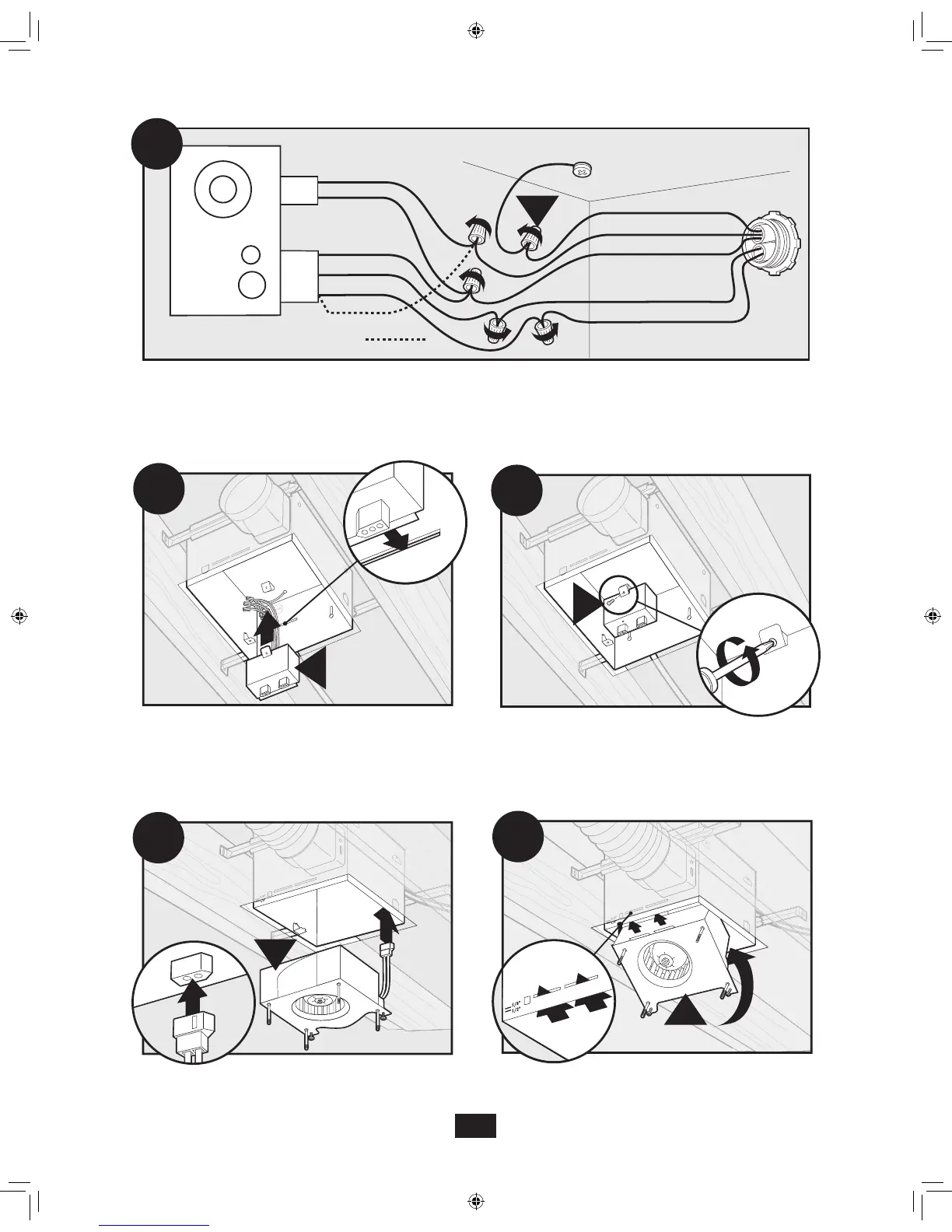

Connect wires as shown.
Install the wiring cover plate. Make sure all
wiring connections are inside the box or under
the wiring cover plate.
Tighten the wiring cover plate screw.
Reinstall the motor by inserting the tabs and pushing up into
position. Make sure the wires are not pinched
between the motor and the housing.
Connect wiring from the motor to the wiring cover plate.
To Next Page
