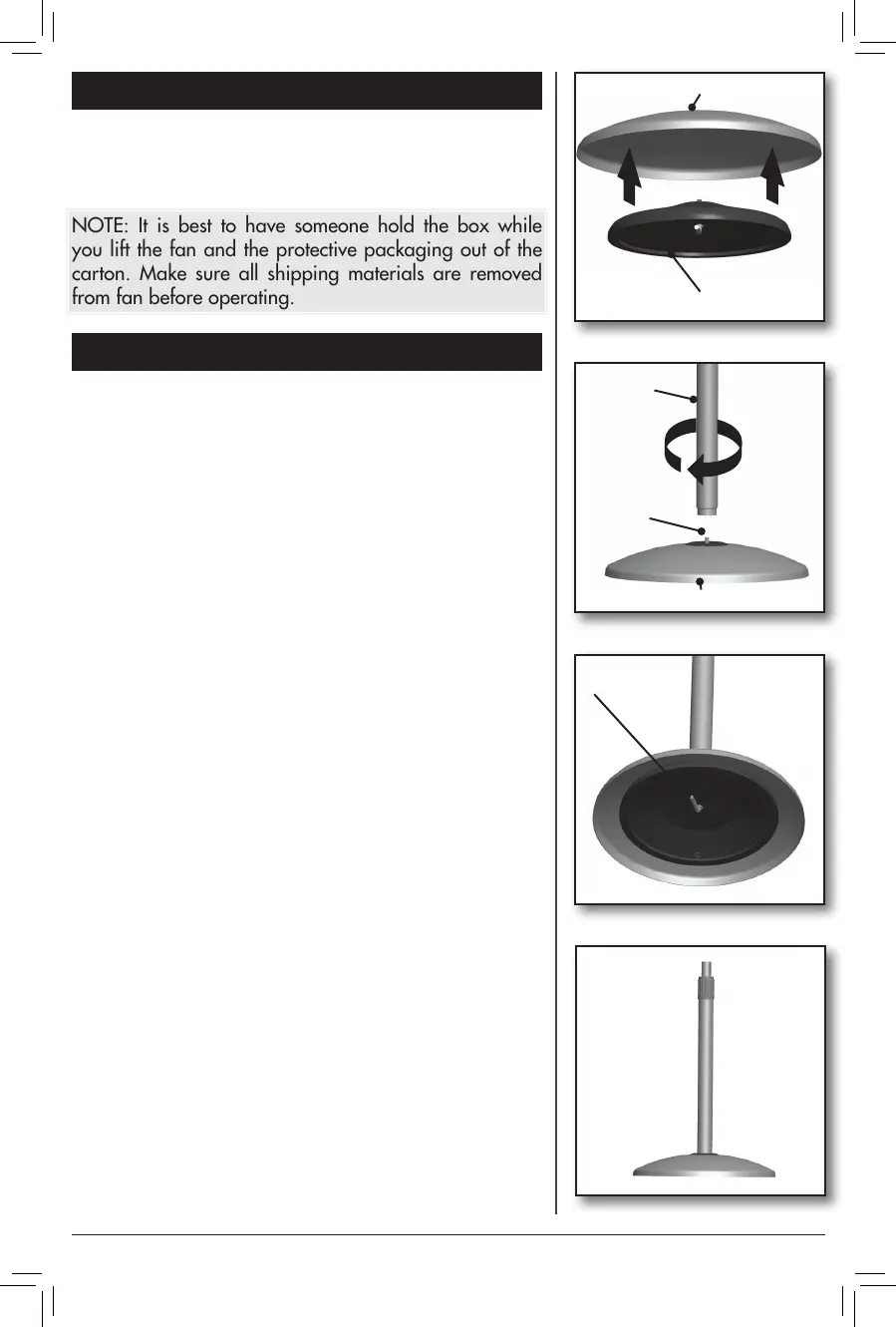

BASE ASSEMBLY
Figure 3.
Figure 4.
Figure 5.
1. Insert the Weight(1) into the Base Cover(2). Figure 3.
2. Insert the base of the Telescoping Pole(3) into the top
of the Base Cover(2) and attach to the Base Weight(1)
by turning clockwise on the Screw(4) in the center of
the Base Weight(1). Figure 4.
3. Turn the Base on it’s side and turn the handle of the
Screw(4) on the bottom of the Weight until secure.
Figure 3.
4. Tip the Base back upright. Figure 5.
Figure 6.
UNPACKING
As you unpack the fan, save the carton and packing
materials in case you want to move or ship the unit in the
future. Carefully remove all items from the box.
NOTE: It is best to have someone hold the box while
you lift the fan and the protective packaging out of the
carton. Make sure all shipping materials are removed
from fan before operating.
(1) Base Weight
(2) Base Cover
(2) Base Cover
(3) Telescope
Pole
(4) Screw
(4) Screw
